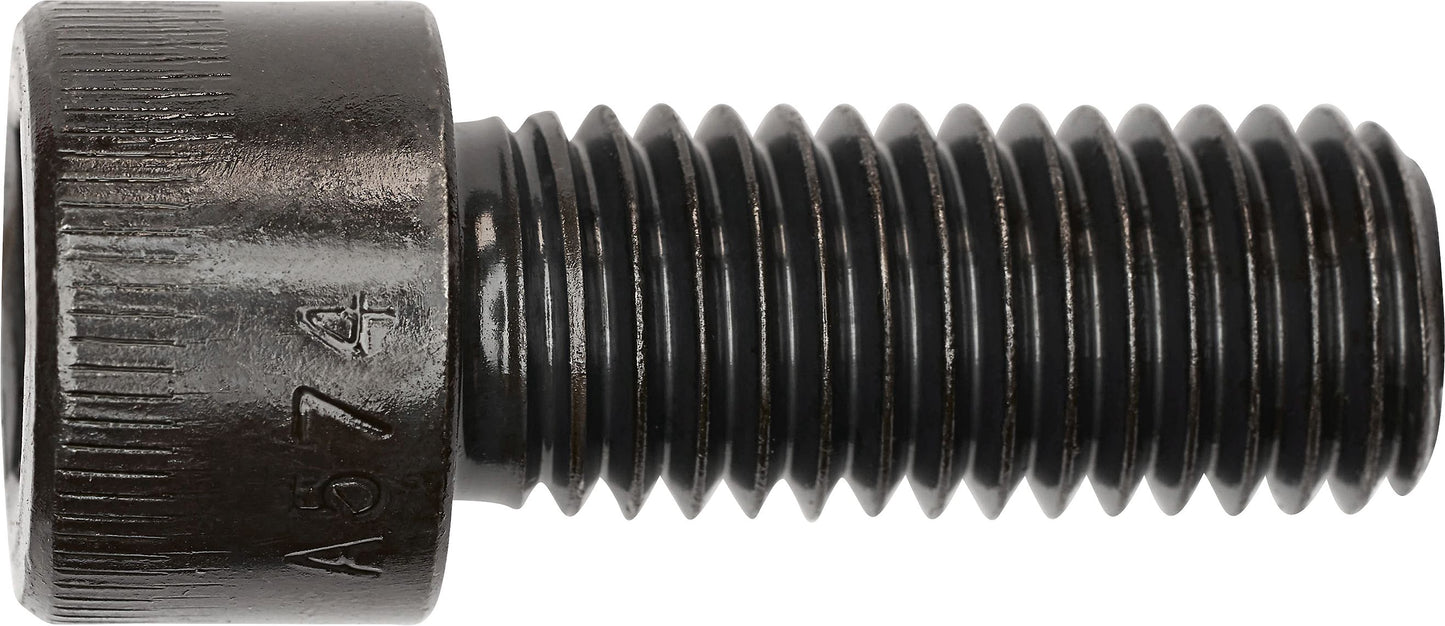

Socket Head Cap Screw Alloy Steel 5/8-11 x 1-1/2"
(Pack of
10.0)
• Full product traceability
• Diameter size rolled into the screw head for quick identification
• High-strength, heat-treated alloy steel
• Black oxide finish for corrosion protection
Premium Socket Head Cap Screws - Full traceabilty, diameter size rolled into the screw head for quick identification
• Tensile strength: 180,000 PSI (up to and including 1/2" dia.); 170,000 PSI (5/8" dia. and above)
• Conforms to ASME/ANSI B18.3 Specifications
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 4-3
Frequently Bought Together
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 1/2-13
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M12-1.75 x 30mm
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M4-0.7 x 8mm
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M16-2 x 40mm
Couldn't load pickup availability
Socket Head Cap Screw Alloy Steel 5/16-18 x 3/4"
Couldn't load pickup availability
Flat Head Socket Cap Screw Steel M5-0.8 x 12mm
Couldn't load pickup availability
Set Screw Cup Point Steel 1/4-20 x 1/4"
Couldn't load pickup availability
Product Description
• Full product traceability• Diameter size rolled into the screw head for quick identification
• High-strength, heat-treated alloy steel
• Black oxide finish for corrosion protection
Premium Socket Head Cap Screws - Full traceabilty, diameter size rolled into the screw head for quick identification
• Tensile strength: 180,000 PSI (up to and including 1/2" dia.); 170,000 PSI (5/8" dia. and above)
• Conforms to ASME/ANSI B18.3 Specifications
Technical Specifications
| Item#: | 3562 |
|---|---|
| Diameter | 5/8 " |
| Thread Pitch | 11 |
| Length | 1-1/2 " |
| Material | Alloy Steel |
| Finish | Black Oxide |
| Head Style | Socket |
| Tensile Strength | 170,000 PSI |
| Thread | Coarse |
| Type | Socket Head Cap Screw |
| Key Size | 1/2 " |
| Drive | Hex |
| Size | 5/8-11X1-1/2 |
| UNSPSC #: | 31161518 |
| TAA Compliant: | Yes |
| Weight: | 2.0 lb |
