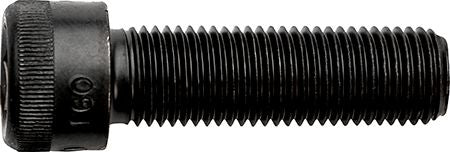

Socket Head Cap Screw, Alloy Steel, Premium Black Oxide Finish, Fine Thread, 3/8" Hex Key, 7/16-20 x 1-1/2"
(Pack of
25)
SKU:90856 Item#: 90856
• Full product traceability
• Diameter size rolled into the screw head for quick identification
• High-strength, heat-treated alloy steel
• Black oxide finish for corrosion protection
Premium Socket Head Cap Screws - Full traceabilty, diameter size rolled into the screw head for quick identification
• Tensile strength: 180,000 PSI (up to and including 1/2" dia.); 170,000 PSI (5/8" dia. and above)
• Conforms to ASME/ANSI B18.3 Specifications
Couldn't load pickup availability
Catalog page#: 4-3
Frequently Bought Together
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
12" Auto-Adjust Pliers
Couldn't load pickup availability
10" Forman's Favorite Heavy-Duty Copper & Aluminum Cable Cutter Pliers
Couldn't load pickup availability
Spinning Handmaster Driver Set 5Pc Set
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M8-1.25 x 25mm
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M6-1 x 16mm
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M5-0.8 x 12mm
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M8-1.25 x 25mm
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M6-1 x 16mm
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M5-0.8 x 12mm
Couldn't load pickup availability
Product Description
• Full product traceability• Diameter size rolled into the screw head for quick identification
• High-strength, heat-treated alloy steel
• Black oxide finish for corrosion protection
Premium Socket Head Cap Screws - Full traceabilty, diameter size rolled into the screw head for quick identification
• Tensile strength: 180,000 PSI (up to and including 1/2" dia.); 170,000 PSI (5/8" dia. and above)
• Conforms to ASME/ANSI B18.3 Specifications
Technical Specifications
| Item#: | 90856 |
|---|---|
| Diameter | 7/16 " |
| Thread Pitch | 20 |
| Length | 1-1/2 " |
| Material | Alloy Steel |
| Finish | Black Oxide |
| Head Style | Socket |
| Tensile Strength | 180,000 PSI |
| Thread | Fine |
| Type | Socket Head Cap Screw |
| Key Size | 3/8 " |
| Drive | Hex |
| Size | 7/16X1-1/2 |
| UNSPSC #: | 31161518 |
| TAA Compliant: | Yes |
| Weight: | 2.15 lb |
