Solid Die Drill Bit Carbide 1/8"
(Pack of
1.0)
• Produces chips without generating excessive heat
• Accurately sized holes are produced without annealing or softening the workpiece
• Reamer-type finishes are easily produced
• Two straight flutes
• Made in USA
• Designed to drill hardened steel in the Rc 50 – 65 range
• Both a production drill and a salvage or reclaim tool
• Drill through glass, all series of stainless steel, nickel alloys, ceramics or weldments
• Drill out broken drills and taps

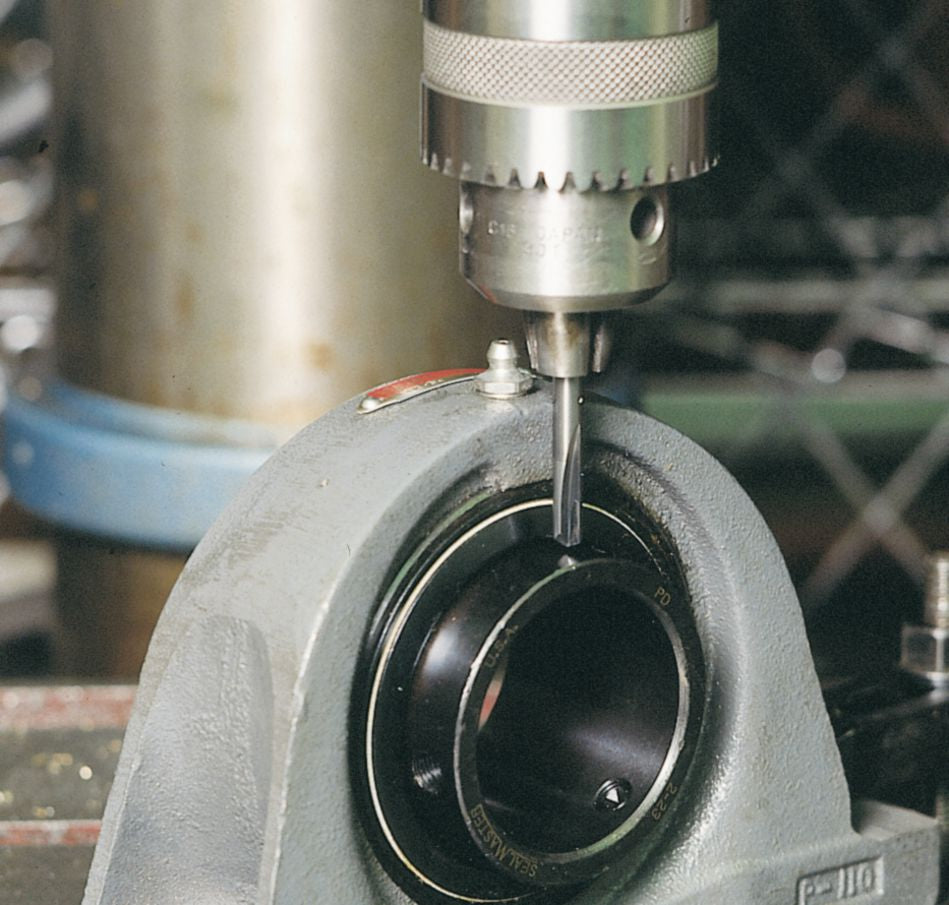

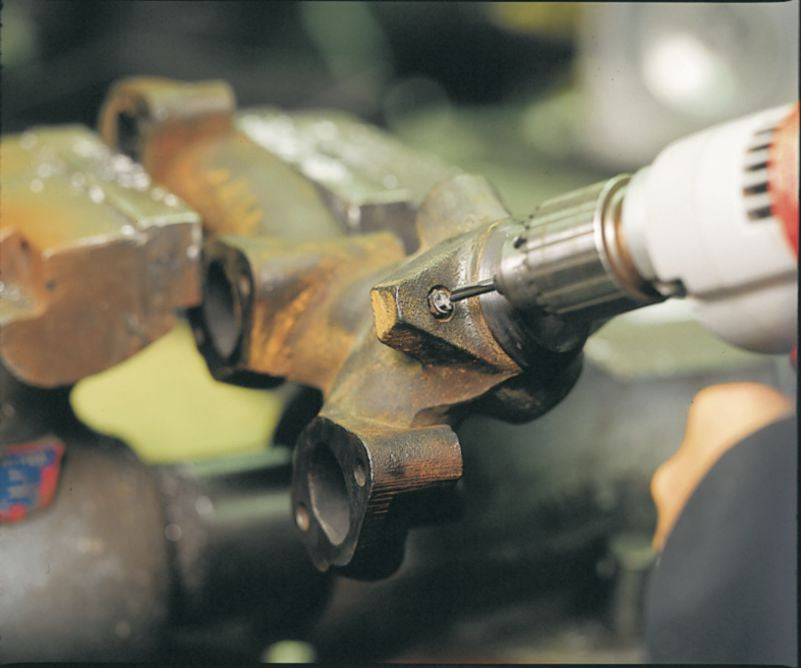

• Can be used in a drill press or portable power drill
NOTE: The drill is intended to be run at 60 – 100 SFM. Carbide drills are normally run at double the speed recommended for high-speed steel drills with a slightly lower feed rate. Proper drilling speed and the appropriate feed rate must be calculated for the material being drilled.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog Page#: 11-22
Frequently Bought Together
Solid Drill Bit Set Carbide 1/8 to 3/8"
Couldn't load pickup availability
Drill Bit Carbide 23/64"
Couldn't load pickup availability
Drill Bit Carbide 7/32"
Couldn't load pickup availability
Premium Grinding Wheel 4-1/2"
Couldn't load pickup availability
Reinforced Mini Cut-Off Wheel 3"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 11/64"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 1/8"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 25/64"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 19/64"
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
3/8" Fractional Drill Bit, Jobber Length, W/Flats
Couldn't load pickup availability
Cut-Off Wheel for Right Angle Grinder 4-1/2"
Couldn't load pickup availability
Twist-On Surface Conditioning Disc 3" Maroon
Couldn't load pickup availability
Product Description
• Produces chips without generating excessive heat• Accurately sized holes are produced without annealing or softening the workpiece
• Reamer-type finishes are easily produced
• Two straight flutes
• Made in USA
• Designed to drill hardened steel in the Rc 50 – 65 range
• Both a production drill and a salvage or reclaim tool
• Drill through glass, all series of stainless steel, nickel alloys, ceramics or weldments
• Drill out broken drills and taps
• Can be used in a drill press or portable power drill
NOTE: The drill is intended to be run at 60 – 100 SFM. Carbide drills are normally run at double the speed recommended for high-speed steel drills with a slightly lower feed rate. Proper drilling speed and the appropriate feed rate must be calculated for the material being drilled.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 56262 |
|---|---|
| Drill Type | Fractional |
| Type | Drill Bit |
| Material | Carbide |
| Finish | Bright |
| Diameter | 1/8 " |
| Decimal Equivalent | 0.1250 " |
| Flutes | 2 |
| Flute Length | 5/8 " |
| Shank | Straight |
| Material Thickness | 9/16 " |
| Overall Length | 1-1/2 " |
| SAE Code | TD7DSX 0.1250 S1Z33 / 00.63 - 01.50 |
| UNSPSC #: | 23241605 |
| TAA Compliant: | Yes |
| Weight: | 0.01 lb |
