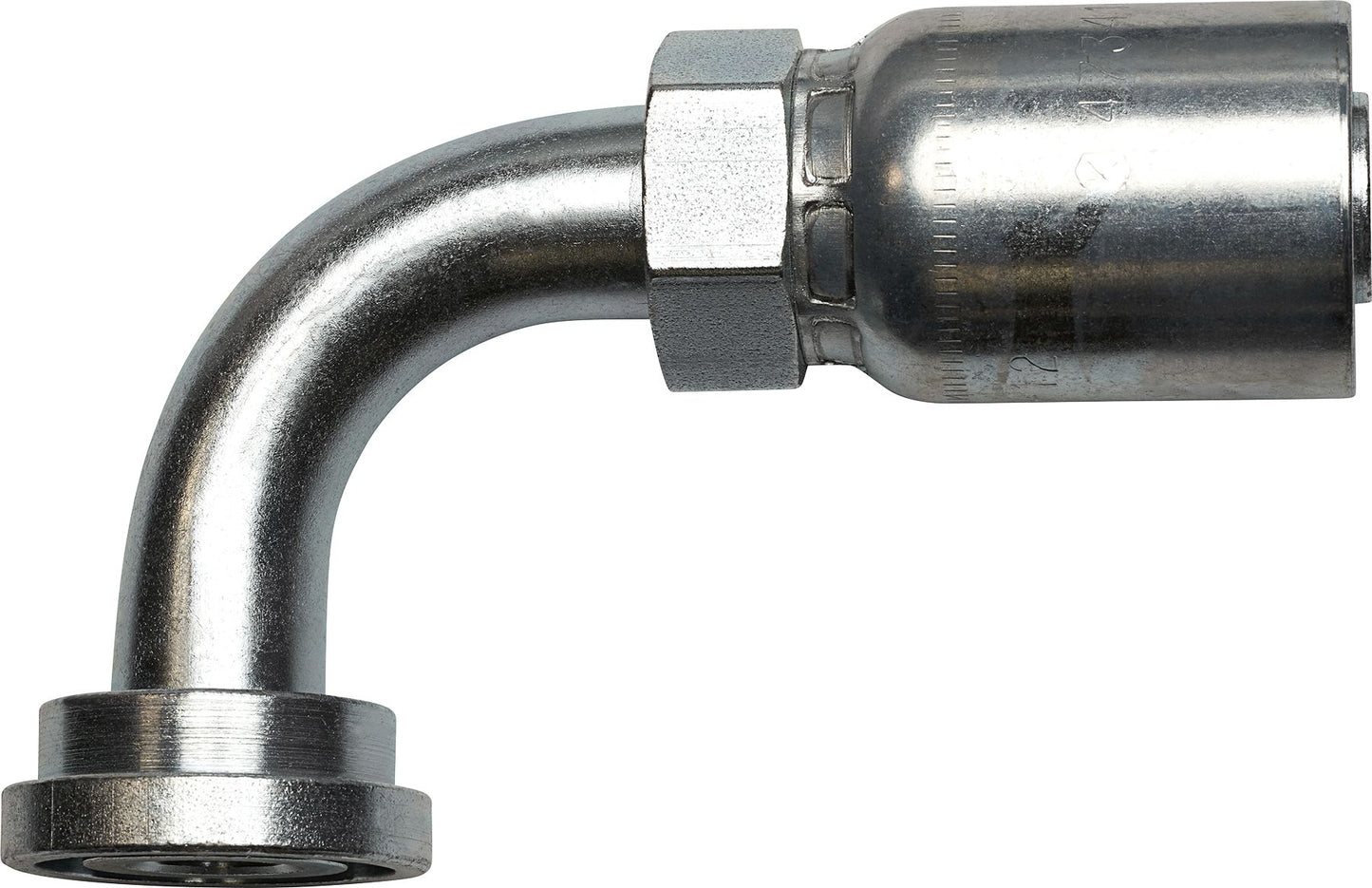

Split Flange Split Flange Code 61 90° 3/4 (-12)x 1.75 (-16) Crimp-on End Fitting
(Pack of
1)
SKU:1562252 Item#: 1562252
SAE Code 61 Flange Kits sold separately
These fittings are designed to be crimped with Kurt 100R2S and 100R16S hoses
Frequently Bought Together
MityLite™ 1910 LED Flashlight 1x AAA 3.6" Black
Item#: 1328127
Couldn't load pickup availability
MityLite™ 1910 LED Flashlight 1x AAA 3.6" Black
Item#: 1328127
Couldn't load pickup availability
MityLite™ 1910 LED Flashlight 1x AAA 3.6" Black
Item#: 1328127
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Item#: 1368141
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Item#: 1368140
Couldn't load pickup availability
High Solids Paints Gloss Black
Item#: 1509224
Couldn't load pickup availability
Product Description
SAE Code 61 Flange Kits sold separatelyThese fittings are designed to be crimped with Kurt 100R2S and 100R16S hoses
Technical Specifications
| Item#: | 1562252 |
|---|---|
| Manufacturer Model #: | C6190-12-16 |
| Attachment Method | Crimp-on |
| Fitting Dimension A (Hose) | 3/4 (-12) " |
| Dash Size | -12 |
| Gender | Split Flange |
| Fitting End Style | Split Flange Code 61 |
| Fitting End Type | Code 61 |
| Fitting Angle | 90 Degrees |
| Fitting Dimension B (Working End) | 1.75 (-16) |
| Flange Diameter | 1.75 |
| Flange Size | 1 |
| Drop Length | Block |
| Size | (-12)X(-16) |
| Hex Size | 0.315 |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
