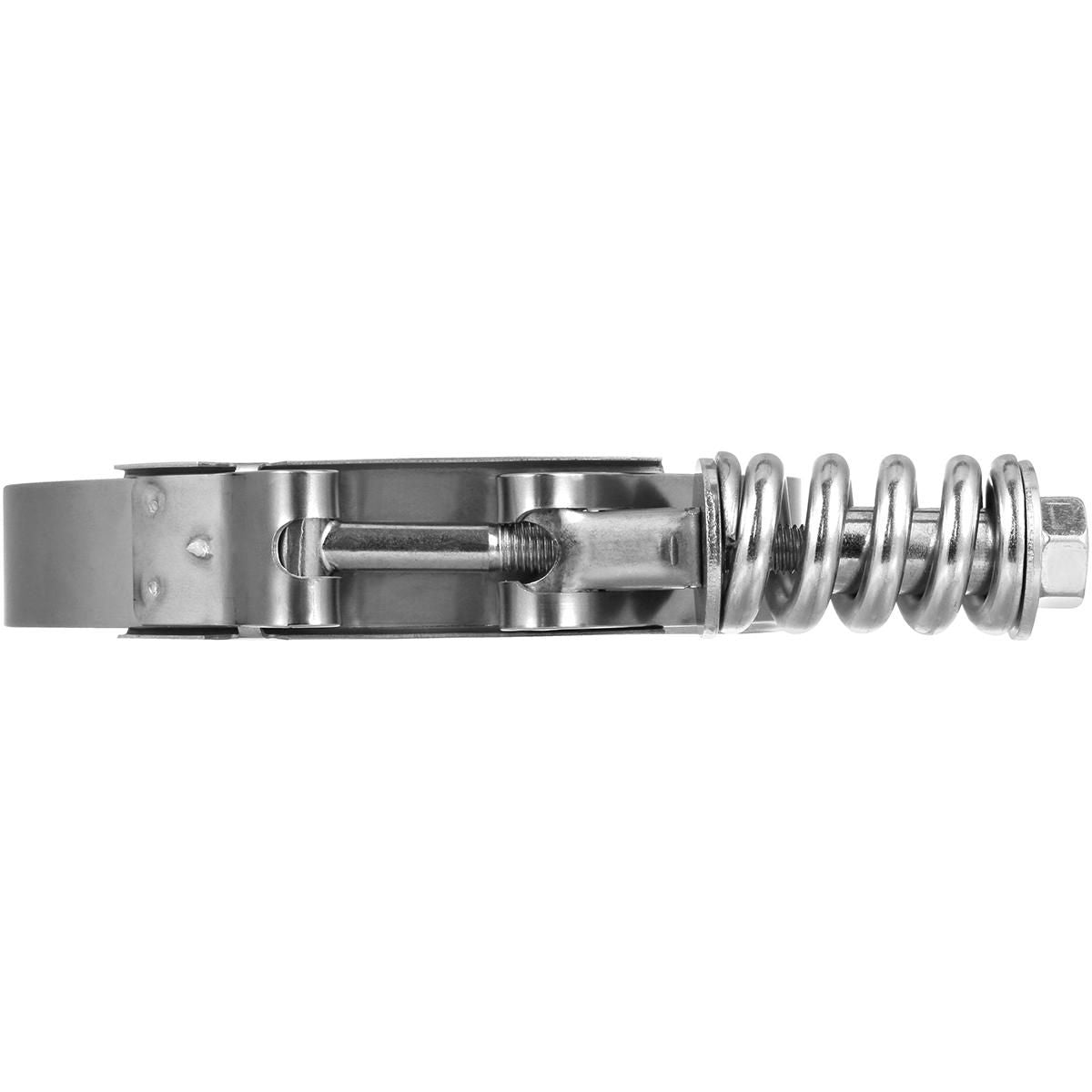

Constant Tension Spring Loaded T-Bolt Hose Clamp, Stainless Steel, Diameter: 2.75 - 3.06 in
(Pack of 5)

Item#: 1609069

Lawson

• 304 Series stainless band, bridge, cap, wrapper and housing
• Spring and washer with plated carbon steel t-bolt, nut, spring and washer
• Heavy-duty spring for constant-tension
• Special application sizes for charge-air-after cooled engine systems - CAC Hose
• 3/4" x 0.031" band for superior coverage
• Meets SAE Specification J1508 Type SLTB
• Recommended torque: 60 in./lbs.
• For industrial, automotive and marine applications

Read More
Check Availability

California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov

Catalog page#: 22-5

Frequently Bought Together


Super 77 Hose Clamp SS 7/16 to 1 In"

Item#: 85495

Super 77 Hose Clamp SS 7/8 to 1-3/4"

Item#: 85499

Silicone Heater/Coolant Hose Clamp 13/16 to 1-3/4"

Item#: 88721

Silicone Heater/Coolant Hose Clamp 11/16 to 1-1/4"

Item#: 88719

DOT Connector Male Brass 1/4 x 1/8-27

Item#: 91785

Hose Clamp 304 SS 11/16 to 1-1/2"

Item#: 86727

Super 77 Hose Clamp SS 7/8 to 1-3/4"

Item#: 85499

Silicone Heater/Coolant Hose Clamp 13/16 to 1-3/4"

Item#: 88721

Non-Perforated Clamp 316 SS #8 5/8 to 15/16"

Item#: 58834

Pipe Street Elbow Brass 90° 3/8-18 x 3/8-18

Item#: 5317

DOT Swivel Elbow Male 360° Brass 3/8 x 1/4-18

Item#: 27205

DOT Elbow Male Nylon 1/4 x 1/8-27

Item#: 91794

USS Flat Washer Thru-Hardened Steel 3/8"

Item#: FA88447

SAE Flat Washer Thru-Hardened Steel 5/16"

Item#: 88436

Self-Drilling Screw Hex Head 1/4-14 x 1"

Item#: 2539

Product Description

• 304 Series stainless band, bridge, cap, wrapper and housing
• Spring and washer with plated carbon steel t-bolt, nut, spring and washer
• Heavy-duty spring for constant-tension
• Special application sizes for charge-air-after cooled engine systems - CAC Hose
• 3/4" x 0.031" band for superior coverage
• Meets SAE Specification J1508 Type SLTB
• Recommended torque: 60 in./lbs.
• For industrial, automotive and marine applications

Technical Specifications

Item#: 1609069
Category Spring Loaded T-Bolt Hose Clamp
Applications Industrial, Automotive, Fleet
SAE Size 60
Material 300 Series Stainless Steel Band and Plated Steel T-Bolt
Size 2-3/4-3-1/16 "
Minimum Diameter 2-3/4 "
Maximum Diameter 3-1/16 "
Width 3/4 "
Thickness 0.031 "
UNSPSC #: 31162900
TAA Compliant: No
Weight: 0.382 lb
