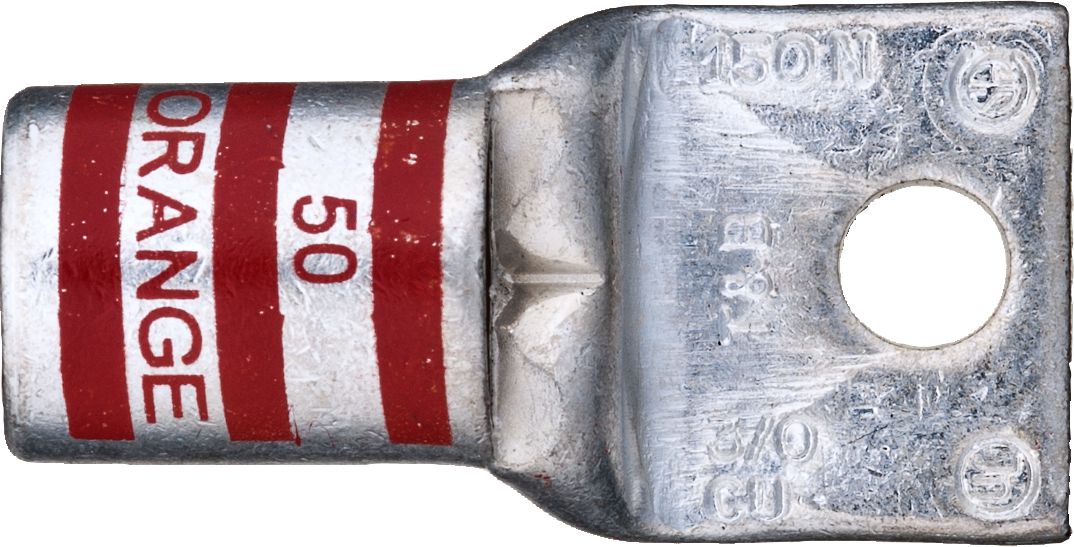

Standard One-Hole Lug, 3/0 AWG, Orange, 1/4" Stud Size
(Pack of
6)
• Extruded tubular copper for extremely high electrical conductivity
• Color-coded bands designate the number and location of crimps
• Color-coded connectors and dies insure proper match of connector to corresponding compression tool die
• Seamless connectors are electro-tin-plated for excellent resistance to corrosion
• Instructions included with all connectors
• 600V
NOTE: Use Lawson’s Tru-Crimp® installation tools to assure maximum electrical conductivity and to retain the UL listing of each connector.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 17-76
Frequently Bought Together
MINI Fuse 30A Green
Couldn't load pickup availability
ATO/ATC Fuse 10A Red
Couldn't load pickup availability
MINI Fuse 10A Red
Couldn't load pickup availability
Standard One-Hole Lug 4/0 AWG Purple
Couldn't load pickup availability
Motor Pigtail Connector 12 to 10 AWG
Couldn't load pickup availability
Long Barrel One-Hole Lug 2 AWG Brown
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Male Quick Slide Terminal 22 to 18 AWG Clear
Couldn't load pickup availability
Female Quick Slide Terminal 22 to 18 AWG Red
Couldn't load pickup availability
Ring Tongue Terminal 12 to 10 AWG Yellow
Couldn't load pickup availability
Product Description
• Extruded tubular copper for extremely high electrical conductivity• Color-coded bands designate the number and location of crimps
• Color-coded connectors and dies insure proper match of connector to corresponding compression tool die
• Seamless connectors are electro-tin-plated for excellent resistance to corrosion
• Instructions included with all connectors
• 600V
NOTE: Use Lawson’s Tru-Crimp® installation tools to assure maximum electrical conductivity and to retain the UL listing of each connector.
Technical Specifications
| Item#: | 17079 |
|---|---|
| Type | One-Hole Lug |
| Wire Gauge | 3/0 AWG |
| Size Navy | 150 |
| Size Weld | 2/0 |
| Stud Bolt Size NEMA Drilling | 1/4 " |
| Color | Orange |
| Installation Tool 86473 (No. of Crimps Required) | 2 |
| Installation Tool 89555 (No. of Crimps Required) | 2 |
| Style | Color-Coded |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.44 lb |
