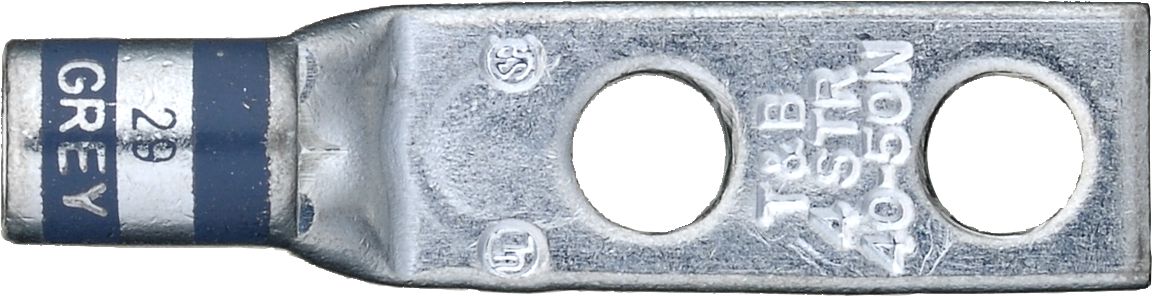

Standard Two-Hole Lug 4 AWG Gray
(Pack of
12.0)
• Extruded tubular copper for extremely high electrical conductivity
• Color-coded bands designate the number and location of crimps
• Color-coded connectors and dies insure proper match of connector to corresponding compression tool die
• Seamless connectors are electro-tin-plated for excellent resistance to corrosion
• Instructions included with all connectors
• 600V
NOTE: Use Lawson’s Tru-Crimp® installation tools to assure maximum electrical conductivity and to retain the UL listing of each connector.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Cable Tie 13.38" Black
Couldn't load pickup availability
Cable Tie Screw Mount #10 Screw Black
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 8 to 1 AWG Black
Couldn't load pickup availability
Standard One-Hole Lug 8 AWG Red
Couldn't load pickup availability
Standard Barrel 2-Way Connector 3/0 AWG
Couldn't load pickup availability
Long Barrel Compression 2-Way Connector 4 AWG
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
Male Quick Slide Terminal 22 to 18 AWG Clear
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Product Description
• Extruded tubular copper for extremely high electrical conductivity• Color-coded bands designate the number and location of crimps
• Color-coded connectors and dies insure proper match of connector to corresponding compression tool die
• Seamless connectors are electro-tin-plated for excellent resistance to corrosion
• Instructions included with all connectors
• 600V
NOTE: Use Lawson’s Tru-Crimp® installation tools to assure maximum electrical conductivity and to retain the UL listing of each connector.
Technical Specifications
| Item#: | 89515 |
|---|---|
| Type | Two-Hole Lug |
| Wire Gauge | 4 AWG |
| Size Navy | 40-50 |
| Size Weld | 4 |
| Stud Bolt Size NEMA Drilling | 1/4 " |
| Color | Gray |
| Installation Tool 86473 (No. of Crimps Required) | 1 |
| Installation Tool 89555 (No. of Crimps Required) | 1 |
| Style | Color-Coded |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.37 lb |
