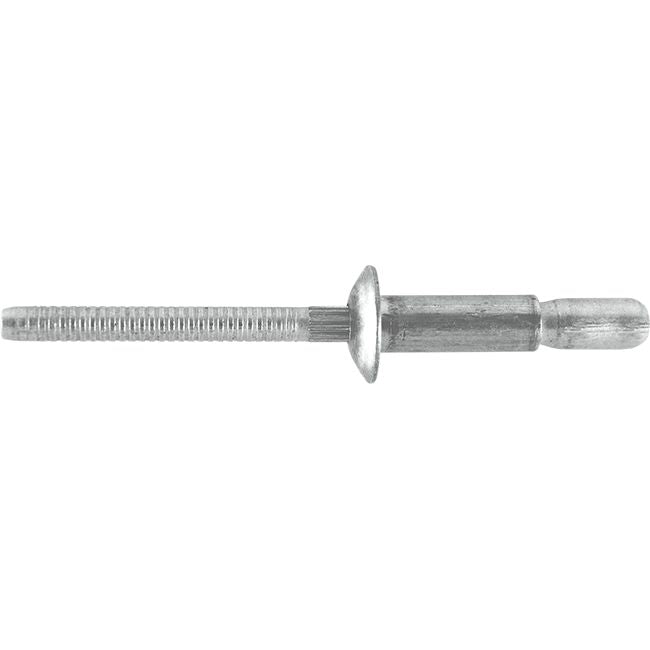

Structural Rivet, Internal Lock, Dome Head, Aluminum, 3/16" Diameter, 0.062 to 0.437" Grip Range, 0.572" Body Length
(Pack of
50)
Dome Head
• The mandrel is retained within the shear plane providing high strength under shear loads
• The internal lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• Standard nosepieces can be used for installation
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 7-16
Frequently Bought Together
Hex Nut Grade 8 Steel 1/2-13
Couldn't load pickup availability
Hex Nut Grade 8 Steel 1/4-20
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Open End Rivet Dome Head Stainless Steel 1/8"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/4"
Couldn't load pickup availability
Open End Rivet Large Flange Head Steel 3/16"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Tigerbolt® Structural Rivet External Lock 3/16"
Couldn't load pickup availability
Tigerbolt® Structural Rivet External Lock 1/4"
Couldn't load pickup availability
Structural Rivet Internal Lock Steel 3/16"
Couldn't load pickup availability
Product Description
Dome Head• The mandrel is retained within the shear plane providing high strength under shear loads
• The internal lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• Standard nosepieces can be used for installation
Technical Specifications
| Item#: | 1543638 |
|---|---|
| Type | Structural – Internal Lock |
| Head Style | Dome Head |
| Material Body/Mandrel | Aluminum/Aluminum |
| Diameter | 3/16 " |
| Grip Range | 0.062 – 0.437 " |
| Hole Size | 0.191 – 0.201 " |
| Drill Size | #10 |
| Head Diameter | 0.385 " |
| Head Height | 0.085 " |
| Body Length | 0.572 " |
| Shear Strength | 550 lb |
| Tensile Strength | 450 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.17 lb |
