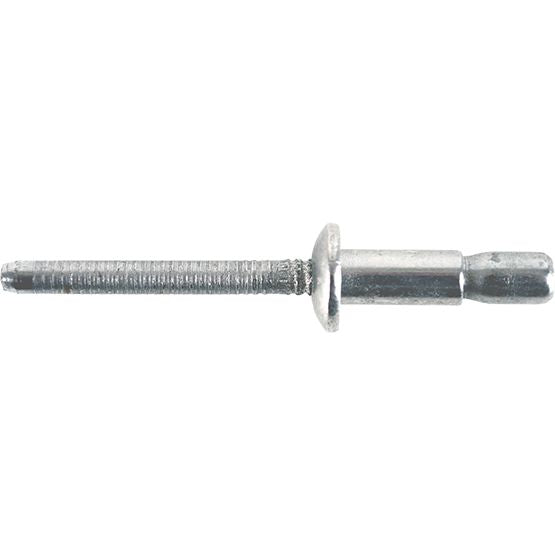

Structural Rivet, Internal Lock, Dome Head, Stainless Steel, 3/16" Diameter, 0.062 to 0.437" Grip Range, 0.572" Body Length
(Pack of
50)
SKU:1543643 Item#: 1543643
Dome Head
• The mandrel is retained within the shear plane providing high strength under shear loads
• The internal lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• Standard nosepieces can be used for installation
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 7-18
Frequently Bought Together
Self-Drilling Screw Hex Head 1/4-14 x 3/4"
Couldn't load pickup availability
USS Flat Washer Low Carbon Steel 5/16"
Couldn't load pickup availability
Backup Washer Round Steel 3/16" Hole
Couldn't load pickup availability
Open End Rivet Dome Head Steel 3/32"
Couldn't load pickup availability
Qwik Stik® Electrolyte Powder Mix Grape
Couldn't load pickup availability
Alu-Master 8-Way Torpedo Level
Couldn't load pickup availability
Structural Rivet Internal Lock Steel 1/4"
Couldn't load pickup availability
StemLock® Rear-Flange Structural Rivet Steel 1/4"
Couldn't load pickup availability
Product Description
Dome Head• The mandrel is retained within the shear plane providing high strength under shear loads
• The internal lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• Standard nosepieces can be used for installation
Technical Specifications
| Item#: | 1543643 |
|---|---|
| Type | Structural – Internal Lock |
| Head Style | Dome Head |
| Material Body / Mandrel | Stainless Steel/Stainless Steel |
| Diameter | 3/16 " |
| Grip Range | 0.062 – 0.437 " |
| Hole Size | 0.194 – 0.204 " |
| Drill Size | #10 |
| Head Diameter | 0.385 " |
| Head Height | 0.090 " |
| Body Length | 0.572 " |
| Shear Strength | 1,300 lb |
| Tensile Strength | 1,000 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.505 lb |
