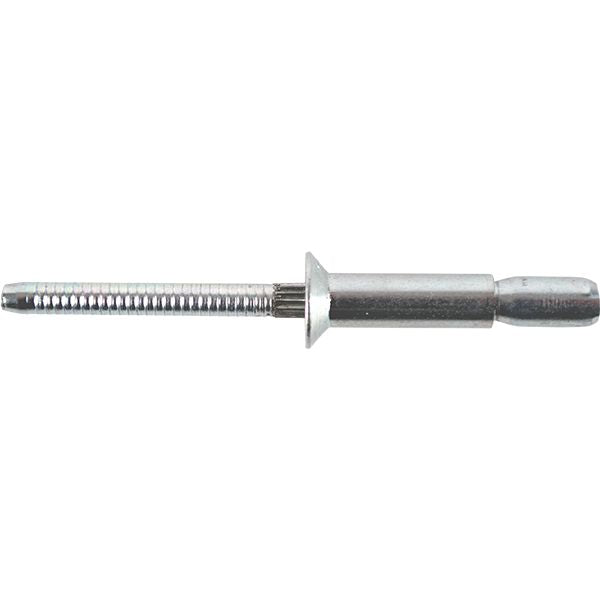

Structural Rivet, Internal Lock, 100° Countersunk Head, Steel, 3/16" Diameter, 0.129 to 0.514" Grip Range, 0.669" Body Length
(Pack of
50)
100° Countersunk Head
• The mandrel is retained within the shear plane providing high strength under shear loads
• The internal lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in the manufacturing or repair of truck bodies
• Ideal for applications where a flush appearance is required
• Standard nosepieces can be used to install Internal Locking Structural Rivets
