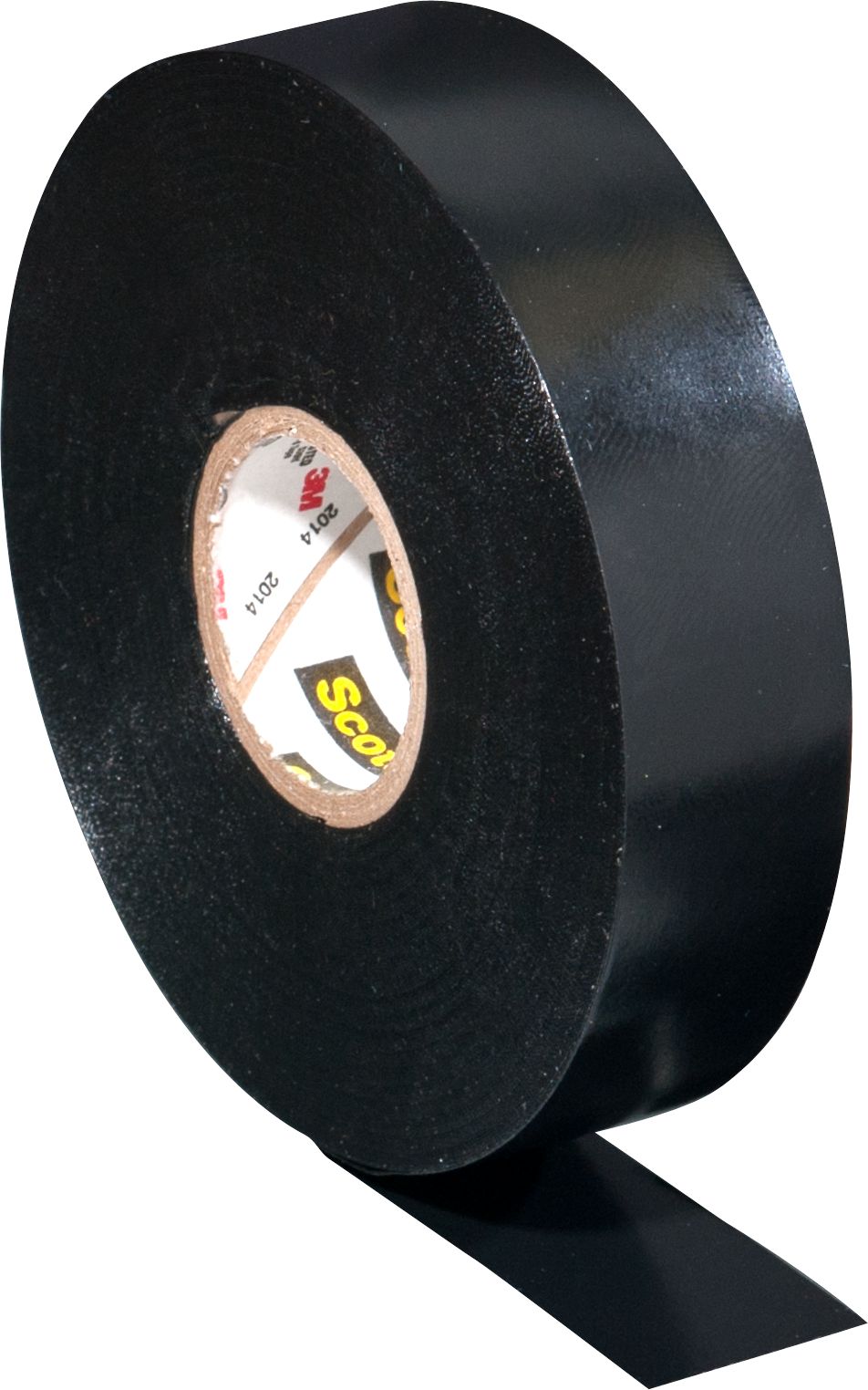

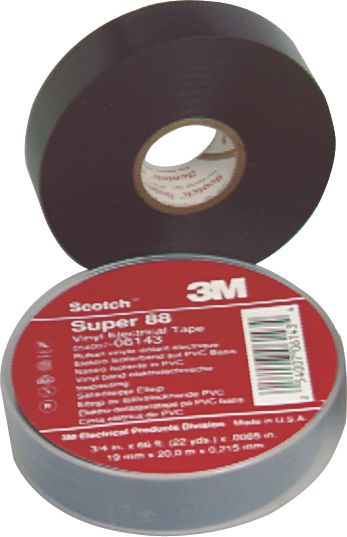

Super 88 Series Vinyl Electrical Tape, Black, 3/4" Width, 66' Length, 250% Elongation, 0 to 220°F Temperature Rating
(Pack of 1)

Item#: 54519

3M™

Protect and insulate your electrical work with our electrical tape. This black vinyl tape is ideal for all wire and cable splices rated up to 600 volts and 221°F (105°C). Perfect for demanding electrical maintenance and repair jobs in automotive, communications and manufacturing industries. Turn to this professional-grade tape preferred by electricians.
• 600V
• Flame-retardant
• Tested in accordance with UL, ASTM and CSA standards
• 3/4" x 60'
• 7 mil thick (except 54519, which is 8 mil)

Read More
Check Availability

Catalog page#: 17-40

Frequently Bought Together

ATO/ATC Fuse 10A Red, ATO/ATC Fuse with Element Indicator, 10 Amps, Red

ATO/ATC Fuse 10A Red

Item#: 83027
MINI Fuse 10A Red, MINI Fuse, 10 Amps, 32 Volts DC, Red

MINI Fuse 10A Red

Item#: 95702
MINI Fuse 20A Yellow, MINI Fuse, 20 Amps, 32 Volts DC, Yellow

MINI Fuse 20A Yellow

Item#: 95704
Vision Pro Super Illuminator Work Light

Vision Pro Super

Item#: DY21061040
USS Flat Washer Thru-Hardened Steel 3/8

USS Flat Washer Thru-Hardened Steel 3/8"

Item#: FA88447
PTO Pin Lock 3/8 x 2-1/2

PTO Pin Lock 1/4 x 2-1/2"

Item#: 64348
Vinyl Electrical Tape Green 3/4

Vinyl Electrical Tape Green 3/4" x 66'

Item#: 29417
Super 33 Vinyl Electrical Tape Black 3/4

Super 33 Vinyl Electrical Tape Black 3/4" x 20'

Item#: 1432052
Cold Shrink/Fusion Tape Black 1

Cold Shrink/Fusion Tape Black 1" x 10'

Item#: 93352
Heat Shrink Tubing 22 to 18 AWG Red, Heat Shrink Tubing, 22 to 18 AWG, Red, 6

Heat Shrink Tubing 22 to 18 AWG Red

Item#: 56854
Vinyl Electrical Tape Black 3/4

Vinyl Electrical Tape Black 3/4" x 60'

Item#: 9007
Tru-Shrink Heat Shrink Tubing 18 to 16 AWG Black, Tru-Shrink Heat Shrink Tubing, 18 to 16 AWG, Black, 3/16

Tru-Shrink Heat Shrink Tubing 16 to 14 AWG Black

Item#: 61657

Product Description

Protect and insulate your electrical work with our electrical tape. This black vinyl tape is ideal for all wire and cable splices rated up to 600 volts and 221°F (105°C). Perfect for demanding electrical maintenance and repair jobs in automotive, communications and manufacturing industries. Turn to this professional-grade tape preferred by electricians.
• 600V
• Flame-retardant
• Tested in accordance with UL, ASTM and CSA standards
• 3/4" x 60'
• 7 mil thick (except 54519, which is 8 mil)

Technical Specifications

Item#: 54519
Type Individual Roll
Style Vinyl Electrical Tape
Color Black
Dielectric Strength 1,176 V/mm
Length 66 ft
Width 3/4 "
Thickness 8 mil
Temperature Range 0 to 220 °F
Celcius Temperature Range -18 to 105 °C
Elongation 250 %
Adhesion to Steel 25 in. oz.
Adhesion to Backing 25 in. oz.
Breaking Strength 20 in·lbf
Voltage Rating 600 V
Approvals UL, CSA, ASTM
Description 3M Super 88
UNSPSC #: 31201502
TAA Compliant: Yes
Weight: 0.31 lb
