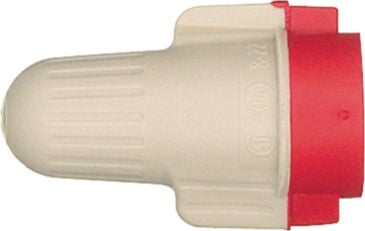

T/R Plus Wire Connector 22 to 8 AWG, Tan/Red Plus Wire Connector, Wing Style, 22 to 8 AWG, 1/2
T/R Plus Wire Connector 22 to 8 AWG, Tan/Red Plus Wire Connector, Wing Style, 22 to 8 AWG, 1/2

Tan/Red Plus Wire Connector, Wing Style, 22 to 8 AWG, 1/2" Strip Length, 600/1000 Volts
(Pack of 200)

Item#: 1145957

Lawson Products

• Tan/Red versatile connector allows connector to be used in place of yellow, tan and red connectors in most applications
• 22-8 AWG
• Holds from two 18 Ga. up to five 12 Ga. wires for most common applications
• Compact design for more room in tight applications
• Torque wing design provides a comfortable, secure grip for fast installation and easy back-off
• 1/2" strip length
• Rated at 600V maximum for building wire; 1,000V maximum for signs and lighting fixtures

Read More
Check Availability

Catalog page#: 17-65

Frequently Bought Together

Heat Shrink Tubing 18 to 12 AWG Black, Heat Shrink Tubing, 18 to 12 AWG, Black, 6

Heat Shrink Tubing 18 to 12 AWG Black

Item#: 51880
Cable Tie 14.19

Cable Tie 7.31" Black

Item#: 85487
Female Quick Slide Terminal 16 to 14 AWG Clear, Female Quick Slide Disconnector, Fully Insulated, 16 to 14 AWG

Female Quick Slide Terminal 16 to 14 AWG Clear

Item#: 1495183
Flat Washer Property Class 10.9 M22, Flat Washer, Property Class 10.9, Carbon Steel, M22

Flat Washer Grade 12 Thru-Hardened Steel M12

Item#: 87512
Flat Washer Property Class 10.9 M22, Flat Washer, Property Class 10.9, Carbon Steel, M22

Flat Washer Grade 12 Thru-Hardened Steel M10

Item#: 87511
Hex Nut Grade 8 Alloy Steel 1-8, ANSI B18.2.2 Hex Nut, Grade 8, Alloy Steel, Zinc Finish, Coarse Thread, 1-1/2

Hex Nut Grade 8 Alloy Steel 1/4-20

Item#: A100
Step-Down Butt Connector 16 to 14/22 to 18 AWG, Step-Down Heat Seal Butt Connector, Nylon Insulated, 16 to 14/22 to 18 AWG

Step-Down Butt Connector 16 to 14/22 to 18 AWG

Item#: 54530
Ring Tongue Terminal 12 to 10 AWG Yellow, Ring Tongue Terminal, Standard, Nylon Insulated, 12 to 10 AWG, #8 Stud Size, Yellow

Ring Tongue Terminal 12 to 10 AWG Yellow

Item#: 25275
Ring Tongue Terminal 16 to 14 AWG Blue, Ring Tongue Terminal, 2-Piece Heat Seal, Polyolefin Insulated, 16 to 14 AWG

Ring Tongue Terminal 16 to 14 AWG Blue

Item#: 92810
Watertight Wire Nuts, 2 - 14 Gauge/4 - 12 Gauge, Red

Watertight Wire Nuts

Item#: DY20720050
Watertight Wire Nuts 3 - 20 Gauge/3 - 16 GaugeDark Blue, Watertight Wire Nuts, 3 - 20 Gauge/3 - 16 Gauge, Dark Blue

Wire Nut Watertight 2 - 10 Gauge/2 - 6 Gauge Dark Blue

Item#: DY20720090
Fork Pigtail Connector 18 to 12 AWG Green, Pigtail Connector, 18 to 12 AWG, 8

Fork Pigtail Connector 18 to 12 AWG Green

Item#: 62814
Cushion-Grip Wire Connector Blue/Gray, Cushion-Grip Wire Connector, 4# 14 to 6 AWG, Blue/Gray

Cushion-Grip Wire Connector Blue/Gray

Item#: 1419693
Cushion-Grip Wire Connector Blue/Gray, Cushion-Grip Wire Connector, 4# 14 to 6 AWG, Blue/Gray

Cushion-Grip Wire Connector Red/Yellow

Item#: 1419692
Cushion-Grip Wire Connector Orange/Blue, Cushion-Grip Wire Connector, 3# 20 to 12 AWG, Orange/Blue

Cushion-Grip Wire Connector Orange/Blue

Item#: 1419691

Product Description

• Tan/Red versatile connector allows connector to be used in place of yellow, tan and red connectors in most applications
• 22-8 AWG
• Holds from two 18 Ga. up to five 12 Ga. wires for most common applications
• Compact design for more room in tight applications
• Torque wing design provides a comfortable, secure grip for fast installation and easy back-off
• 1/2" strip length
• Rated at 600V maximum for building wire; 1,000V maximum for signs and lighting fixtures

Technical Specifications

Item#: 1145957
Type Wing Style
Wire Gauge 22-8 AWG
Voltage Rating 600V Maximum for Building Wire 1,000V Maximum in Signs and Fixtures
Color Tan/Red
Strip Length 1/2 "
Style T/R Plus Wire Connectors
UNSPSC #: 39121409
TAA Compliant: Yes
Weight: 1.52 lb
