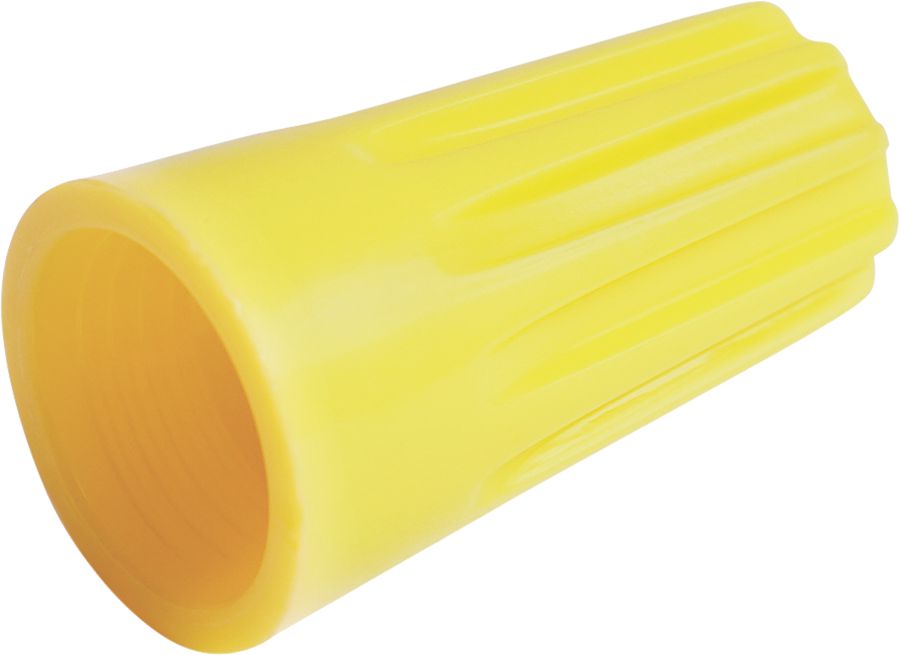

Wire Connector 18 to 12 AWG Yellow
(Pack of
100.0)
• Color-coded for easy identification
• Extra-rugged, flame retardant, fluted shells made of high-impact plastic
• Wide passage eases insertion
• Resists practically all chemical action
• Unaffected by gasolines, oils, diluted acids and alkaline solutions
• Tight no-slip spring
• Buttress threads guard against flash-over
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 17-67
Frequently Bought Together
180-degree Wide Beam Head Light with Side Light
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Butt Connector 12 to 10 AWG Yellow
Couldn't load pickup availability
Female Quick Slide Terminal 22 to 18 AWG Clear
Couldn't load pickup availability
Female Quick Slide Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Sure-Lok Wire Connector 22 to 8 AWG Red
Couldn't load pickup availability
Sure-Lok Wire Connector 22 to 12 AWG Yellow
Couldn't load pickup availability
Winged Wire Connector 14 to 8 AWG Gray
Couldn't load pickup availability
Sure-Lok Wire Connector 22 to 8 AWG Red
Couldn't load pickup availability
Sure-Lok Wire Connector 22 to 12 AWG Yellow
Couldn't load pickup availability
Winged Wire Connector 14 to 8 AWG Gray
Couldn't load pickup availability
Product Description
• Color-coded for easy identification• Extra-rugged, flame retardant, fluted shells made of high-impact plastic
• Wide passage eases insertion
• Resists practically all chemical action
• Unaffected by gasolines, oils, diluted acids and alkaline solutions
• Tight no-slip spring
• Buttress threads guard against flash-over
Technical Specifications
| Item#: | 25004 |
|---|---|
| Type | Standard |
| Wire Gauge | 18-12 AWG |
| Voltage Rating | 600V Maximum for Building Wire 1,000V Maximum in Signs and Fixtures |
| Color | Yellow |
| Spring Type | Tight no-slip spring |
| Industry Number | 74B |
| Approvals | UL, CSA |
| Style | Standard Temp 221 F Max Wire Connectors |
| UNSPSC #: | 39121409 |
| TAA Compliant: | No |
| Weight: | 0.45 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
