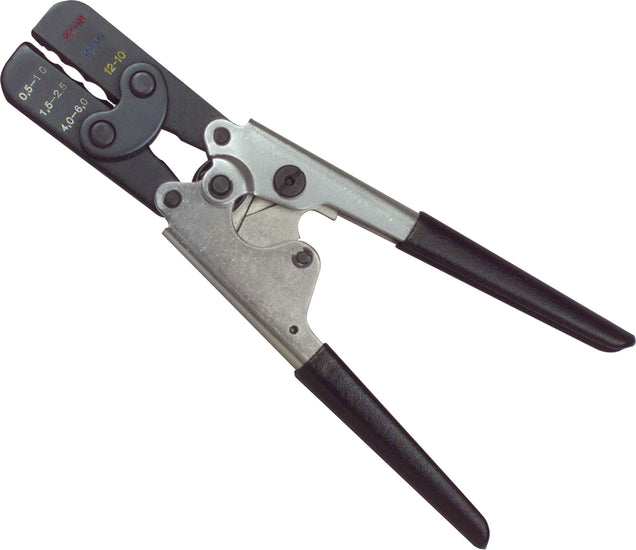

Terminal Crimping Tool with Interchangeable Die, 26-16 AWG, Full Cycle Ratchet, Suitable for Open Barrel Non-Insulated Terminals
(Pack of
1)
• Professional tool incorporating a single frame with several interchangeable dies
• Full cycle ratchet with safety release
• High-quality electrical and mechanical crimps are made simultaneously
• Crimps meet or exceed industry standards
• Assures a positive mechanical and electrical crimp and ease of use
• Crimping dies can be easily switched with two screws
The die will slide out towards the front of the frame simply by loosening the two socket head screws and removing them.
To replace the die1. Simply extend the frame to its full open position.2. Close the frame approximately halfway. 3. Insert the die into the frame until it stops. All dies can be inserted only one way for the tool to close properly.4. Tighten the screws approximately halfway. 5. Close the frame to press the dies against each other. This helps to align the dies in the frame.6. Finish tightening the screws. 7. Frame and tool are complete and ready for use.
Couldn't load pickup availability
Catalog page#: 17-72
Frequently Bought Together
Terminal Crimp Die 22-18 AWG
Couldn't load pickup availability
Crimping Tool 8 AWG-1/0 AWG 15"
Couldn't load pickup availability
Terminal Crimp Tool Assortment
Couldn't load pickup availability
Crimping Tool Hollow Pin Connector 20-10 AWG
Couldn't load pickup availability
Replacement Fuel Cell for Shrink Jet Butane Torch
Couldn't load pickup availability
Self Igniting Butane Torch
Couldn't load pickup availability
M18™ REDLITHIUM™ XC5.0 Extended Capacity Battery
Couldn't load pickup availability
M18™ FUEL™ 1/2" Drill Driver Kit
Couldn't load pickup availability
M18™ Cordless 2-Speed Grease Gun Kit
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 5/32"
Couldn't load pickup availability
Cordless Right Angle Grinder Charging Bundle
Couldn't load pickup availability
Jobber Length Drill Bit HSS 15/64"
Couldn't load pickup availability
Product Description
• Professional tool incorporating a single frame with several interchangeable dies• Full cycle ratchet with safety release
• High-quality electrical and mechanical crimps are made simultaneously
• Crimps meet or exceed industry standards
• Assures a positive mechanical and electrical crimp and ease of use
• Crimping dies can be easily switched with two screws
The die will slide out towards the front of the frame simply by loosening the two socket head screws and removing them.
To replace the die1. Simply extend the frame to its full open position.2. Close the frame approximately halfway. 3. Insert the die into the frame until it stops. All dies can be inserted only one way for the tool to close properly.4. Tighten the screws approximately halfway. 5. Close the frame to press the dies against each other. This helps to align the dies in the frame.6. Finish tightening the screws. 7. Frame and tool are complete and ready for use.
Technical Specifications
| Item#: | 95111 |
|---|---|
| Type | Crimping Tool |
| Style | Terminal Connector Crimping System |
| Crimp Range | 22-10 AWG |
| Description | Tool with 95106 Die |
| UNSPSC #: | 27111500 |
| TAA Compliant: | Yes |
| Weight: | 1.86 lb |
