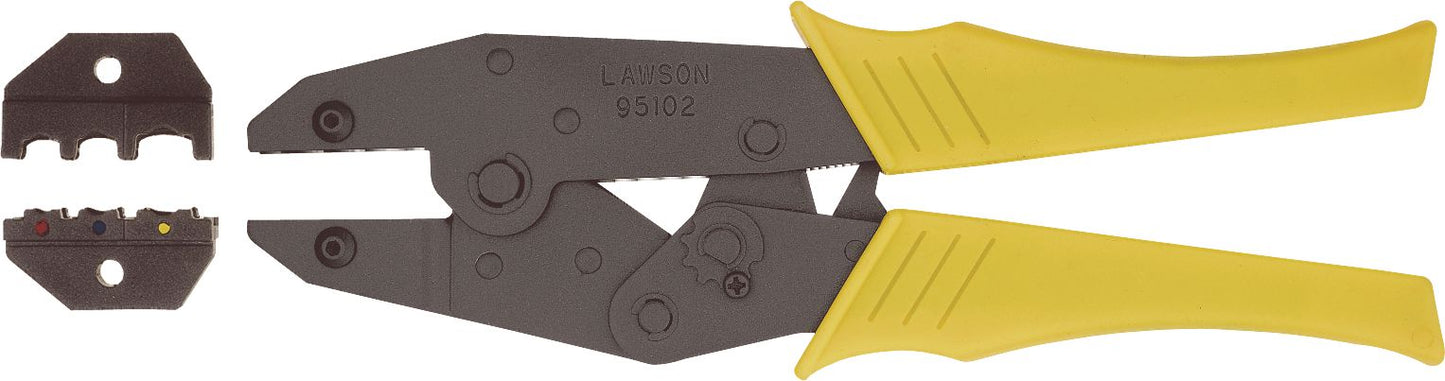

Terminal Crimping Tool with Interchangeable Die, 22-10 AWG, Full Cycle Ratchet, Suitable for Insulated Terminals
(Pack of
1)
SKU:95109 Item#: 95109
• Professional tool incorporating a single frame with several interchangeable dies
• Full cycle ratchet with safety release
• High-quality electrical and mechanical crimps are made simultaneously
• Crimps meet or exceed industry standards
• Assures a positive mechanical and electrical crimp and ease of use
• Crimping dies can be easily switched with two screws
The die will slide out towards the front of the frame simply by loosening the two socket head screws and removing them.
To replace the die1. Simply extend the frame to its full open position.2. Close the frame approximately halfway. 3. Insert the die into the frame until it stops. All dies can be inserted only one way for the tool to close properly.4. Tighten the screws approximately halfway. 5. Close the frame to press the dies against each other. This helps to align the dies in the frame.6. Finish tightening the screws. 7. Frame and tool are complete and ready for use.
Couldn't load pickup availability
Catalog page#: 17-72
Frequently Bought Together
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
Hand Hydraulic Cable Crimper Set With Dies And Case
Couldn't load pickup availability
Selectakrimp™ Hand Crimping Tool 6-4/0 AWG
Couldn't load pickup availability
Extra-Long Circuit Tester with Retractable Cord
Couldn't load pickup availability
Terminal Crimp Die 22-18 AWG
Couldn't load pickup availability
Copper Cable Cutter Large
Couldn't load pickup availability
Hand Hydraulic Cable Crimper Set With Dies And Case
Couldn't load pickup availability
Quick Change Cut-Off Mandrel Fits 1/4" Arbor
Couldn't load pickup availability
Comfort Grip Ergonomic Safety Wire Stipper Cutter And Cable Tie Cutter
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Utility Knife, Folding , 4" Closed
Couldn't load pickup availability
Scotch-Brite Roloc Surface Conditioning Disc 2"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 15/64"
Couldn't load pickup availability
Twist-On Surface Conditioning Disc 3" Brown
Couldn't load pickup availability
Product Description
• Professional tool incorporating a single frame with several interchangeable dies• Full cycle ratchet with safety release
• High-quality electrical and mechanical crimps are made simultaneously
• Crimps meet or exceed industry standards
• Assures a positive mechanical and electrical crimp and ease of use
• Crimping dies can be easily switched with two screws
The die will slide out towards the front of the frame simply by loosening the two socket head screws and removing them.
To replace the die1. Simply extend the frame to its full open position.2. Close the frame approximately halfway. 3. Insert the die into the frame until it stops. All dies can be inserted only one way for the tool to close properly.4. Tighten the screws approximately halfway. 5. Close the frame to press the dies against each other. This helps to align the dies in the frame.6. Finish tightening the screws. 7. Frame and tool are complete and ready for use.
Technical Specifications
| Item#: | 95109 |
|---|---|
| Type | Crimping Tool |
| Style | Terminal Connector Crimping System |
| Crimp Range | 22-10 AWG |
| Description | Tool with 95103 Die |
| UNSPSC #: | 27111500 |
| TAA Compliant: | Yes |
| Weight: | 1.85 lb |
