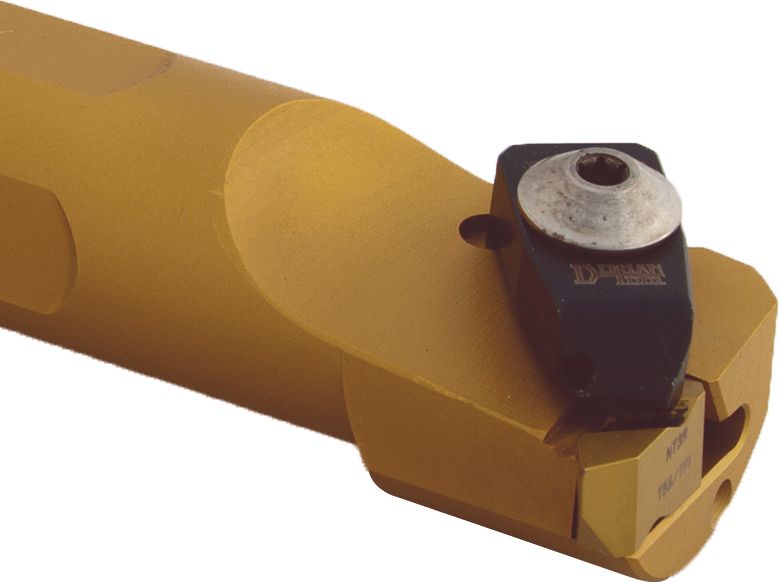

Jet-Stream™ Theading Bar, LH, DorNotch Style , For DorNotch Inserts Insert
(Pack of
1)
SKU:1352977 Item#: 1352977
Holds DorNotch Insert
• Extreme Lubrication at the cutting edge
• Extreme Heat Dissipation at the cutting edge
• Constant Low Cutting Edge Temperature
• Greater Chip Control and Evacuation
• Chip Breaking at High Pressures
• Smooth Cutting Action and Surface Finish
• Increased Speeds and Feeds
• Up to 1400 PSI Coolant Pressure
• Coolant Delivered at Close Range of 1/4 inch
• Insert Life Increased up to 200%
Product Description
Holds DorNotch Insert• Extreme Lubrication at the cutting edge
• Extreme Heat Dissipation at the cutting edge
• Constant Low Cutting Edge Temperature
• Greater Chip Control and Evacuation
• Chip Breaking at High Pressures
• Smooth Cutting Action and Surface Finish
• Increased Speeds and Feeds
• Up to 1400 PSI Coolant Pressure
• Coolant Delivered at Close Range of 1/4 inch
• Insert Life Increased up to 200%
Technical Specifications
| Item#: | 1352977 |
|---|---|
| Manufacturer Model #: | AS-16R-ADNEL-3 |
| Type | Threading Bar |
| Style | Style E |
| Direction | Left Hand |
| B | 1.38 " |
| C | 8.00 " |
| D | 1.00 " |
| F | 0.69 " |
| Insert | NG-3R |
| Insert Thickness | 0.195 " |
| I.C. (Inscribed Circle) | 0.375 " |
| UNSPSC #: | 27111701 |
| TAA Compliant: | Yes |
