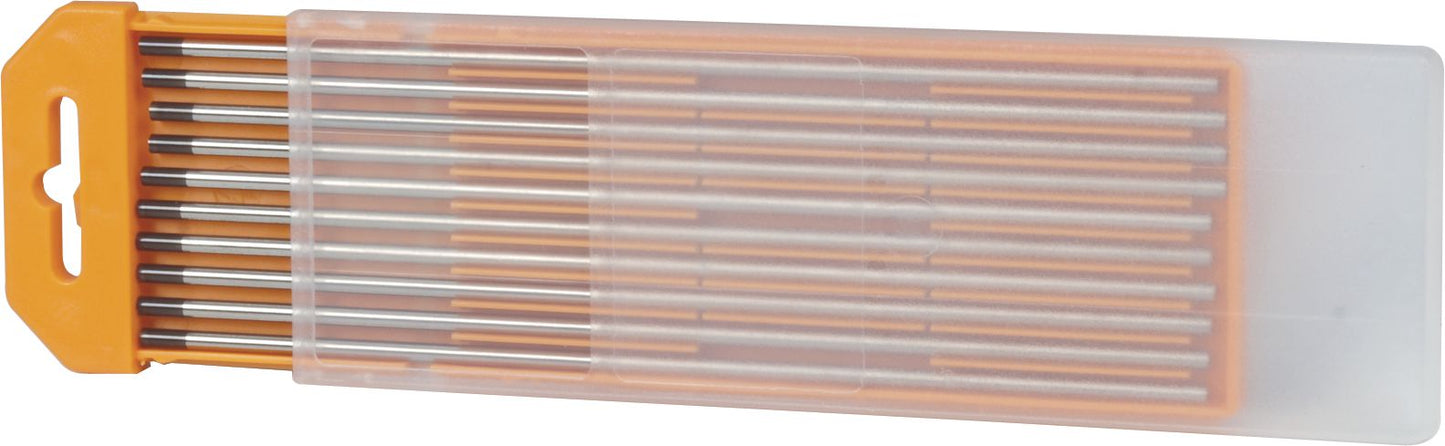

TIG Welding Electrode 1/16"
(Pack of
10.0)
• Non-radioactive Lanthanum Tungsten TIG electrodes eliminate the potential of interference with special equipment and reduces rate of vaporization or burn-off
• Will operate with alternating current or direct current either polarity
• The addition of lanthanum also lowers the temperature at which the electrode emits electrons allowing the electrode to operate cooler so higher currents can be used
• Lanthanum improves arc initiation and arc stability
• Longer life
• Less contamination
• Length: 7" (18cm)
• Identification: gold tipped
• Meets AWS specifications for EWLa-2
NOTE: Use argon shielding gas with a gas lens collet body for optimum performance.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 13-39
Frequently Bought Together
Nylon Cable Tie 15.25" Black
Couldn't load pickup availability
Nylon Cable Tie 8" Black
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
9V/HW20 TIG Welding Standard Collet Body 3/32"
Couldn't load pickup availability
9V/HW20 TIG Welding Standard Collet 1/8"
Couldn't load pickup availability
TIG Welding Tungsten Electrode Pure 1/16"
Couldn't load pickup availability
331 Mild and Carbon Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
Rosin Core Solder 0.032"
Couldn't load pickup availability
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
22-50 MIG Welding Nozzle 1/2"
Couldn't load pickup availability
24A-62 MIG Welding Nozzle 5/8"
Couldn't load pickup availability
9V/HW20 TIG Welding Standard Collet Body 3/32"
Couldn't load pickup availability
Product Description
• Non-radioactive Lanthanum Tungsten TIG electrodes eliminate the potential of interference with special equipment and reduces rate of vaporization or burn-off• Will operate with alternating current or direct current either polarity
• The addition of lanthanum also lowers the temperature at which the electrode emits electrons allowing the electrode to operate cooler so higher currents can be used
• Lanthanum improves arc initiation and arc stability
• Longer life
• Less contamination
• Length: 7" (18cm)
• Identification: gold tipped
• Meets AWS specifications for EWLa-2
NOTE: Use argon shielding gas with a gas lens collet body for optimum performance.
Technical Specifications
| Item#: | P14576 |
|---|---|
| Welding Process | TIG |
| Type | Lanthanated |
| Components | Tungsten Electrode |
| Diameter | 1/16 " |
| Length | 7 " |
| Description | 1.5% Lanthanated |
| UNSPSC #: | 23271700 |
| TAA Compliant: | No |
| Weight: | 0.23 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
