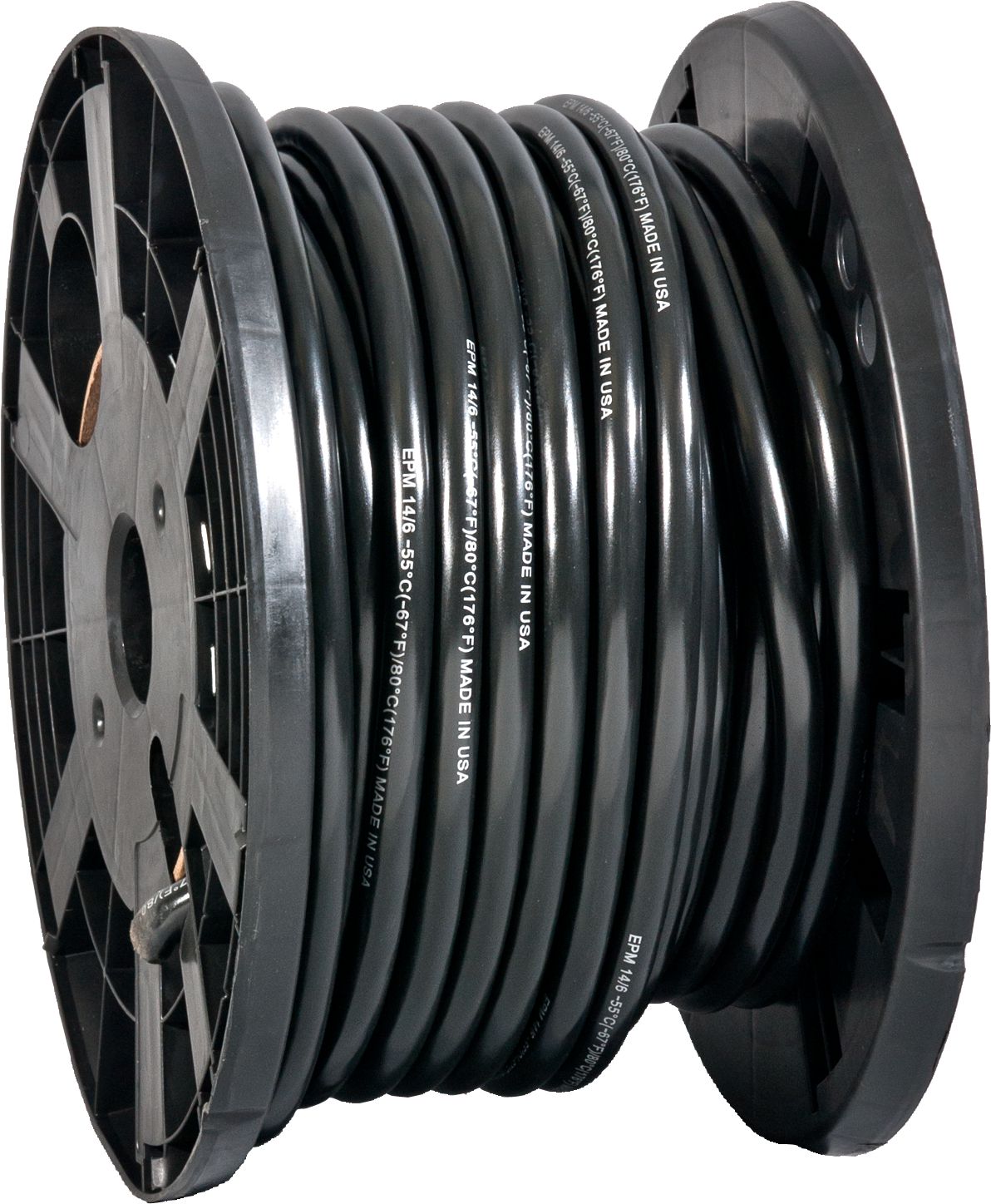

Trailer Cable, 6 Wire, 14 AWG, 100' Length, PVC, Soft Tinned, Color Coded, White, Black, Red, Brown, Yellow, Green
(Pack of
1)
SKU:5560 Item#: 5560
• Abrasion-proof outer jacket is resistant to oil, ozone, water and acid, is highly flexible and possesses extreme tensile strength
• All conductors are color-coded for identification
• Conductors are soft-tinned, annealed copper, conforming to SAE and ATA specifications• Temperature range: –58°F to +194°F (–50°C to +90°C)• Packaged in 100-foot rolls
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 23-23
Frequently Bought Together
Liquidtight Strain Relief Connector 1/2" Steel
Couldn't load pickup availability
In-line GFCI 12/3 AWG 120V
Couldn't load pickup availability
Booster Cable 400A 4 AWG 16' Cable
Couldn't load pickup availability
Connector Housing 20A 2-Wire Tower
Couldn't load pickup availability
MINI Fuse 30A Green
Couldn't load pickup availability
Cable Seal Green 20-18 AWG 20A 12V
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability

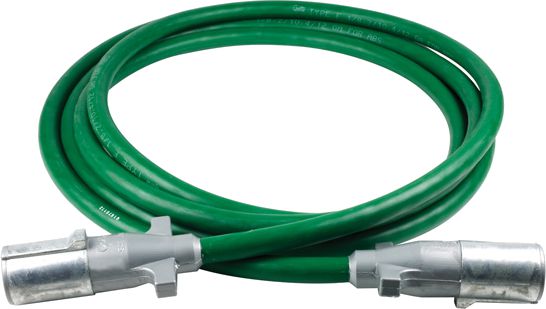

Tractor-Trailer Self Coiling Cable Assemblies ABS
Couldn't load pickup availability
Tractor-Trailer Self Coiling Cable 17" ABS
Couldn't load pickup availability
Trailer Cable Harness 15' Coiled Black
Couldn't load pickup availability
Product Description
• Abrasion-proof outer jacket is resistant to oil, ozone, water and acid, is highly flexible and possesses extreme tensile strength• All conductors are color-coded for identification
• Conductors are soft-tinned, annealed copper, conforming to SAE and ATA specifications• Temperature range: –58°F to +194°F (–50°C to +90°C)• Packaged in 100-foot rolls
Technical Specifications
| Item#: | 5560 |
|---|---|
| Style | PVC Trailer Cable |
| Wire Gauge | 14 AWG |
| Temperature Range | -40 to 194 F |
| Number of Conductors | 6 |
| O.D. | 0.550 - 0.610 " |
| Length | 100 ft |
| Color | White, Black, Red, Brown, Yellow, Green |
| Approvals | SAE and ATA Specifications |
| Type | Trailer Cable |
| UNSPSC #: | 26121600 |
| TAA Compliant: | Yes |
| Weight: | 17.95 lb |
