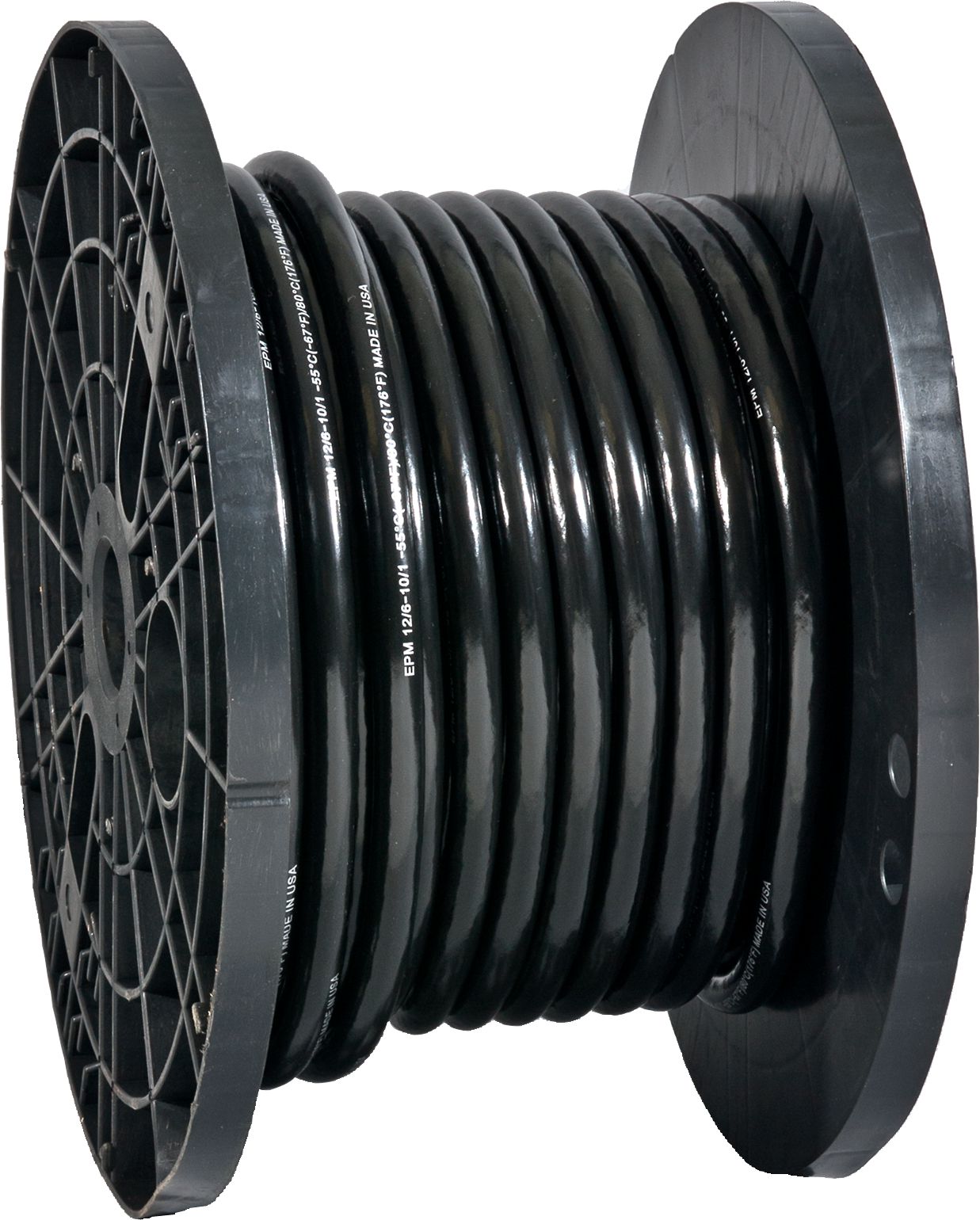

Trailer Cable, 7 Wire, 12-10 AWG, 100' Length, PVC, Soft Tinned, Color Coded, Black, Red, White, Brown, Yellow, Green, Blue
(Pack of
1)
SKU:5562 Item#: 5562
• Abrasion-proof outer jacket is resistant to oil, ozone, water and acid, is highly flexible and possesses extreme tensile strength

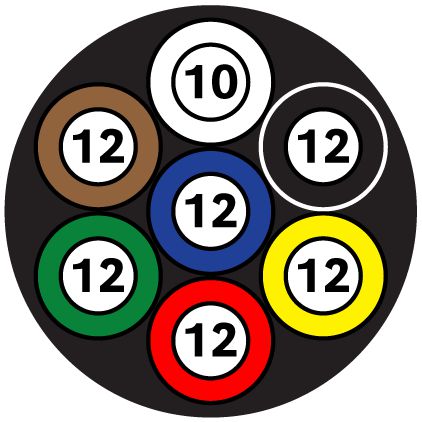

• All conductors are color-coded for identification
• Conductors are soft-tinned, annealed copper, conforming to SAE and ATA specifications• Temperature range: –58°F to +194°F (–50°C to +90°C)• Packaged in 100-foot rolls
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 23-23
Frequently Bought Together
Liquidtight Strain Relief Connector 3/4" Steel
Couldn't load pickup availability
Coaxial Cable 6/U 75 Ohms 100'
Couldn't load pickup availability
Trailer Cable 7 Wire 12-10-8 AWG 100' ABS
Couldn't load pickup availability
DT Series Receptacle 13A 2 Contacts
Couldn't load pickup availability
Super 33+ Series Vinyl Electrical Tape Black 3/4"
Couldn't load pickup availability
Socket Contact 20-16 AWG Size 16
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Tractor-Trailer Self Coiling Cable 15" ABS
Couldn't load pickup availability

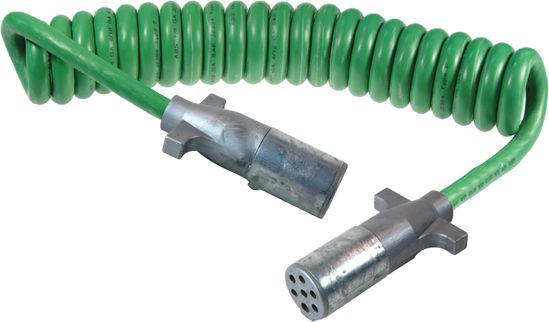

Trailer Cable 15' Coiled ABS Green
Couldn't load pickup availability
Trailer Cable 12' Coiled ABS Green
Couldn't load pickup availability
Product Description
• Abrasion-proof outer jacket is resistant to oil, ozone, water and acid, is highly flexible and possesses extreme tensile strength• All conductors are color-coded for identification
• Conductors are soft-tinned, annealed copper, conforming to SAE and ATA specifications• Temperature range: –58°F to +194°F (–50°C to +90°C)• Packaged in 100-foot rolls
Technical Specifications
| Item#: | 5562 |
|---|---|
| Style | PVC Trailer Cable |
| Wire Gauge | 12-10 AWG |
| Temperature Range | -40 to 194 F |
| Number of Conductors | 7 |
| O.D. | 0.660 - 0.690 " |
| Length | 100 ft |
| Color | Black, Red, White, Brown, Yellow, Green, Blue |
| Approvals | SAE and ATA Specifications |
| Type | Trailer Cable |
| UNSPSC #: | 26121600 |
| TAA Compliant: | Yes |
| Weight: | 30.0 lb |
