Trailer Cable, 7 Wire, 4 x 12/2 x 10/1 x 8 AWG, 100' Length, 7-Way, ABS, Bare Annealed Copper, PVC Jacket, Green
(Pack of
1)
SKU:55365 Item#: 55365
• Green PVC jacket is abrasion-proof, oil-resistant and water-resistant

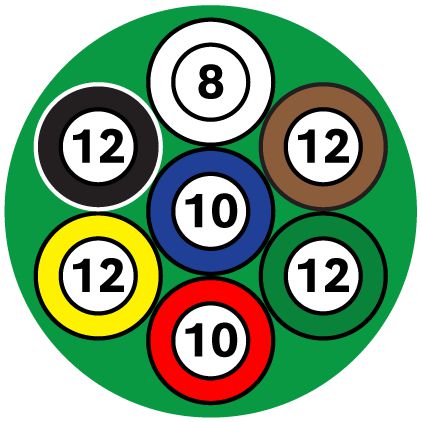

• Conductors are bare annealed copper conforming to SAE and ATA specifications; four 12 Ga., two 10 Ga. and one 8 Ga.• Temperature range: –58°F to +140°F (–50°C to +60°C)• Packaged in 100-foot rolls
As of March 1998, NHTSA regulations require all new trucks, trailers and buses with air brakes to have Anti-Lock (ABS) braking. This cable is specifically for ABS applications.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 23-23
Frequently Bought Together
Replacement Electrical Cord 14/3 AWG 100'
Couldn't load pickup availability
Liquidtight Strain Relief Connector 3/4" Steel
Couldn't load pickup availability
Coaxial Cable 6/U 75 Ohms 100'
Couldn't load pickup availability
DT Series Receptacle 13A 2 Contacts
Couldn't load pickup availability
Super 33+ Series Vinyl Electrical Tape Black 3/4"
Couldn't load pickup availability
Connector Housing 20A 2-Wire Shroud
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Master Series Penlight Flashlight
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Couldn't load pickup availability

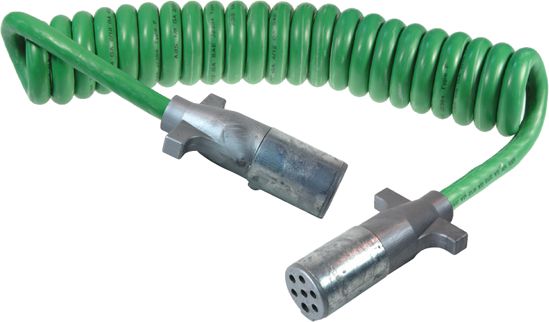

Trailer Cable 15' Coiled ABS Green
Couldn't load pickup availability
Trailer Cable 12' Coiled ABS Green
Couldn't load pickup availability
Ultralink Trailer Power Cord 12' Coiled ABS
Couldn't load pickup availability
Product Description
• Green PVC jacket is abrasion-proof, oil-resistant and water-resistant• Conductors are bare annealed copper conforming to SAE and ATA specifications; four 12 Ga., two 10 Ga. and one 8 Ga.• Temperature range: –58°F to +140°F (–50°C to +60°C)• Packaged in 100-foot rolls
As of March 1998, NHTSA regulations require all new trucks, trailers and buses with air brakes to have Anti-Lock (ABS) braking. This cable is specifically for ABS applications.
Technical Specifications
| Item#: | 55365 |
|---|---|
| Style | ABS Seven-Way Trailer Cable |
| Wire Gauge | 12-10-8 AWG |
| Temperature Range | -36.4 to 140 F |
| Number of Conductors | 7 |
| O.D. | 0.075 - 0.095 " |
| Length | 100 ft |
| Color | Green |
| Approvals | SAE and ATA Specifications |
| Type | Trailer Cable |
| UNSPSC #: | 26121600 |
| TAA Compliant: | Yes |
| Weight: | 39.74 lb |
