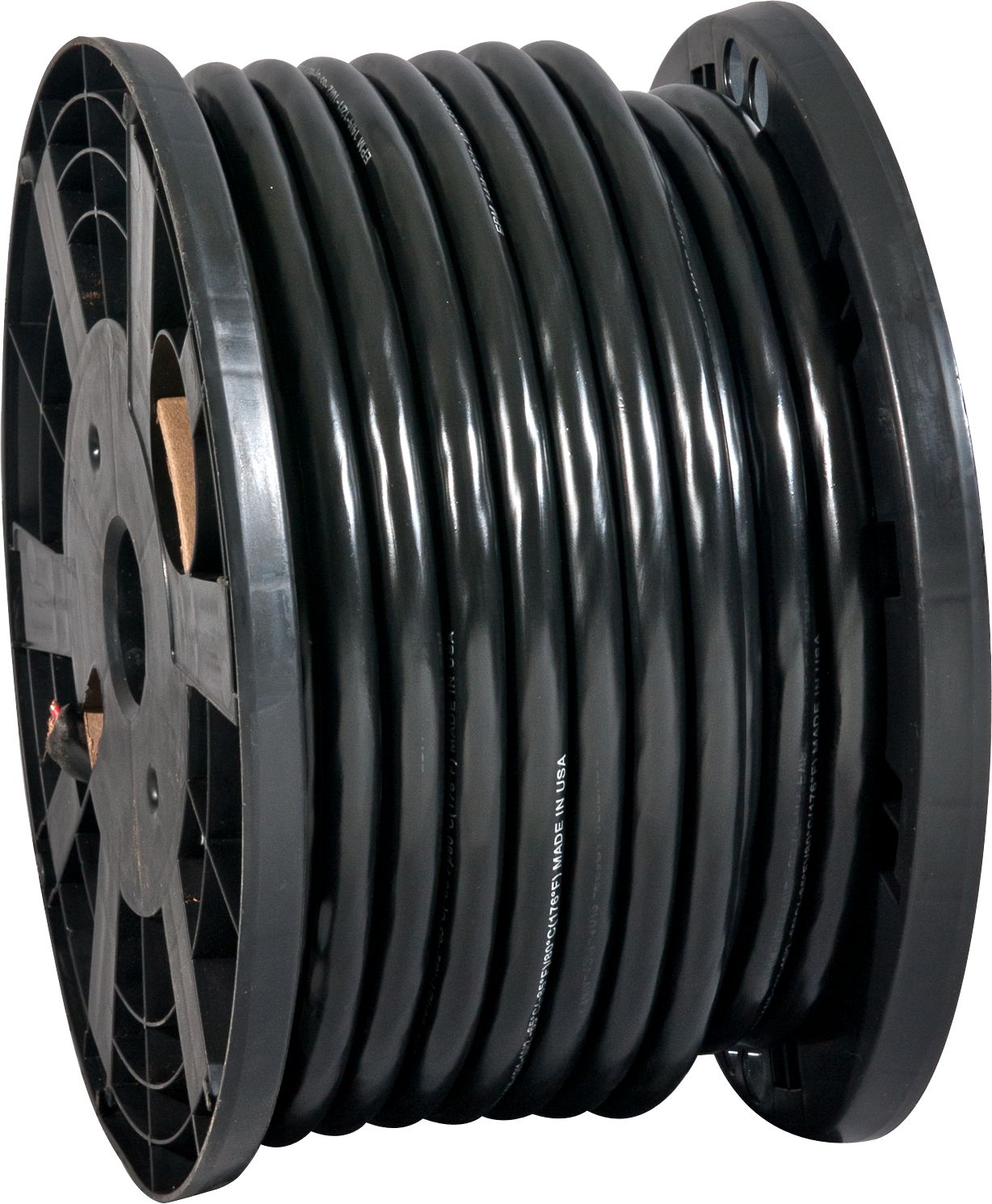

Trailer Cable, 7 Wire, 14-12-10 AWG, 100' Length, PVC, Soft Tinned, Color Coded, Red, White, Black, Brown, Blue, Green, Yellow
(Pack of
1)
SKU:61245 Item#: 61245
• Abrasion-proof outer jacket is resistant to oil, ozone, water and acid, is highly flexible and possesses extreme tensile strength
• All conductors are color-coded for identification

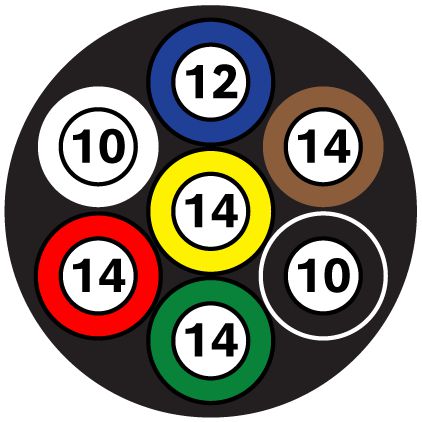

Wire sizes:
(4) 14 gage wires
(1) 12 gage wire
(2) 10 gage wires
• Conductors are soft-tinned, annealed copper, conforming to SAE and ATA specifications• Temperature range: –58°F to +194°F (–50°C to +90°C)• Packaged in 100-foot rolls
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 23-23
Frequently Bought Together
Liquidtight Strain Relief Connector 1/4" Nylon
Couldn't load pickup availability
Liquidtight Strain Relief Connector 1/2" Steel
Couldn't load pickup availability
Liquidtight Strain Relief Connector 1/2" Steel
Couldn't load pickup availability
Cable Tie 14.19" Black
Couldn't load pickup availability
ATO/ATC Fuse 15A Blue
Couldn't load pickup availability
Master Series Penlight Flashlight
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Ultralink Trailer Power Cord 12' Coiled ABS
Couldn't load pickup availability
Ultralink 500 Trailer Cord 12' Coiled Black
Couldn't load pickup availability
Trailer Cable Harness 15' Straight Green
Couldn't load pickup availability
Product Description
• Abrasion-proof outer jacket is resistant to oil, ozone, water and acid, is highly flexible and possesses extreme tensile strength• All conductors are color-coded for identification
Wire sizes:
(4) 14 gage wires
(1) 12 gage wire
(2) 10 gage wires
• Conductors are soft-tinned, annealed copper, conforming to SAE and ATA specifications• Temperature range: –58°F to +194°F (–50°C to +90°C)• Packaged in 100-foot rolls
Technical Specifications
| Item#: | 61245 |
|---|---|
| Style | PVC Trailer Cable |
| Wire Gauge | 14-12-10 AWG |
| Temperature Range | -40 to 194 F |
| Number of Conductors | 7 |
| O.D. | 0.500 " |
| Color | Multiple |
| Approvals | SAE and ATA Specifications |
| Type | Trailer Cable |
| UNSPSC #: | 26121600 |
| TAA Compliant: | Yes |
| Weight: | 25.2 lb |
Product Restrictions
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
