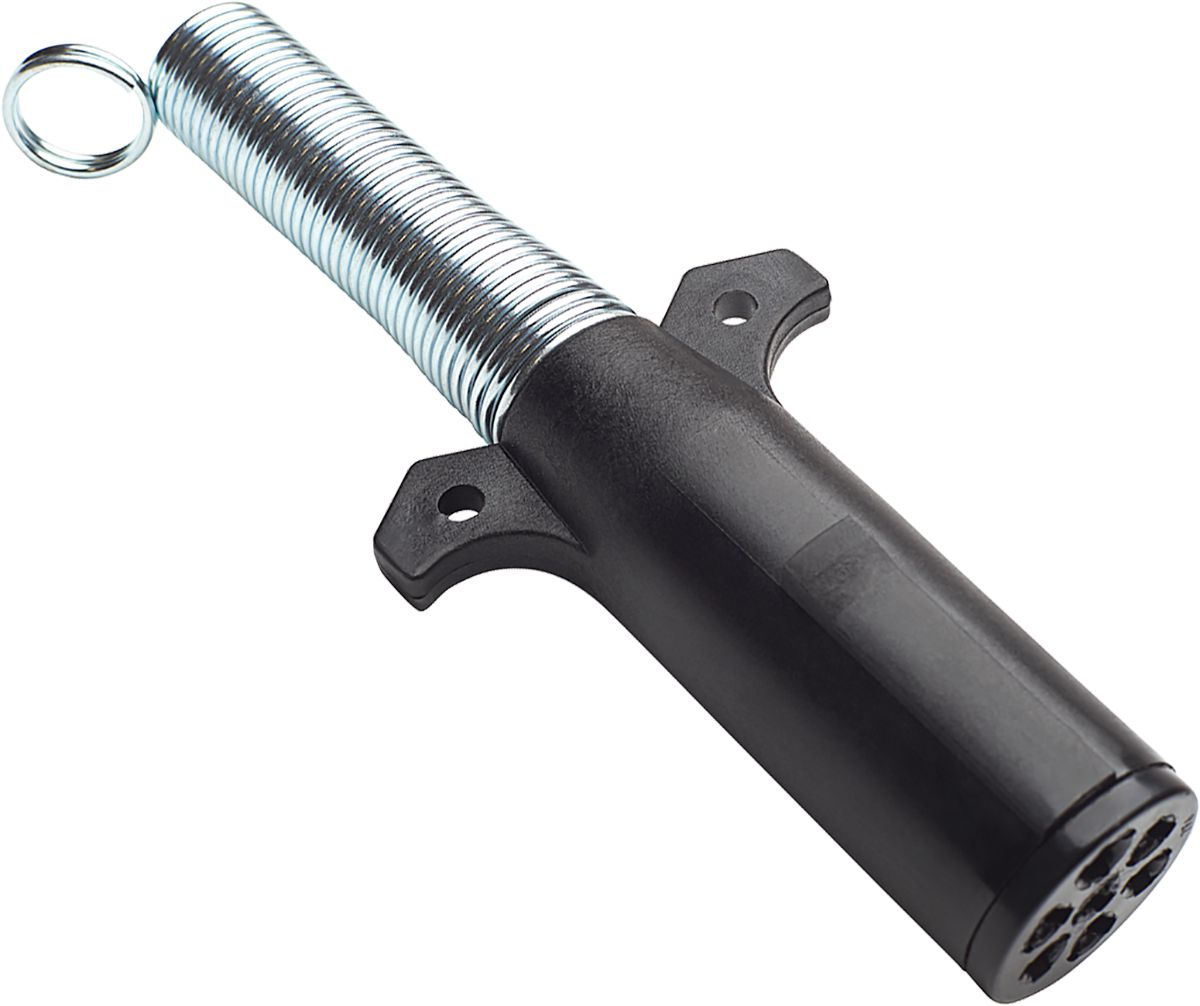

7-Way Trailer Plug Connector with Cable Guard, 16 - 10AWG Wire (8AWG Ground), Heavy-duty, Lightweight
(Pack of
1)
Heavy-duty, lightweight, non-corrosive nylon body
Unique cable clamp has extra width for support and to prevent chafing
Finger grips are integrated in body of plug and will never shake loose
Can be used with Die-Cast Sockets
Cable seal prevents moisture from entering plug
Zinc-plated cable guard resists corrosion
Exceeds FMVSS-121 and SAE J560c specifications Will accept 16 to 10 Ga. wire and 8 Ga. ground wire Plug-in wire terminations Solid pin design Interchangeable with Berg, Cole-Hersee and ATA
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 23-22
Frequently Bought Together
Super 33+ Series Vinyl Electrical Tape Black 3/4"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Connector Housing 20A 2-Wire Tower
Couldn't load pickup availability
Heavy-Duty Battery Cable Lug 1/0 AWG Pink 5/16"
Couldn't load pickup availability
Extreme-Duty Battery Cable Lug 4 AWG Gray 3/8"
Couldn't load pickup availability
Heavy-Duty Battery Cable Lug 8 AWG Red #10
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Alu-Master 8-Way Torpedo Level
Couldn't load pickup availability
Trailer Connector 6-Way Plug
Couldn't load pickup availability
Trailer Connector 4-Way Plug with Cable Guard
Couldn't load pickup availability
Trailer Connector 7-Way Plug Die-Cast Cable Guard
Couldn't load pickup availability
Product Description
Heavy-duty, lightweight, non-corrosive nylon body Unique cable clamp has extra width for support and to prevent chafing
Finger grips are integrated in body of plug and will never shake loose
Can be used with Die-Cast Sockets
Cable seal prevents moisture from entering plug
Zinc-plated cable guard resists corrosion
Exceeds FMVSS-121 and SAE J560c specifications Will accept 16 to 10 Ga. wire and 8 Ga. ground wire Plug-in wire terminations Solid pin design Interchangeable with Berg, Cole-Hersee and ATA
Technical Specifications
| Item#: | 53678 |
|---|---|
| Wire Gauge | 16 - 10 Gauge; 8 Gauge Ground |
| Size | 7 WAY |
| Replacement Interior Part Number | 53679 |
| Specifications | FMVSS-121 and SAE J560c |
| Description | Plug with Cable Guard |
| Style | Seven Way Plug |
| Type | Tractor-Trailer Connectors |
| UNSPSC #: | 31163103 |
| TAA Compliant: | Yes |
| Weight: | 0.51 lb |
