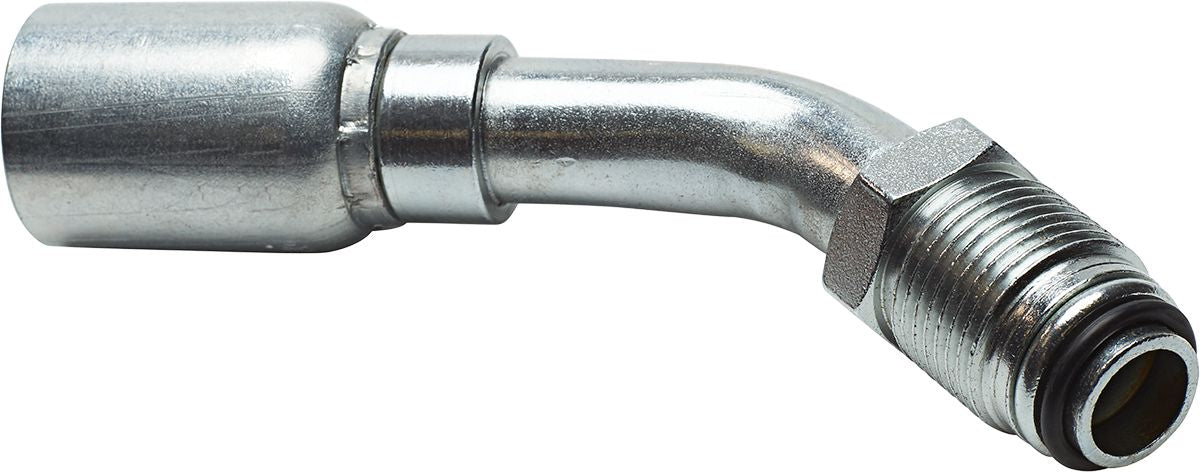

U Series Crimp-On Elbow, Carbon Steel, Male O-Ring Port, 45°, 1/2" (-10) x 7/8-14 (-10)
(Pack of
1)
SKU:88430 Item#: 88430
Includes O-Ring
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
Z Series Crimp-On Hose End 1/2" x 1-14
Item#: 16710
Couldn't load pickup availability
Z Series Crimp-On Elbow Flare 45° 1/2" x 3/4-16
Item#: 16636
Couldn't load pickup availability
Crimp-On Hose Coupling 3/8" x 3/8-18
Item#: 88311KH
Couldn't load pickup availability
Hydraulic Plug, 1-1/16-12"(12) Male JIC SAE 37 Degree Flare
Item#: 86202
Couldn't load pickup availability
Straight Thread O-Ring Buna-N 0.755 x 0.097"
Item#: 93618
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/4" x 1-3/16-12
Item#: 16716
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Item#: 11914
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/8-27
Item#: 91785
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 9/16-18
Item#: 16610
Couldn't load pickup availability
Interchangeable Hex Bit Set 20Pc Torx
Item#: DY89310522
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Item#: 88439
Couldn't load pickup availability
Cable Tie 13.38" Black
Item#: 85490
Couldn't load pickup availability
Product Description
Includes O-RingThese fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 88430 |
|---|---|
| Manufacturer Model #: | 08U-L50 |
| Manufacturer Series Number | U Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1/2 (-10) " |
| Dash Size | -8 |
| Gender | Male |
| Fitting End Style | O-Ring Port |
| Fitting End Type | Swivel |
| Fitting Angle | 45 ° |
| Fitting Dimension B (Working End) | 7/8-14 (-10) |
| Weatherhead No. | 08U-L50 |
| O.D. Tube Size | 5/8 |
| Size | (-10)X(-10) |
| Hex Size | 7/8 " |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 0.45 lb |
