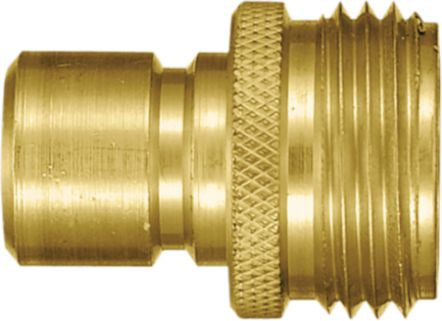

Water Line Coupling Nipple Brass 3/4"
(Pack of
2.0)
Connects water lines with one quick snap. No more threading on nozzle, sprayers or other equipment. For low pressure water service only. Non-valved coupler design permits maximum flow and minimum pressure drop. Valved coupler design shuts off flow when nipple is disconnected (no need to shut off water at source). Durable ball-locking mechanism secures connection.
• Not to exceed 200 PSI
• Temperature range: –40°F to +250°F (–40°C to +121°C)
Water Line Couplings are easy to use1. Thread coupler to faucet or to a male hose end. Thread nipple to female hose end.2. To connect, pull back sleeve on coupler, insert nipple and release the sleeve.3. To disconnect, retract sleeve on coupler and pull out nipple.
For use with valved or non-valved couplers
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog Page#: 8-134
Frequently Bought Together
Air Hose Ferrule Brass 11/16"
Couldn't load pickup availability
200-DP-SS
Couldn't load pickup availability
Air Hose Ferrule Brass 5/8"
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 3/8" x 3/8-18
Couldn't load pickup availability
Z Series Crimp-On Hose End 5/8" x 7/8-14
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2 x 3/4-16"
Couldn't load pickup availability
Pipe Coupling Brass 1/2-14 x 1/2-14
Couldn't load pickup availability
Pressure Gauge Lower Mount 0 to 300PSI
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/2" x 1/2-14
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/2" x 1/2-14
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 5/8-11
Couldn't load pickup availability
Product Description
Connects water lines with one quick snap. No more threading on nozzle, sprayers or other equipment. For low pressure water service only. Non-valved coupler design permits maximum flow and minimum pressure drop. Valved coupler design shuts off flow when nipple is disconnected (no need to shut off water at source). Durable ball-locking mechanism secures connection.• Not to exceed 200 PSI
• Temperature range: –40°F to +250°F (–40°C to +121°C)
Water Line Couplings are easy to use1. Thread coupler to faucet or to a male hose end. Thread nipple to female hose end.2. To connect, pull back sleeve on coupler, insert nipple and release the sleeve.3. To disconnect, retract sleeve on coupler and pull out nipple.
For use with valved or non-valved couplers
Technical Specifications
| Item#: | 98955 |
|---|---|
| Type | Nipple |
| Material | Brass |
| Fitting Dimension A | 3/4-11-1/2 |
| Fitting Dimension B | Quick Disconnect Nipple |
| Thread Style | Male GHT |
| Thread Size | 3/4" (GHT) " |
| Maximum Pressure | 200 PSI |
| UNSPSC #: | 27131600 |
| TAA Compliant: | Yes |
| Weight: | 0.16 lb |
