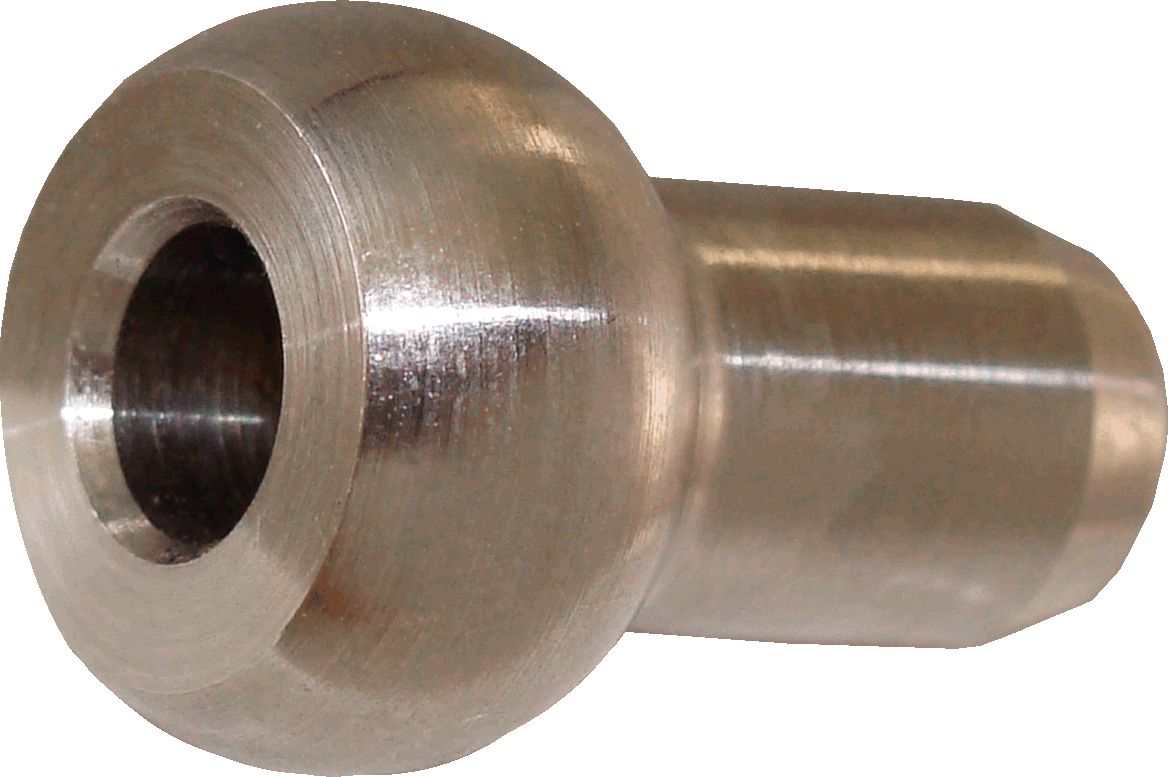

Wire Rope Terminal, Single Shank Ball, 3/16", Stainless Steel
(Pack of
5)
Single Shank Ball end fittings will exceed the minimum breaking strength of the cable on to which it is swaged.
• Stainless Steel
• Meets MIL-DTL-781
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 15-43
Frequently Bought Together
Wire Rope Terminal, Plain Ball, 3/16", Stainless Steel
Couldn't load pickup availability
Wire Rope Terminal, Plain Ball, 3/32", Stainless Steel
Couldn't load pickup availability
Wire Rope Terminal, Single Shank Ball, 1/16", Stainless Steel
Couldn't load pickup availability
Wire Rope Terminal, Stud, 5/32", 1/4-28 Right Hand Thread, Stainless S
Couldn't load pickup availability
Wire Rope Terminal, Plain Ball, 3/16", Stainless Steel
Couldn't load pickup availability
Wire Rope Terminal, Eye End, 1/8", Stainless Steel
Couldn't load pickup availability
Eye Bolts, Machinery, 1/2 x 1-1/2"
Couldn't load pickup availability
Wire Rope Clip, Malleable, Galvanized, 1/8"
Couldn't load pickup availability
Webmaster® 1600 Web Sling, Polyester, Yellow, 8' Length
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Wire Rope, Steel, Vinyl Coated, 7x19, 3/16", 4,200 lbs Breaking Streng
Couldn't load pickup availability
Wire Rope Uncoated 3200 Lb Safe Load 7/16" x 100'
Couldn't load pickup availability
Wire Rope Sleeve, 7/32", Aluminum
Couldn't load pickup availability
Product Description
Single Shank Ball end fittings will exceed the minimum breaking strength of the cable on to which it is swaged.• Stainless Steel
• Meets MIL-DTL-781

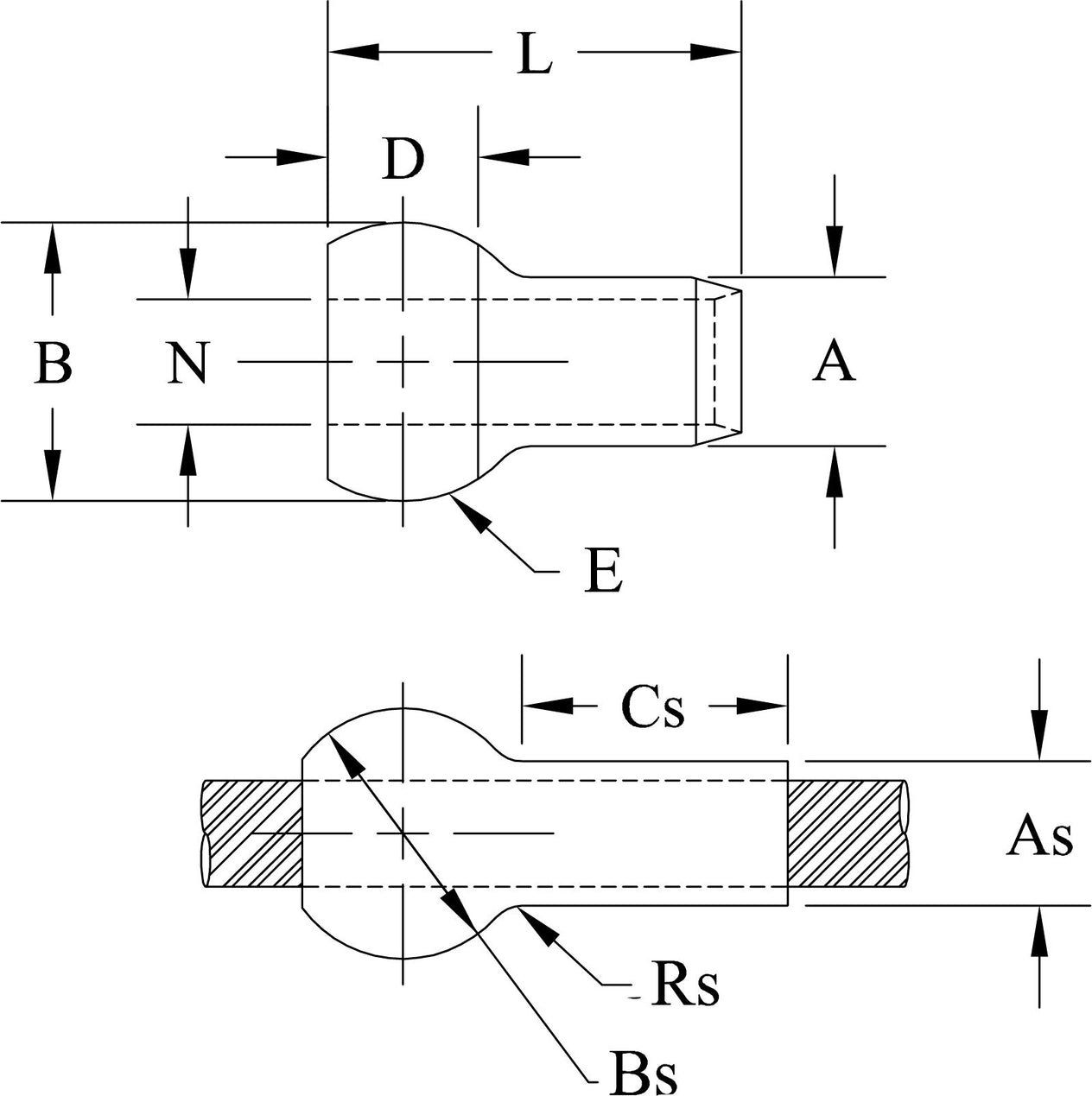

Technical Specifications
| Item#: | 1440190 |
|---|---|
| Type | Single Shank Ball |
| Cable Diameter | 3/16 " |
| Material | Stainless Steel |
| A | 0.298 " |
| As | 0.255 " |
| B | 0.492 " |
| Bs | 0.442 " |
| Cs | 0.469 " |
| D | 0.2645 " |
| E | 0.192 " |
| L | 0.730 " |
| N | 0.201 " |
| Rs | 0.033 " |
| UNSPSC #: | 31162812 |
| TAA Compliant: | Yes |
| Weight: | 0.07 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
