Wire Rope Terminal, Stud, 5/16", 1/2-20 Left Hand Thread, Stainless Steel
(Pack of 2)

Item#: 1440258

Loos & Co. Inc.

• Stainless Steel
• Meets MIL-DTL-781

Read More

Frequently Bought Together

Wire Rope Terminal, Eye End, 9/32

Wire Rope Terminal, Eye End, 1/16", Stainless Steel

Item#: 1440393
Wire Rope Terminal, Stud, 5/16

Wire Rope Terminal, Stud, 5/32", 1/4-28 Right Hand Thread, Stainless S

Item#: 1440349
Wire Rope Terminal, Plain Ball, 3/16

Wire Rope Terminal, Plain Ball, 3/16", Stainless Steel

Item#: 1440287
Wire Rope Sleeve, 7/32

Wire Rope Sleeve, 3/16", Aluminum

Item#: 1440293
Screw Pin Anchor Shackle, 5/8

Screw Pin Anchor Shackle, 5/16", 1,500 lb WLL

Item#: 1424879
Tuff-Edge® Web Sling, Polyester, Silver, 8' Length, Sling, Web, Tuff-Edge, Eye & Eye, Type 3, Flat Eye, 2

Tuff-Edge® Web Sling, Polyester, Silver, 4' Length

Item#: 1412752
Flat Washer Property Class 10.9 M22, Flat Washer, Property Class 10.9, Carbon Steel, M22

Flat Washer Grade 12 Thru-Hardened Steel M10

Item#: 87511
Superbutt Connector 16 to 14 AWG Blue, Superbutt Connector, Extended Barrel, Blue, 16 to 14 AWG, 1.075

Superbutt Connector 16 to 14 AWG Blue

Item#: 94728
Stepdown Butt Connector 16 to 14/12 to 10 AWG, Stepdown Butt Connector, Crystal Clear Insulation, 16 to 14/12 to 10 AWG, Blue

Stepdown Butt Connector 16 to 14/12 to 10 AWG

Item#: 1495189
Wire Rope Terminal, Stud, 5/16

Wire Rope Terminal, Stud, 5/32", 1/4-28 Right Hand Thread, Stainless S

Item#: 1440349
Wire Rope, Steel, Vinyl Coated, 7x7, 1/16

Wire Rope, Steel, Vinyl Coated, 7x7, 3/32", 920 lbs Breaking Strength

Item#: 1439290
Wire Rope, Steel, Vinyl Coated, 7x19, 1/4

Wire Rope, Steel, Vinyl Coated, 7x19, 3/16", 4,200 lbs Breaking Streng

Item#: 1439334
Wire Rope Uncoated 1960 Safe Load 5/16

Wire Rope Uncoated 1960 Safe Load 5/16" x 100'

Item#: 63926

Product Description

• Stainless Steel
• Meets MIL-DTL-781

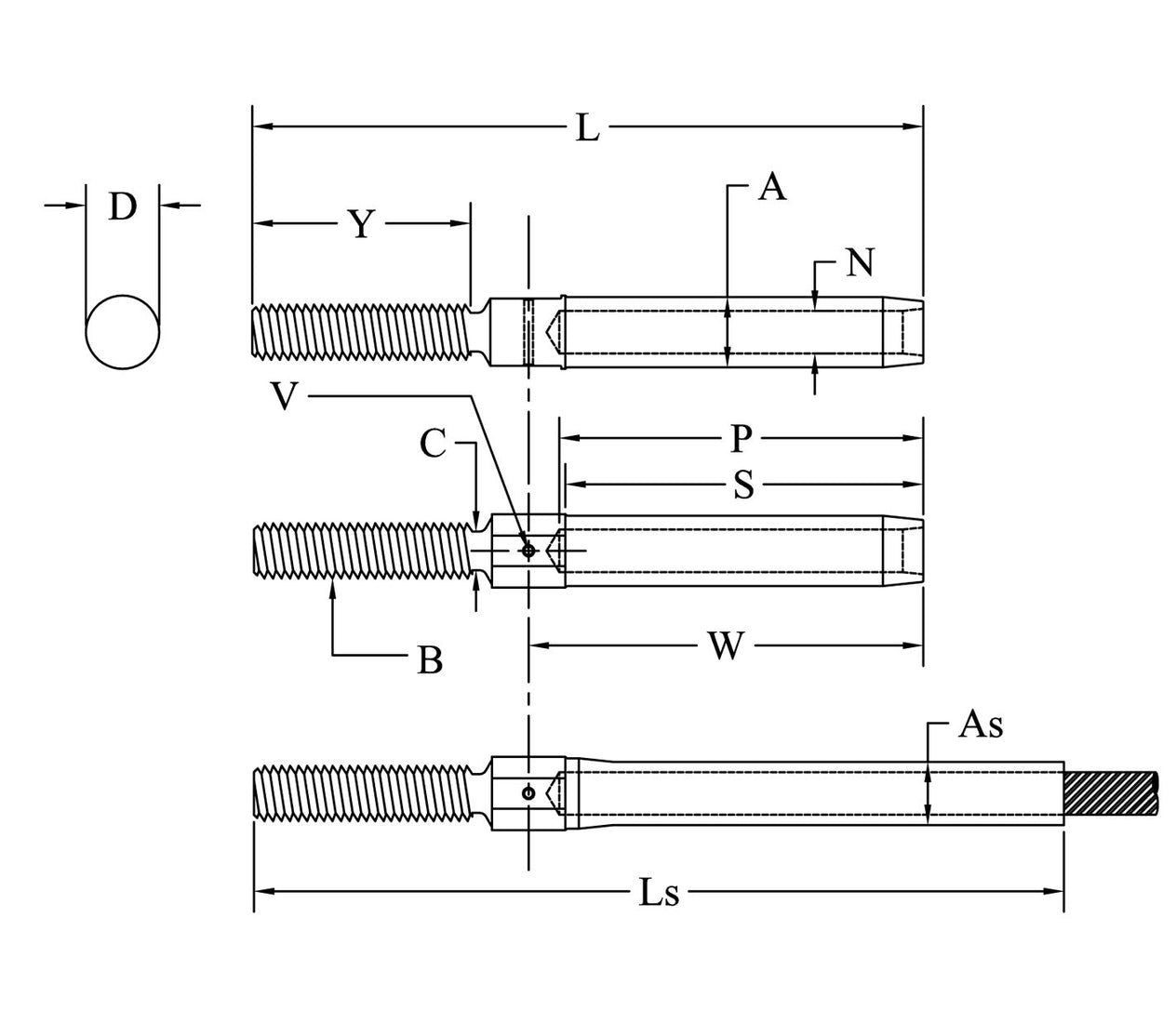

Technical Specifications

Item#: 1440258
Manufacturer Model #: MS21259-10LH
Cable Diameter 5/16 "
Thread Size 1/2-20
Thread Style Left Hand
Material Stainless Steel
A 0.635 "
As 0.563 "
B 1/2-20 "
C 0.467 "
D 0.688 "
L 5.844 "
Ls 6.270 "
N 0.328 "
P 3.011 "
S 2.938 "
W 3.026 "
Y 2.000 "
UNSPSC #: 31162812
TAA Compliant: Yes
