Home Material Handling Wire Rope Accessories Thimbles/Sleeves Wire Rope Sleeve, 3/16", Aluminum
Accessories
Wire Rope Sleeve, 7/32
Wire Rope Sleeve, 7/32

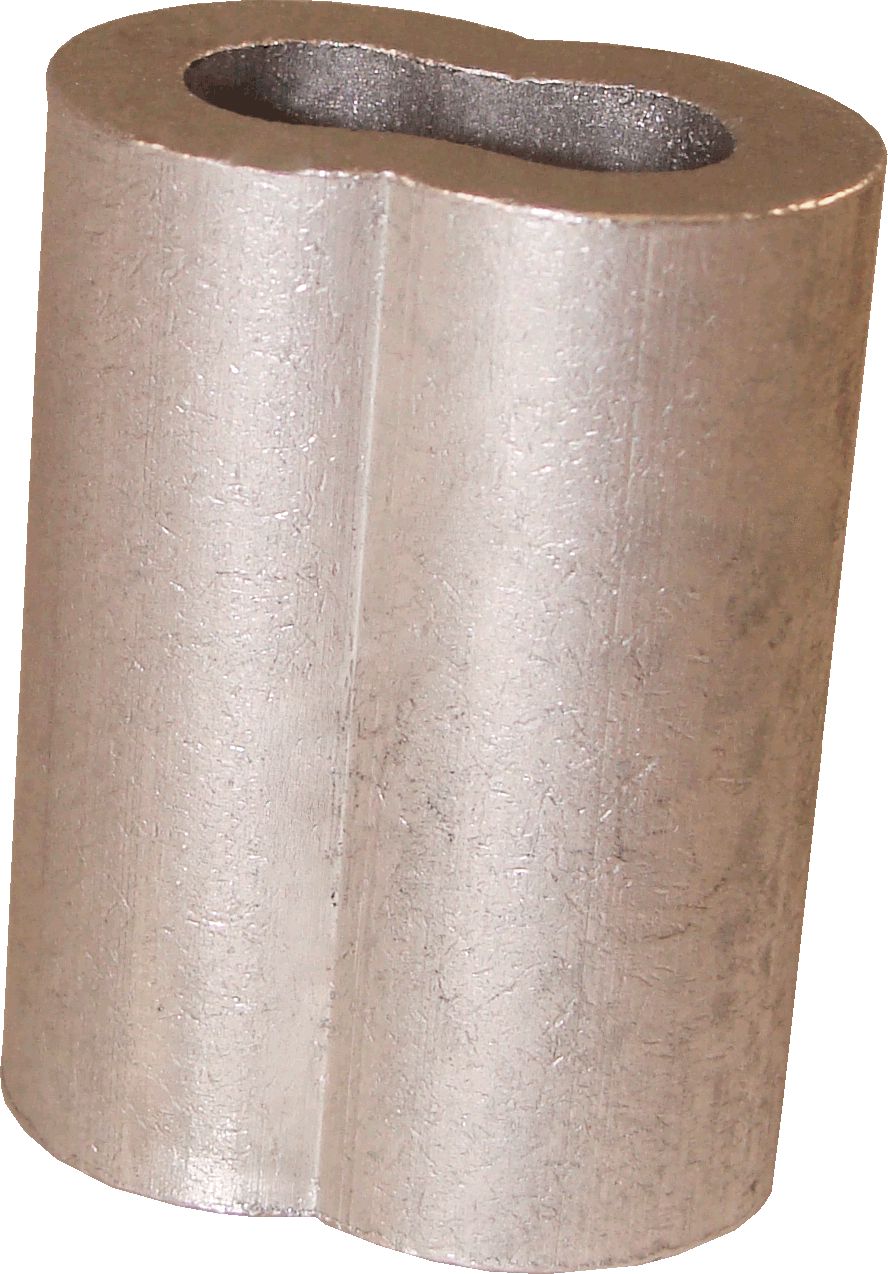

Wire Rope Sleeve, 3/16", Aluminum
(Pack of 10)

Item#: 1440293

Loos & Co. Inc.

Aluminum oval sleeves are capable of supporting a greater load than the rated breaking strength of the cable to which they are attached when properly applied with Locoloc® Hand Swager to bare cable on 3x7, 7x7, 7x19 and 6x19 constructions.

Read More
Check Availability

Catalog page#: 15-44

Frequently Bought Together

Wire Rope Clip, Forged, Galvanized, 1/8

Wire Rope Clip 7/8"

Item#: 14555
Wire Rope Clip, Malleable, Galvanized, 5/16

Wire Rope Clip, Malleable, Galvanized, 3/8"

Item#: 1442564
Wire Rope, Steel, Vinyl Coated, 7x7, 1/16

Wire Rope, Steel, Vinyl Coated, 7x7, 1/16", 480 lbs Breaking Strength

Item#: 1439135
Tarp Strap Epdm Rubber with Hooks 28

Tarp Strap Epdm Rubber with Hooks 24" Long

Item#: 99562
Quick Link 3/16

Quick Link 3/16" Chain Size 616 Lb Safe Load

Item#: 85522
Wire Rope Sleeve, 1/16

Wire Rope Sleeve, 1/16", Copper, Zinc Plated

Item#: 1440298
Butt Connector 22 to 18 AWG Red, Butt Connector, 2-Piece Heat Seal, Red, 22 to 18 AWG, 1.45

Butt Connector 22 to 18 AWG Red

Item#: 92822
Stepdown Butt Connector 22 to 18/16 to 14 AWG, Stepdown Butt Connector, Crystal Clear Insulation, 22 to 18/16 to 14 AWG

Stepdown Butt Connector 22 to 18/16 to 14 AWG

Item#: 1495188
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can

Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can

Item#: DA6152
Wire Rope Stop Sleeve, 1/32

Wire Rope Stop Sleeve, 1/8", Copper

Item#: 1440323
Wire Rope Sleeve, 1/8

Wire Rope Sleeve, 1/8", Copper

Item#: 1440403
Wire Rope Thimble, 7/32 - 1/4

Wire Rope Thimble, 7/32 - 1/4", Stainless Steel

Item#: 1440203
Wire Rope Clip, Forged, Galvanized, 1/8

Wire Rope Clip 7/8"

Item#: 14555
Wire Rope Clip, Malleable, Galvanized, 5/16

Wire Rope Clip, Malleable, Galvanized, 3/8"

Item#: 1442564
Wire Rope, Steel, Vinyl Coated, 7x7, 1/16

Wire Rope, Steel, Vinyl Coated, 7x7, 1/16", 480 lbs Breaking Strength

Item#: 1439135

Product Description

Aluminum oval sleeves are capable of supporting a greater load than the rated breaking strength of the cable to which they are attached when properly applied with Locoloc® Hand Swager to bare cable on 3x7, 7x7, 7x19 and 6x19 constructions.

Technical Specifications

Item#: 1440293
Manufacturer Model #: SL1-6
Type Sleeve
Material Aluminum
Cable Diameter 3/16 "
Inside Width 7/32 "
Width 27/64 "
Height 41/64 "
Length 1 "
Number of Crimps 4
UNSPSC #: 31162812
TAA Compliant: Yes
Weight: 0.33 lb
