Wire Rope Sleeve, 1/8", Copper, Zinc Plated
(Pack of
10)
SKU:1440328 Item#: 1440328
Copper oval sleeves are capable of supporting a greater load than the rated breaking strength of the cable to which they are attached when properly applied with Locoloc® Hand Swager to bare cable on 3x7, 7x7, 7x19 and 6x19 constructions.
• Meets MS51844
Couldn't load pickup availability
Catalog page#: 15-44
Frequently Bought Together
Wire Rope Clip, Forged, Galvanized, 5/16"
Couldn't load pickup availability
Wire Rope Clip, Malleable, Galvanized, 3/8"
Couldn't load pickup availability
Wire Rope, Steel, Vinyl Coated, 7x7, 1/16", 480 lbs Breaking Strength
Couldn't load pickup availability
Clevis Grab Hook, Grade 80, 3/8", 7,100 lb WLL
Couldn't load pickup availability
Spring Link, 5/16", 350 lb WLL, Zinc
Couldn't load pickup availability
Quick Link 3/8" Chain Size 2220 Lb Safe Load
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability

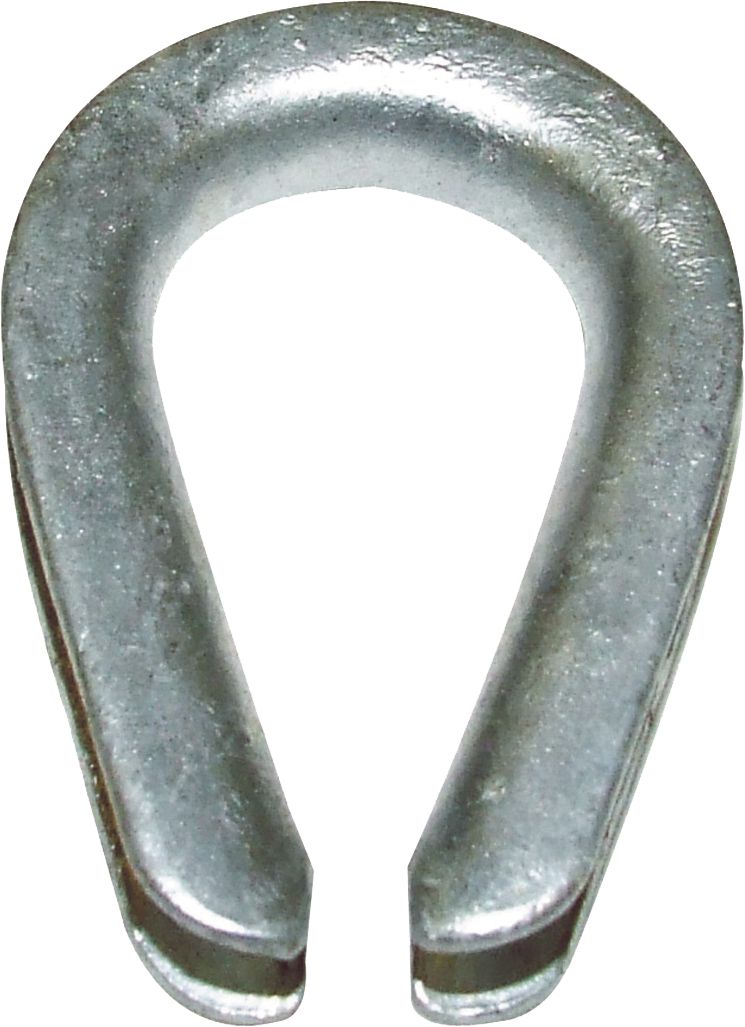

Wire Rope Thimble, 7/32 - 1/4", Stainless Steel
Couldn't load pickup availability
Wire Rope Thimble, 1/4", Stainless Steel
Couldn't load pickup availability
Wire Rope Sleeve, 1/8", Stainless Steel
Couldn't load pickup availability
Wire Rope Clip, Forged, Galvanized, 5/16"
Couldn't load pickup availability
Wire Rope Clip, Malleable, Galvanized, 3/8"
Couldn't load pickup availability
Wire Rope, Steel, Vinyl Coated, 7x7, 1/16", 480 lbs Breaking Strength
Couldn't load pickup availability
Product Description
Copper oval sleeves are capable of supporting a greater load than the rated breaking strength of the cable to which they are attached when properly applied with Locoloc® Hand Swager to bare cable on 3x7, 7x7, 7x19 and 6x19 constructions.• Meets MS51844
Technical Specifications
| Item#: | 1440328 |
|---|---|
| Manufacturer Model #: | SL2-4P |
| Type | Sleeve |
| Material | Copper |
| Finish | Zinc Plated |
| Cable Diameter | 1/8 " |
| Inside Width | 5/32 " |
| Width | 21/64 " |
| Height | 1/2 " |
| Length | 9/16 " |
| Number of Crimps | 3 |
| UNSPSC #: | 31162812 |
| TAA Compliant: | Yes |
| Weight: | 0.17 lb |
