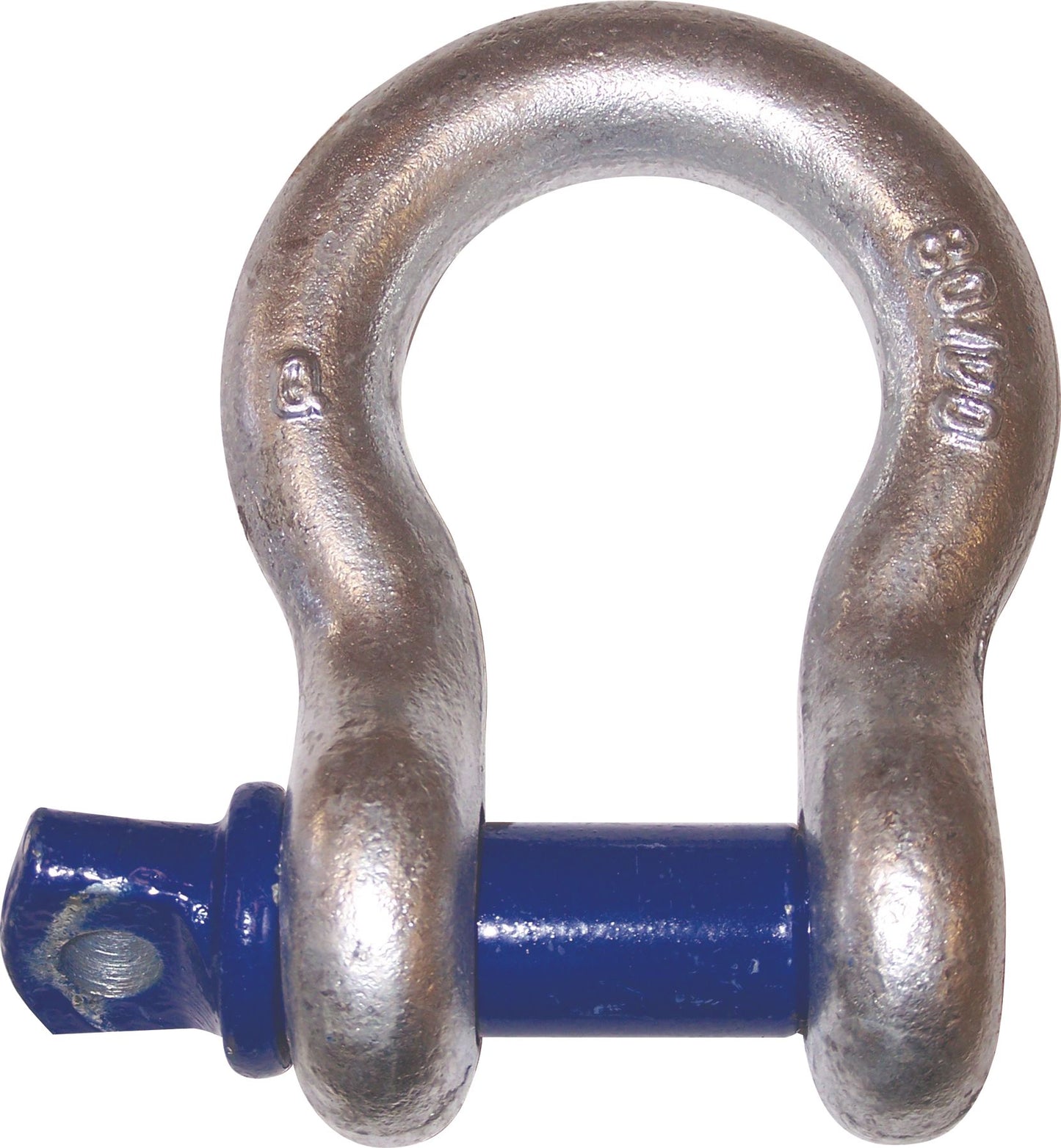

Anchor Shackle, Screw Pin, 1/4", 1,000 lb WLL, Carbon Steel, Galvanized
(Pack of
2)
SKU:1424878 Item#: 1424878
Screw Pin Anchor Shackles are ideal for those applications where frequent pin removal is needed.
• Hot-dipped galvanized to ASTM A153
• Proof load at 2 times Working Load Limit
• Ultimate load at 6 times the Working Load Limit
• Meets Federal Specification RR-C-271F, Type IVA, Grade A, Class 2
CAUTION: Do not exceed working load limits.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 15-21
Frequently Bought Together
Swivel Eye Bolt Snap, 5/8" Eye Size, 4-1/4" Length, Zinc Finish
Couldn't load pickup availability
Turned Eyebolt, Stainless Steel, 1/2" x 4"
Couldn't load pickup availability
Eye Bolts, Machinery, 5/16 x 1-1/8"
Couldn't load pickup availability
Wire Rope, Steel, Vinyl Coated, 7x7, 1/16", 480 lbs Breaking Strength
Couldn't load pickup availability
Wire Rope, Steel, Bare, 7x7, 1/16", 480 lbs Breaking Strength
Couldn't load pickup availability
Tarp Strap Epdm Rubber with Hooks 28" Long
Couldn't load pickup availability
Oversize Round Pin Anchor Shackle, Stainless Steel, 5/16", 1,300 lb WL
Couldn't load pickup availability
Screw Pin Anchor Shackle, 3/16", 500 lb WLL
Couldn't load pickup availability
Oversize Round Pin Anchor Shackle, Stainless Steel, 5/8", 4,000 lb WLL
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Product Description
Screw Pin Anchor Shackles are ideal for those applications where frequent pin removal is needed.• Hot-dipped galvanized to ASTM A153
• Proof load at 2 times Working Load Limit
• Ultimate load at 6 times the Working Load Limit
• Meets Federal Specification RR-C-271F, Type IVA, Grade A, Class 2
CAUTION: Do not exceed working load limits.
Technical Specifications
| Item#: | 1424878 |
|---|---|
| Type | Anchor Shackle |
| Style | Screw Pin |
| Body Material | Carbon Steel |
| Finish | Galvanized |
| Size | 1/4 " |
| Working Load Limit | 1,000 lb |
| Pin Diameter | 5/16 " |
| Pin Material | Alloy Steel |
| Width Between Eyes | 15/32 " |
| Bow Width | 3/4 " |
| Depth | 1-1/8 " |
| UNSPSC #: | 31162803 |
| TAA Compliant: | No |
| Weight: | 0.23 lb |
