Home Material Handling Hardware Shackles Oversize Bolt Anchor Shackle, Stainless Steel, 3/8", 1,500 lb WLL
Hardware
Oversize Bolt Anchor Shackle, Stainless Steel, 3/8
Oversize Bolt Anchor Shackle, Stainless Steel, 3/8

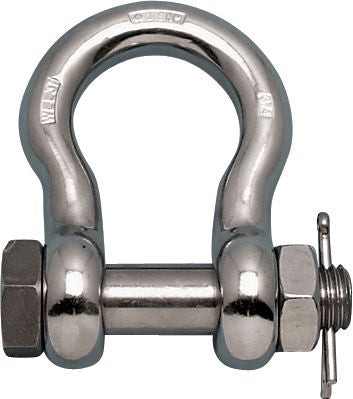

Anchor Shackle, Oversize Bolt, Stainless Steel, 3/8", 1,500 lb WLL
(Pack of 2)

Item#: 1427374

Lawson Products

Bolt, nut, and cotter pin shackles provide the most secure pin (bolt) arrangement of all styles. Will resist axial loading and torsional loading.
• 316 Stainless Steel
• Meets Federal Specification RR-C-271F, Type IVA, Class 3
• Used in applications where shackle is semi-permanent with infrequent removal
CAUTION: Do not exceed working load limits.

Read More

Catalog page#: 15-23

Frequently Bought Together

Shoulder Eyebolt, Machinery, Self-Colored, 7/16

Eye Bolts, Machinery, 3/8 x 1-1/4"

Item#: 85518
Turned Eyebolt, Zinc-Plated, 3/8

Turned Eyebolt, Zinc-Plated, 1/4" x 1"

Item#: 1442268
Spring Link, Stainless Steel, 3/16

Spring Link, Stainless Steel, 1/4", 170 LB WLL

Item#: 1427610
Wire Rope Sleeve, 7/32

Wire Rope Sleeve, 1/16", Aluminum

Item#: 1440343
Tarp Strap Epdm Rubber with Hooks 28

Tarp Strap Epdm Rubber with Hooks 14" Long

Item#: 99560
Screw Pin Anchor Shackle, 3/8

Screw Pin Anchor Shackle, 5/8", 9,000 lb WLL

Item#: 1429887
Round Pin Anchor Shackle, 3/16

Round Pin Anchor Shackle, 3/8", 3,000 lb WLL

Item#: 1429901
Bolt, Nut and Cotter Anchor Shackle, 1/2

Bolt, Nut and Cotter Anchor Shackle, 7/8", 17,000 lb WLL

Item#: 1429921
Screw Pin Anchor Shackle, 5/8

Screw Pin Anchor Shackle, 7/8", 13,000 lb WLL

Item#: 1424885
SAE Flat Washer Thru-Hardened Steel 1/4

SAE Flat Washer Thru-Hardened Steel 1/4"

Item#: 88435
Locknut with Nylon Insert Grade 8 5/16-24, Locknut with Nylon Insert, Grade 8, Alloy Steel, Yellow Zinc Finish, Fine Thread

SAE J995C Locknut with Nylon Insert Grade 8 1/2-13

Item#: 53983
IFI 100/107 Top Locknut Grade C 1-8, IFI 100/107 Top Locknut, Grade C, Alloy Steel, Zinc/Wax Finish, Coarse Thread

IFI 100/107 Top Locknut Grade C 5/8-11

Item#: 80933

Product Description

Bolt, nut, and cotter pin shackles provide the most secure pin (bolt) arrangement of all styles. Will resist axial loading and torsional loading.
• 316 Stainless Steel
• Meets Federal Specification RR-C-271F, Type IVA, Class 3
• Used in applications where shackle is semi-permanent with infrequent removal
CAUTION: Do not exceed working load limits.

Technical Specifications

Item#: 1427374
Type Anchor Shackle
Style Bolt, Nut and Cotter
Body Material 316-NM Stainless Steel
Size 3/8 "
Working Load Limit 1,500 lb
Pin Diameter 7/16 "
Pin Material 316-NM Stainless Steel
Width Between Eyes 21/32 "
Bow Width 15/16 "
Depth 1-7/16 "
UNSPSC #: 31132600
TAA Compliant: No
