Wire Rope Terminal, Eye End, 1/8", Stainless Steel
(Pack of
2)
SKU:1440301 Item#: 1440301
• Stainless Steel
• Meets MIL-DTL-781
Couldn't load pickup availability
Catalog page#: 15-43
Frequently Bought Together
Wire Rope Terminal, Eye End, 9/32", Stainless Steel
Couldn't load pickup availability
Wire Rope Terminal, Marine Eye End, 3/32", Stainless Steel
Couldn't load pickup availability
Wire Rope Terminal, Eye End, 1/16", Stainless Steel
Couldn't load pickup availability
Wire Rope Terminal, Eye End, 1/16", Stainless Steel
Couldn't load pickup availability

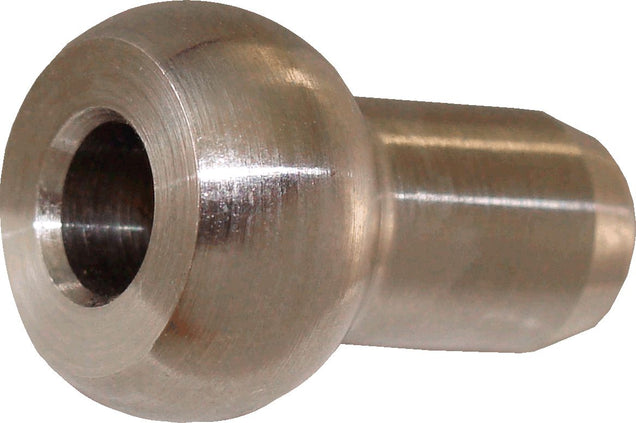

Wire Rope Terminal, Stud, 5/32", 1/4-28 Right Hand Thread, Stainless S
Couldn't load pickup availability

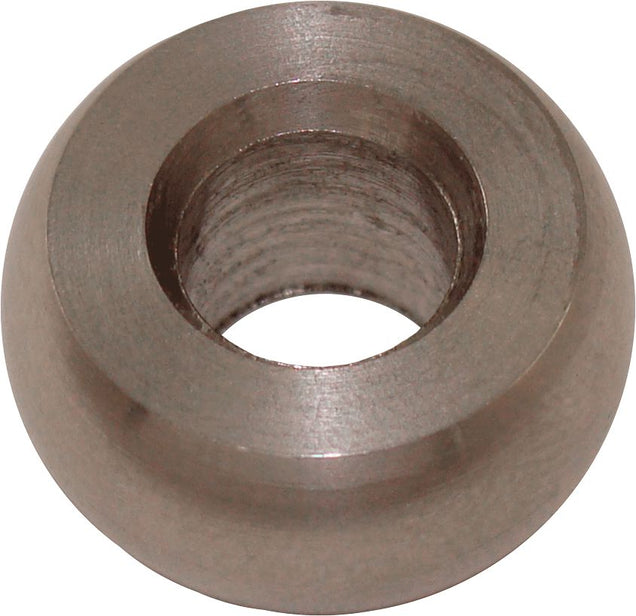

Wire Rope Terminal, Plain Ball, 3/16", Stainless Steel
Couldn't load pickup availability
Screw Pin Anchor Shackle, 5/8", 6,500 lb WLL
Couldn't load pickup availability
Wire Rope Sleeve, 1/16", Aluminum
Couldn't load pickup availability
Wire Rope Sleeve, 1/8", Copper, Zinc Plated
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Wire Rope, Steel, Bare, 7x7, 3/32", 920 lbs Breaking Strength
Couldn't load pickup availability
Wire Rope, Steel, Bare, 7x19, 1/8", 2,000 lbs Breaking Strength
Couldn't load pickup availability
Wire Rope Uncoated 1960 Safe Load 5/16" x 100'
Couldn't load pickup availability
Product Description
• Stainless Steel• Meets MIL-DTL-781

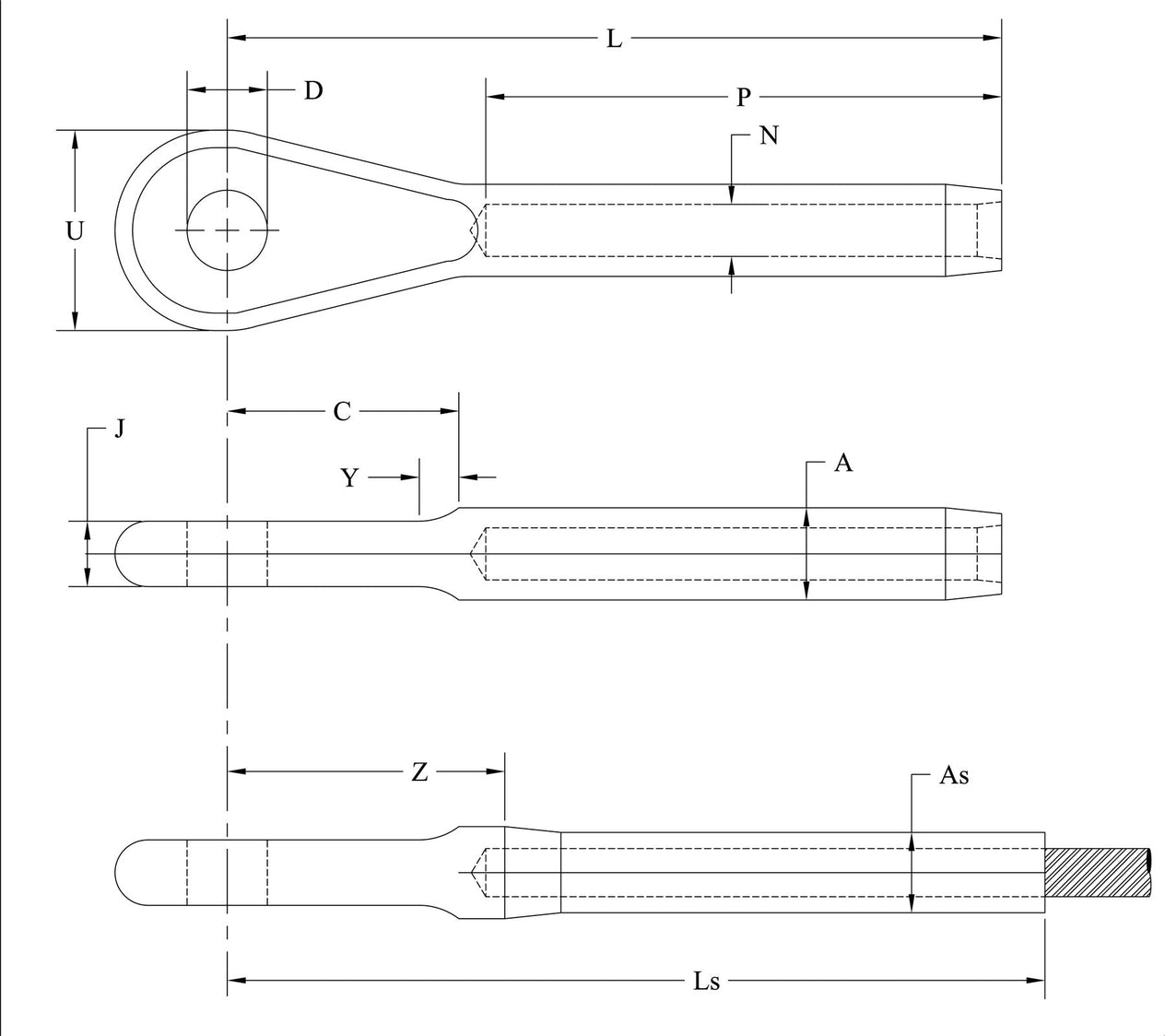

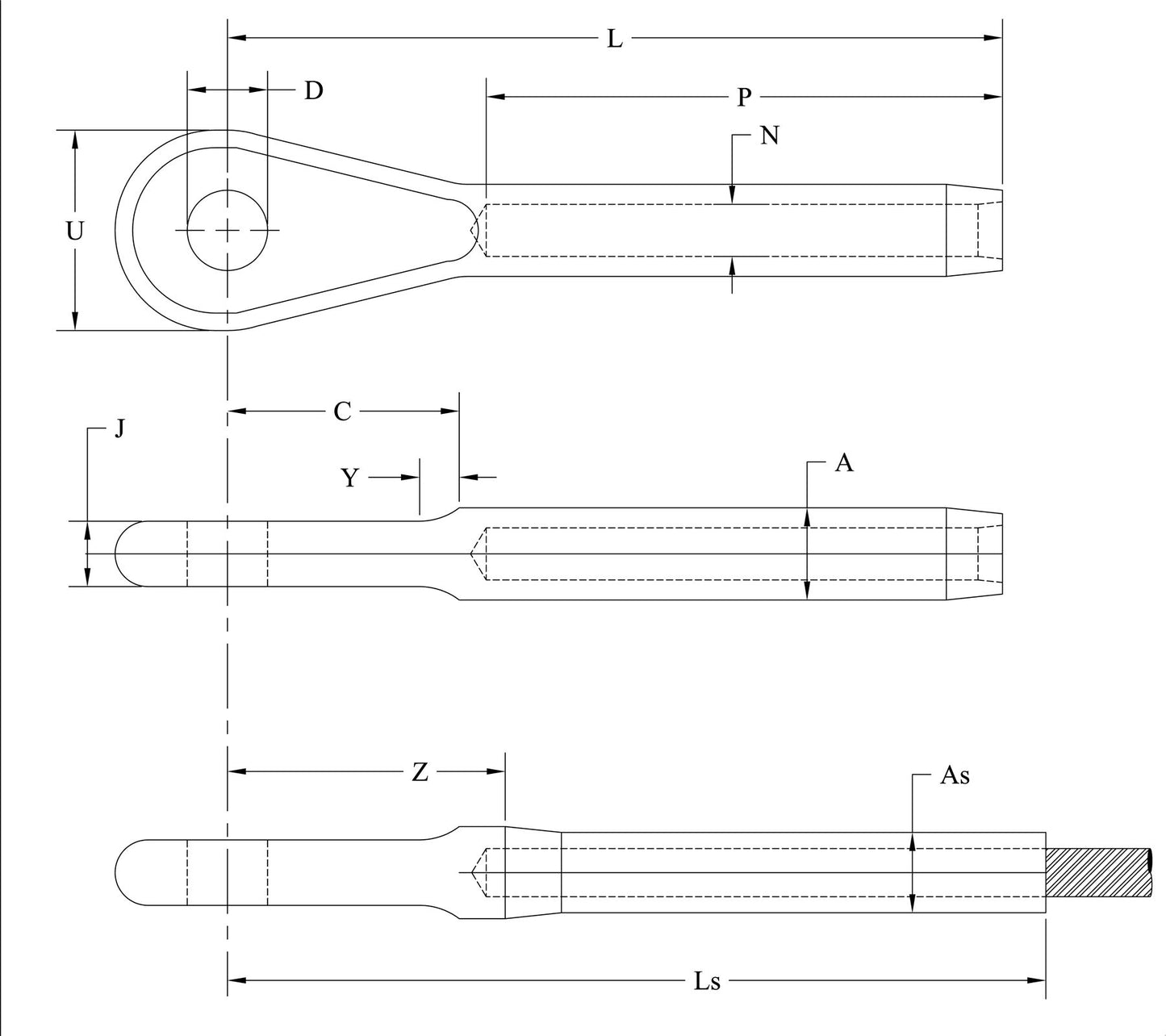

Technical Specifications
| Item#: | 1440301 |
|---|---|
| Type | Eye End |
| Cable Diameter | 1/8 " |
| Material | Stainless Steel |
| A | 0.250 " |
| As | 0.219 (+0.000 -0.005) " |
| C | 0.738 " |
| D | 0.190 " |
| J | 0.190 " |
| L | 2.337 " |
| Ls | 2.593 " |
| N | 0.141 " |
| P | 1.511 " |
| U | 0.500 " |
| Y | 0.103 " |
| Z | 0.900 " |
| UNSPSC #: | 31162812 |
| TAA Compliant: | Yes |
| Weight: | 0.07 lb |
