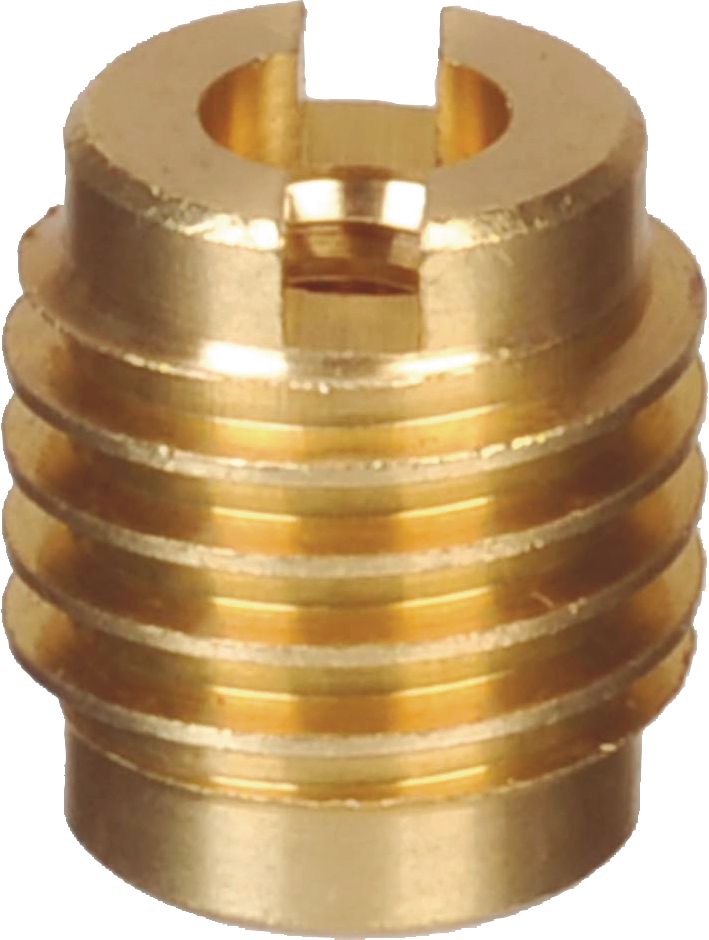

Wood Thread Insert, 10-24 Internal Thread, 3/8" Body Diameter, 0.5" Length, 0.08" Slot Depth, 0.07" Slot Width
(Pack of
10)
SKU:96742 Item#: 96742
• These solid brass inserts provide machine threads in particle board, solid wood, wood composites, plastics and rubber
• Easy to install and remove
• Knife-like threads slice through material with minimal displacement, eliminating puckering or swelling while providing greater pull-out strength than typical wood screws
1. Drill a hole the same size as the body diameter of the insert.2. Install insert with a screwdriver. (In woods, varnish is suggested as a lubricant.)3. Position the part to be attached and fasten down with a screw.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 6-20
Frequently Bought Together
Mechanic's Length Drill Bit HSS 1/4"
Couldn't load pickup availability
Mounted Flap Wheel 2" 60 Grit
Couldn't load pickup availability
Premium Reinforced Mini Cut-Off Wheel 3"
Couldn't load pickup availability
Master Series Penlight Flashlight
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Cable Tie 13.38" Black
Couldn't load pickup availability
Thread Restoring File Metric
Couldn't load pickup availability
Spiral Fluted Screw Extractor 7/16 to 9/16"
Couldn't load pickup availability
CS Thread Repair Insert M10 x 1.5 x 14
Couldn't load pickup availability
Jobber Length Drill Bit HSS 7/64"
Couldn't load pickup availability
Index-Tend Demo Wrecking Bar
Couldn't load pickup availability
0.5 HP Reciprocating Air Saw
Couldn't load pickup availability
Wood Thread Insert 5/16-24
Couldn't load pickup availability
Wood Thread Insert 3/8-16
Couldn't load pickup availability
Wood Thread Insert 5/16-18
Couldn't load pickup availability
Product Description
• These solid brass inserts provide machine threads in particle board, solid wood, wood composites, plastics and rubber• Easy to install and remove
• Knife-like threads slice through material with minimal displacement, eliminating puckering or swelling while providing greater pull-out strength than typical wood screws
1. Drill a hole the same size as the body diameter of the insert.2. Install insert with a screwdriver. (In woods, varnish is suggested as a lubricant.)3. Position the part to be attached and fasten down with a screw.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 96742 |
|---|---|
| Type | Wood Insert |
| Thread Size Internal | 10-24 |
| Body Diameter | 3/8 " |
| Length | 0.50 " |
| O.D. | .46 " |
| Slot Depth | .08 " |
| Slot Width | .07 " |
| UNSPSC #: | 27112810 |
| TAA Compliant: | Yes |
| Weight: | 0.16 lb |
Product Restrictions
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
