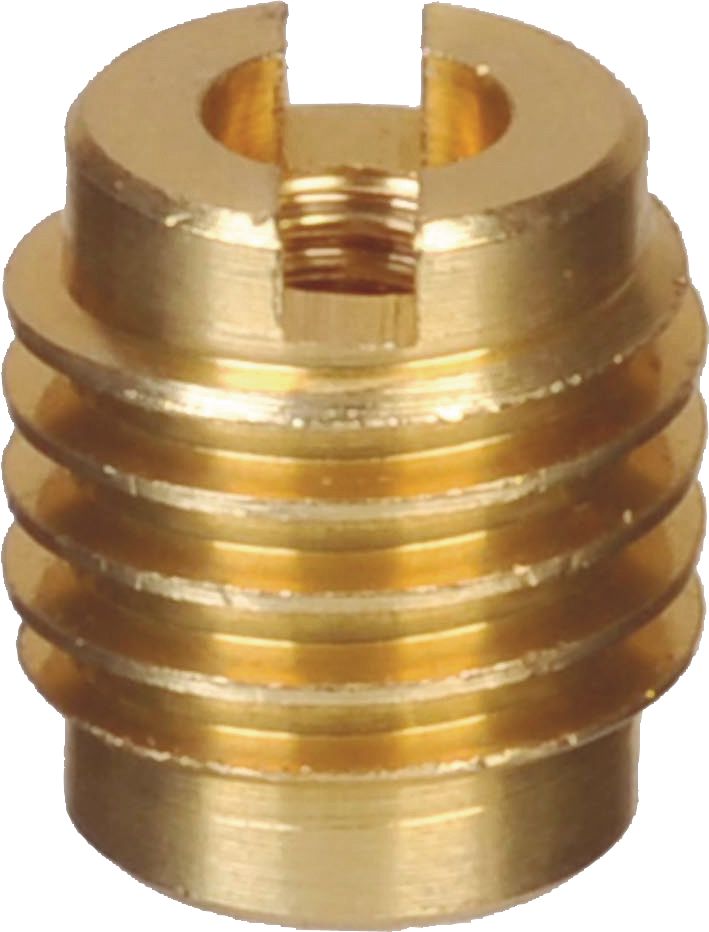

Wood Thread Insert, 10-32 Internal Thread, 3/8" Body Diameter, 0.5" Length, 0.08" Slot Depth, 0.07" Slot Width
(Pack of
10)
SKU:96743 Item#: 96743
• These solid brass inserts provide machine threads in particle board, solid wood, wood composites, plastics and rubber
• Easy to install and remove
• Knife-like threads slice through material with minimal displacement, eliminating puckering or swelling while providing greater pull-out strength than typical wood screws
1. Drill a hole the same size as the body diameter of the insert.2. Install insert with a screwdriver. (In woods, varnish is suggested as a lubricant.)3. Position the part to be attached and fasten down with a screw.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 6-20
Frequently Bought Together
Jobber Length Drill Bit HSS 9/32"
Couldn't load pickup availability
Curved Wood Handle Scratch Brush
Couldn't load pickup availability
Mechanic's Length Drill Bit Set 29Pcs
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
5PC Spiral Screw Extractor Set
Couldn't load pickup availability
Thread Repair Installation Tool Number 10 and M5
Couldn't load pickup availability
Tapered Flute Screw Extractor 7/16 to 1/2"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 5/32"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 7/64"
Couldn't load pickup availability
Twist-On Surface Conditioning Disc 2" Maroon
Couldn't load pickup availability
Wood Thread Insert Kit
Couldn't load pickup availability
Wood Thread Insert Kit
Couldn't load pickup availability
Product Description
• These solid brass inserts provide machine threads in particle board, solid wood, wood composites, plastics and rubber• Easy to install and remove
• Knife-like threads slice through material with minimal displacement, eliminating puckering or swelling while providing greater pull-out strength than typical wood screws
1. Drill a hole the same size as the body diameter of the insert.2. Install insert with a screwdriver. (In woods, varnish is suggested as a lubricant.)3. Position the part to be attached and fasten down with a screw.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 96743 |
|---|---|
| Type | Wood Insert |
| Thread Size Internal | 10-32 |
| Body Diameter | 3/8 " |
| Length | 0.50 " |
| O.D. | .46 " |
| Slot Depth | .08 " |
| Slot Width | .07 " |
| UNSPSC #: | 27112810 |
| TAA Compliant: | Yes |
| Weight: | 0.15 lb |
