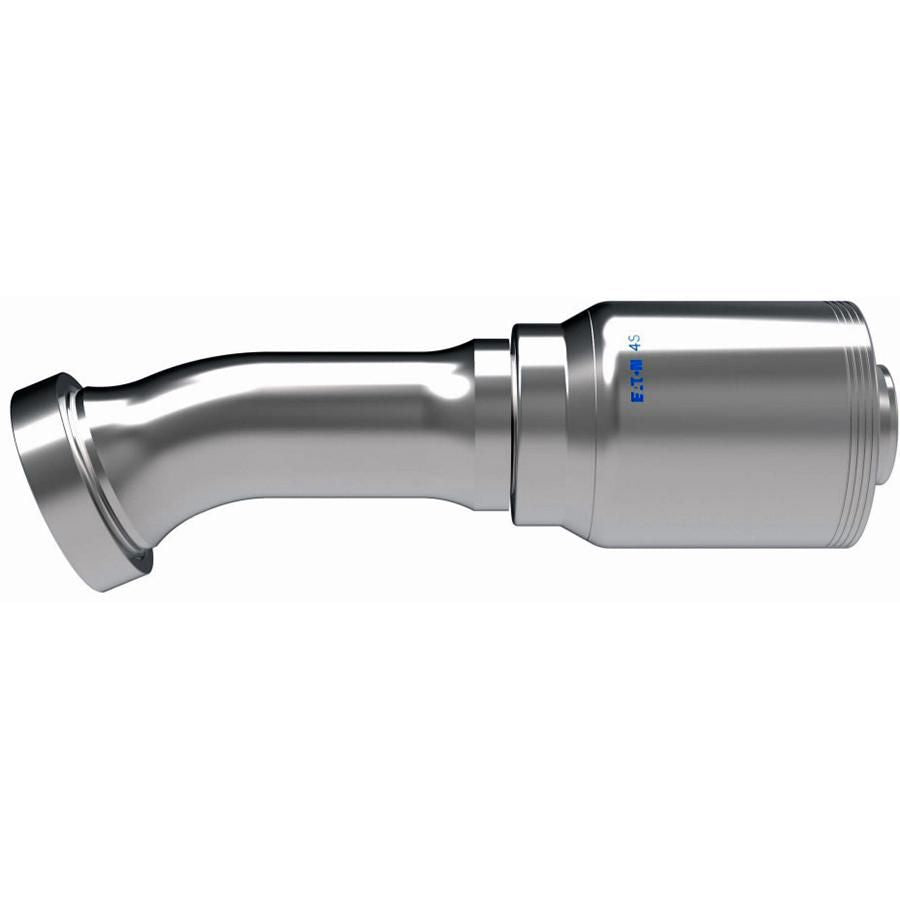

Z Series Crimp-On Elbow, Carbon Steel, Split Flange, SAE 61, 22.5°, 1 (-16) x 2" (-20)
(Pack of 5)

Item#: 16815M05

Danfoss®

SAE Code 61 Flange Kits sold separately
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Read More
Check Availability

Frequently Bought Together


Crimp-On Hose Coupling 1/4" x 9/16-18

Item#: 88359KH

Crimp-On Coupling 3/8" x 11/16-16

Item#: 51141KH

KH Series Crimp-On Elbow Flare 90° 1/2" x 3/4-16

Item#: 88382KH

Crimp-On Hose Coupling 1/2" x 7/8-14

Item#: 88365KH

Crimp-On Hose Coupling 3/8" x 3/4-16

Item#: 88361KH

Hydraulic Cap Nut, 9/16-18"(06) Female JIC SAE 37 Degree Flare

Item#: 86150

Hose Clamp 304 SS 1-5/16 to 2-1/4"

Item#: 86730

DOT Compression Connector Male Brass 3/8 x 1/4"

Item#: 84268

DOT Connector Male Brass 1/4 x 1/8-27

Item#: 57504

SAE Flat Washer Thru-Hardened Steel 3/8"

Item#: 88437

USS Flat Washer Thru-Hardened Steel 1/4"

Item#: FA88445

Flat Washer Grade 12 Thru-Hardened Steel M8

Item#: 87510

Product Description

SAE Code 61 Flange Kits sold separately
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Technical Specifications

Item#: 16815M05
Manufacturer Model #: 16Z-H04
Manufacturer Series Number Z Series
Attachment Method Crimp-On
Fitting Dimension A (Hose) 1 (-16) "
Dash Size -16
Gender Split Flange
Fitting End Style Split Flange Code 61
Fitting End Type Code 61
Fitting Angle 22.5 °
Fitting Dimension B (Working End) 2.00 (-20)
Flange Diameter 2 "
Weatherhead No. 16Z-H04
O.D. Tube Size 1-1/4
Size (-16)X(-20)
Material Carbon Steel
UNSPSC #: 27121705
TAA Compliant: No
Weight: 5.53 lb
