Home Hydraulics Hydraulic End Fittings Z Series Crimp-On Elbow 90° 5/8" x 1-1/16-12
End Fittings

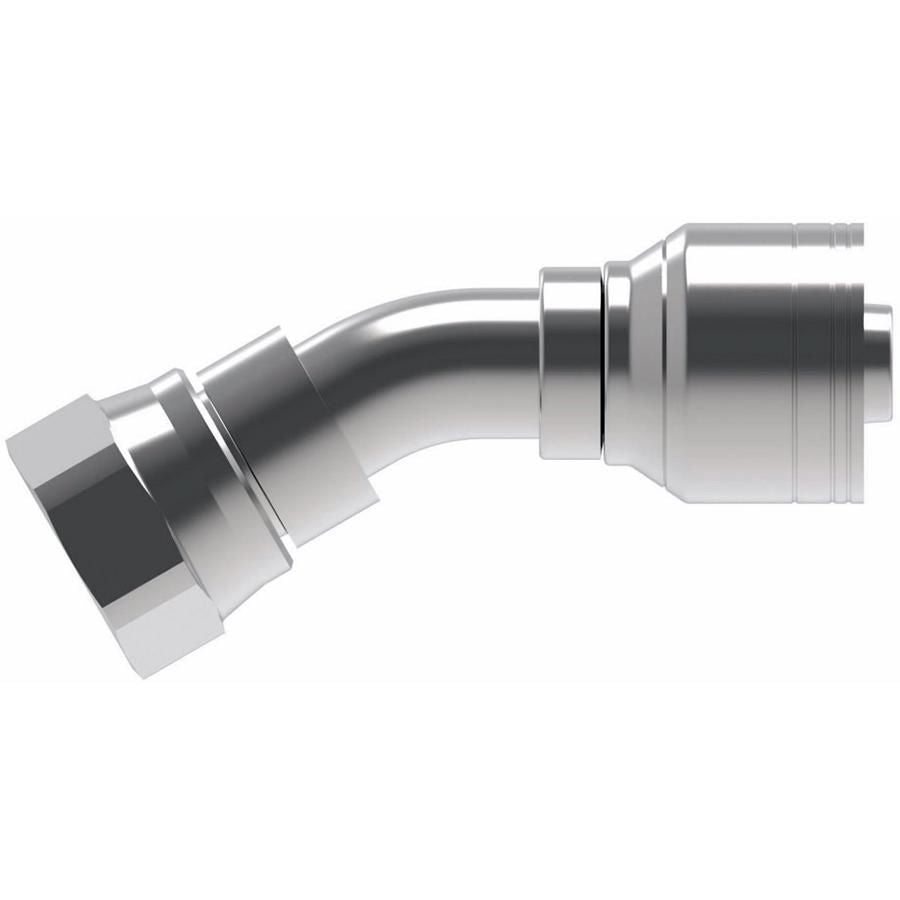

Z Series Crimp-On Elbow, Carbon Steel, Female JIC 37°, Flare 30°, 5/8" (-10) x 1-1/16-12 (-12)
(Pack of 10)

Item#: 23225

Danfoss®

These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Read More

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Catalog page#: 8-12

Frequently Bought Together


Z Series Crimp-On Hose End 1/2" x 13/16-16

Item#: 16709

Crimp-On Hose Coupling 3/4" x 1-1/16-12

Item#: 88372KH

Z Series Crimp-On Hose End 1/2" x 1/2-14

Item#: 16584

Z Series Crimp-On Hose End 1/4" x 9/16-18

Item#: 16703

Z Series Crimp-On Hose End 1/2" x 7/8-14

Item#: 16616

Hydraulic Cap Nut, 7/8-14"(10) Female JIC SAE 37 Degree Flare

Item#: 86152

Hose Clamp 304 SS 9/16 to 1-1/16"

Item#: 86725

Silicone Heater/Coolant Hose Clamp 9/16 to 1-1/16"

Item#: 88718

DOT Union Nylon 3/8 x 3/8"

Item#: 91820

USS Flat Washer Thru-Hardened Steel 5/16"

Item#: 88446

Stepdown Butt Connector 22 to 18/16 to 14 AWG

Item#: 1495188

Waterproof Work Aqua Light 66 LED

Item#: DY80000105

Product Description

These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Technical Specifications

Item#: 23225
Manufacturer Model #: 10Z-L22
Manufacturer Series Number Z Series
Attachment Method Crimp-On
Fitting Dimension A (Hose) 5/8 (-10) "
Dash Size -10
Gender Female
Fitting End Style JIC 37 Degree Flare
Fitting End Type Swivel
Fitting Angle 30 °
Fitting Dimension B (Working End) 1-1/16-12 (-12)
Weatherhead No. 10Z-L22
O.D. Tube Size 3/4
Size (-10)X(-12)
Hex Size 1-1/4 "
Material Carbon Steel
UNSPSC #: 27121700
TAA Compliant: No
