Home End Fittings Z Series Crimp-On Elbow Flare 90° 3/4" x 1-1/16-12
End Fittings

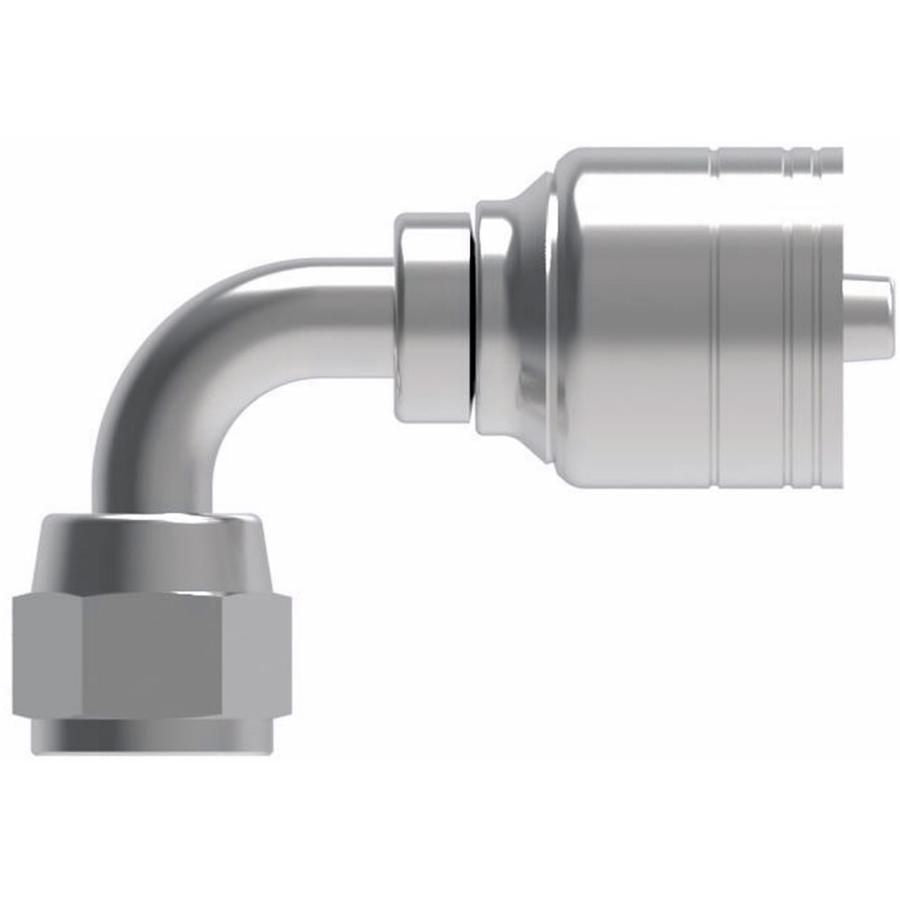

Z Series Crimp-On Elbow Flare 90° 3/4" x 1-1/16-12
(Pack of 1.0)

Danfoss®

These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Read More
Check Availability

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Catalog Page#: 8-12, 8-22

Frequently Bought Together


Z Series Crimp-On Hose End 1/2" x 13/16-16

Item#: 16709

Z Series Crimp-On Hose End 3/8" x 11/16-16

Item#: 16706

Z Series Crimp-On Hose End 1/2" x 1/2-14

Item#: 16584

Hydraulic Hose Protector 4 x 2-1/2" Yellow

Item#: 62379

Straight Thread O-Ring Buna-N 0.644 x 0.087"

Item#: 93617

Z Series Crimp-On Hose End 1/2" x 13/16-16

Item#: 16709

DOT Union Brass 3/8 x 3/8"

Item#: 57500

Pipe Bushing Brass 3/8-18 x 1/4-18

Item#: 5284

Ball Check Grease Fitting Straight

Item#: 6200

Butt Connector 16 to 14 AWG Blue

Item#: 92823

180-degree Wide Beam Head Light with Side Light

Item#: 1639013

USS Flat Washer Thru-Hardened Steel 5/16"

Item#: 88446

Product Description

These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Technical Specifications

Item#: 16653
Manufacturer Series Number Z Series
Attachment Method Crimp-On
Fitting Dimension A (Hose) 3/4 (-12) "
Dash Size -12
Gender Female
Fitting End Style JIC 37 Degree Flare
Fitting End Type Swivel
Fitting Angle 90 °
Fitting Dimension B (Working End) 1-1/16-12 (-12)
Weatherhead No. 12Z-672
O.D. Tube Size 3/4
Size (-12)X(-12)
Hex Size 1-1/4 "
Material Carbon Steel
UNSPSC #: 27121700
TAA Compliant: Yes
Weight: 0.66 lb

Product Restrictions

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
