Home End Fittings Z Series Crimp-On Hose End 1-1/4 x 2.81"
End Fittings

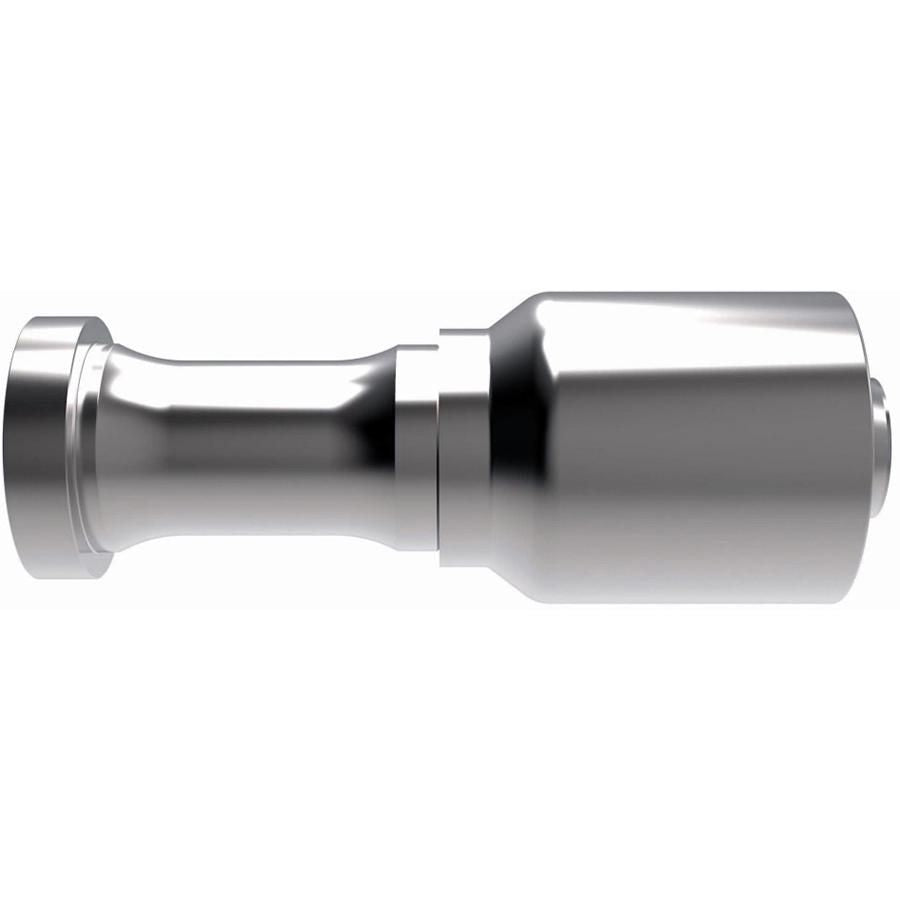

Z Series Hydraulic Crimp-On Hose End, Straight, Carbon Steel, Split Flange Code 61, 1-1/4 (-20) x 2.81 (-32)
(Pack of 5)

Item#: 16803M05

Danfoss®

SAE Code 61 Flange Kits sold separately
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Read More
Check Availability

Frequently Bought Together


Crimp-On Coupling 3/8" x 11/16-16

Item#: 51141KH

KH Series Crimp-On Elbow Flare 90° 1/2" x 3/4-16

Item#: 88382KH

Z Series Crimp-On Elbow Flare 90° 1/2" x 3/4-16

Item#: 16649

Hydraulic Cap Nut, 9/16-18"(06) Female JIC SAE 37 Degree Flare

Item#: 86150

Crimp-On Hose Coupling 3/8" x 3/4-16

Item#: 88361KH

Hydraulic Cap Nut, 1-5/16-12"(16) Female JIC SAE 37 Degree Flare

Item#: 86154

DOT Compression Connector Male Brass 3/8 x 1/4"

Item#: 84268

DOT Connector Male Brass 1/4 x 1/8-27

Item#: 57504

Z Series Crimp-On Hose End 3/8" x 9/16-18

Item#: 16613

USS Flat Washer Thru-Hardened Steel 1/4"

Item#: FA88445

Vision Pro Super

Item#: DY21061040

Flat Washer Grade 12 Thru-Hardened Steel M8

Item#: 87510

Product Description

SAE Code 61 Flange Kits sold separately
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Technical Specifications

Item#: 16803M05
Manufacturer Model #: 20Z-G32
Manufacturer Series Number Z Series
Attachment Method Crimp-On
Fitting Dimension A (Hose) 1-1/4 (-20) "
Dash Size -20
Gender Split Flange
Fitting End Style Split Flange Code 61
Fitting End Type Code 61
Fitting Angle Straight
Fitting Dimension B (Working End) 2.81 (-32)
Flange Diameter 2.81 "
Weatherhead No. 20Z-G32
Flange Size 2 "
Size (-20)X(-32)
Material Carbon Steel
UNSPSC #: 27121700
TAA Compliant: No
Weight: 9.46 lb
