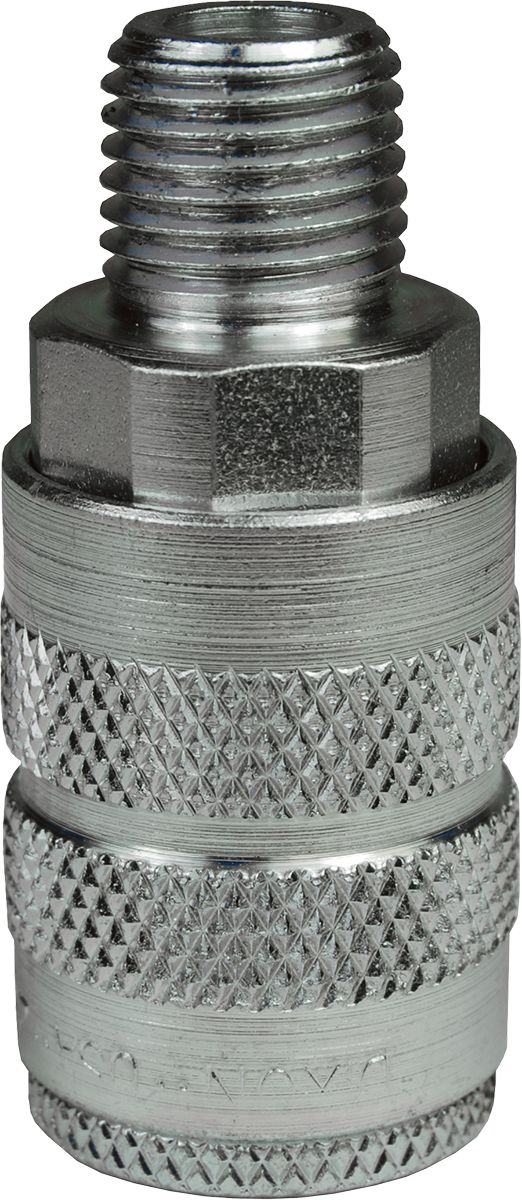

1/4" IND COUPLER, 1/4" M-NPTF, 303S
(Pack of
1)
SKU:1593566 Item#: 1593566
These heavy-duty sleeve-type couplers feature a built-in sleeve guard to minimize accidental disconnect. Couplers feature stainless steel coupling balls and springs for corrosion resistance.
• Maximum working pressure: 300 PSI
• Temperature range: –40°F to +250°F (–40°C to +121°C)
Standard or Industrial Interchange Design
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 1/4" FNPT
Couldn't load pickup availability
Quick Connect Coupler Steel 1/2" x 1/2-14
Couldn't load pickup availability
Quick Disconnect Coupler Steel 3/8" x 3/8-18
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Hose Barb Brass 5/8" x 1/2-14
Couldn't load pickup availability
Pipe Street Elbow Brass 90° 3/8-18 x 3/8-18
Couldn't load pickup availability
Hose Clamp 304 SS 3/4 to 1-3/4"
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2 x 3/4-16"
Couldn't load pickup availability
Quick Disconnect Brass Coupler With Steel Sleeve 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Product Description
These heavy-duty sleeve-type couplers feature a built-in sleeve guard to minimize accidental disconnect. Couplers feature stainless steel coupling balls and springs for corrosion resistance.• Maximum working pressure: 300 PSI
• Temperature range: –40°F to +250°F (–40°C to +121°C)
Standard or Industrial Interchange Design
Technical Specifications
| Item#: | 1593566 |
|---|---|
| Manufacturer Model #: | 2FM2-S |
| Type | Coupler |
| Style | Industrial |
| Body Size | 1/4 " |
| Thread Style | NPTF |
| Thread Size | 1/4 " |
| Working Pressure | 500 PSI |
| Material | 303 Stainless Steel |
| Length | 2.04 " |
| Seal Material | Nitrile |
| Hex Size | 3/4 " |
| Locking Mechanism | 6 Ball |
| Flow | 27 ft³/min |
| UNSPSC #: | 27131613 |
| TAA Compliant: | Yes |
| Weight: | 0.195 lb |
