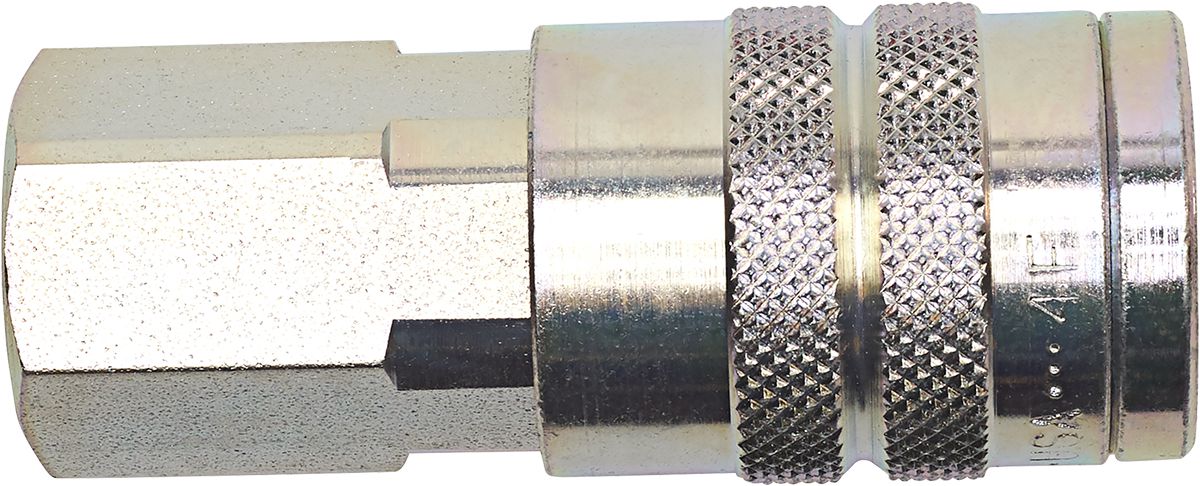

Heavy-Duty Quick Disconnect Coupler, Steel, Standard Industrial, Female NPTF, 1/2" Body Size, 1/2-14" Thread Size
(Pack of
1)
SKU:11934 Item#: 11934
These heavy-duty sleeve-type couplers feature a built-in sleeve guard to minimize accidental disconnect. The plugs feature a ball swivel design to enhance air line flexibility and help prevent repetitive motion injury. Couplers feature stainless steel coupling balls and springs for corrosion resistance.
• Maximum working pressure: 300 PSI
• Temperature range: –40°F to +250°F (–40°C to +121°C)
Standard or Industrial Interchange Design
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 8-157
Frequently Bought Together
Coupler, Schrader, 1/4'' Body, 1/4-18 Female NPT, Aluminum
Couldn't load pickup availability
Universal Safety Coupler Aluminum 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Brass 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 3/8" x 3/8-18
Couldn't load pickup availability
Hose Barb Brass 5/16" x 3/8-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp 13/16 to 1-1/2"
Couldn't load pickup availability
Hose Clamp 304 SS 11/16 to 1-1/2"
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/2" x 1/2-14
Couldn't load pickup availability
Hose Barb Hose Mender Brass 3/16 x 3/16"
Couldn't load pickup availability
Quick Disconnect Plug Brass 1/4" x 1/4-18
Couldn't load pickup availability
Cable Tie 13.38" Black
Couldn't load pickup availability
Interchangeable Hex Bit Set 20Pc Torx
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Nemesis Safety Glasses with Anti-Fog Coating, Smoke Lenses, Black Frame
Couldn't load pickup availability
CryoBoost Drill Bit Set 29PC 1/16"-1/2" By 1/64" Increments
Couldn't load pickup availability
Quick Disconnect Coupler Steel 3/8" x 1/4-18
Couldn't load pickup availability
Product Description
These heavy-duty sleeve-type couplers feature a built-in sleeve guard to minimize accidental disconnect. The plugs feature a ball swivel design to enhance air line flexibility and help prevent repetitive motion injury. Couplers feature stainless steel coupling balls and springs for corrosion resistance.• Maximum working pressure: 300 PSI
• Temperature range: –40°F to +250°F (–40°C to +121°C)
Standard or Industrial Interchange Design
Technical Specifications
| Item#: | 11934 |
|---|---|
| Description | Heavy-Duty Quick Disconnect |
| Type | Coupler |
| Style | Standard Industrial |
| Body Size | 1/2 " |
| Thread Style | Female NPTF |
| Thread Size | 1/2-14 |
| Working Pressure | 300 PSI |
| Material | Steel |
| UNSPSC #: | 27131613 |
| TAA Compliant: | No |
| Weight: | 0.52 lb |
