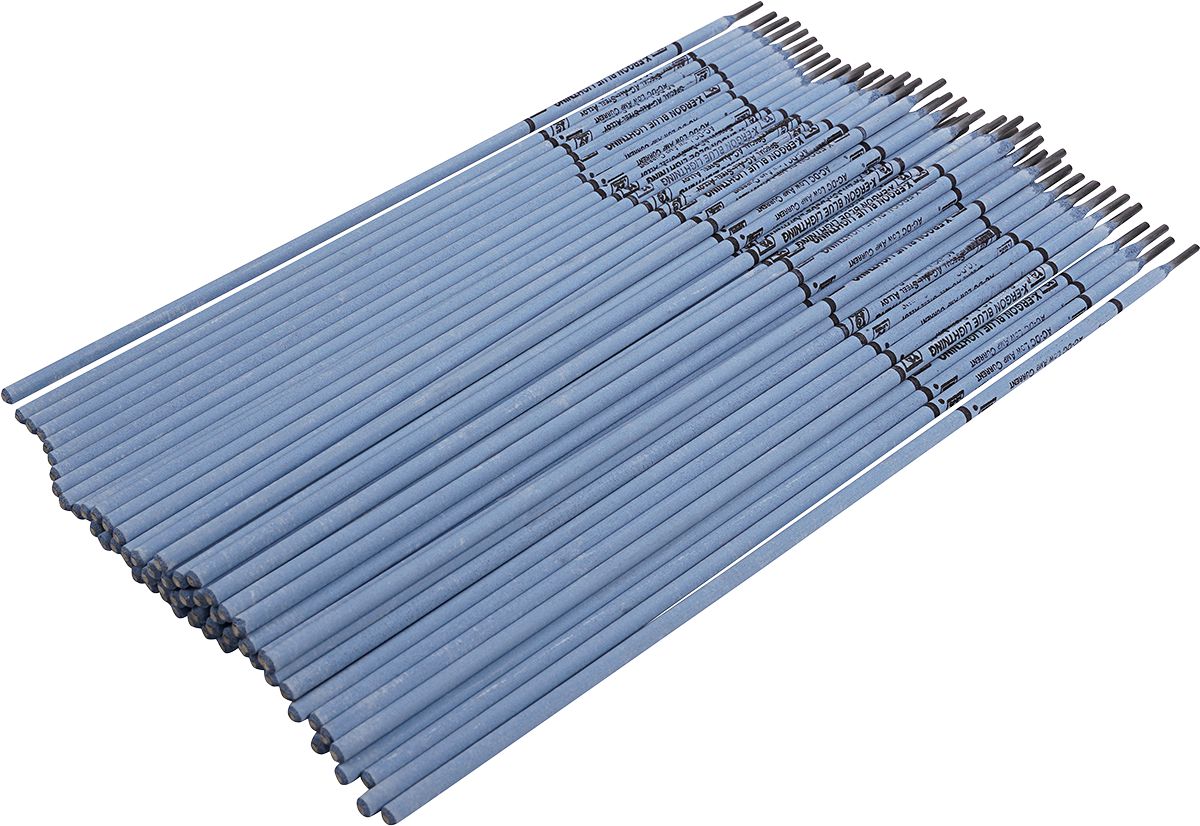

100 Blue Lightning Tough Duplex Alloy 5/32
(Pack of 5)

Lawson Products

A tough duplex alloy designed for dissimilar welding applications of ferrous metals (except cast iron).
• AC Welding – Special flux coating enhances operability on buzz boxes and DC inverter welders
• High Strength – Resistant to heat and corrosion, but still machinable
• High Elongation – Tough welds stand up to impact and shock
• Versatile – Welds steel, stainless steel, manganese steel, HY steels, alloy steels, tool steels and nickel alloys to steel and dissimilar combinations of these alloys
• All-position welding and easy slag removal
• Tensile strength: – As deposited: 95,000 PSI/655 MPa – Work Hardened: Up to 130,000 PSI/896 MPa
• Hardness: – As Deposited: 93 Rb – Work hardened: Up to 35 Rc
• Elongation: 30%
• Machinability: Excellent
• Heat Resistance: Good
• Corrosion Resistance: Good
• Current: DCEP (DC+) or AC

Check Availability

Quantity

Frequently Bought Together

No product placeholder

100 Blue Lightning Tough Duplex Alloy 1/8

Item#: EG10094002

333 Dissimilar Steel MIG Welding Wire 0.045"

333 Dissimilar Steel Stick Rod Electrode 1/8"

Vision Pro Super

Item#: DY21061040

Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece

Item#: DY89320050

Stepdown Butt Connector 22 to 18/16 to 14 AWG

X-Tractalloy Welding Electrode Non-Conductive Flux 1/8 3/32 1LB EA

Item#: EG00494502

ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.03"

Rosin Core Solder 0.032"

3880 Stainless Steel TIG Wire 3/32"

331 Mild and Carbon Steel MIG Welding Wire 0.03"

211 Cast Iron TIG Wire 3/32"

Product Description

A tough duplex alloy designed for dissimilar welding applications of ferrous metals (except cast iron).
• AC Welding – Special flux coating enhances operability on buzz boxes and DC inverter welders
• High Strength – Resistant to heat and corrosion, but still machinable
• High Elongation – Tough welds stand up to impact and shock
• Versatile – Welds steel, stainless steel, manganese steel, HY steels, alloy steels, tool steels and nickel alloys to steel and dissimilar combinations of these alloys
• All-position welding and easy slag removal
• Tensile strength: – As deposited: 95,000 PSI/655 MPa – Work Hardened: Up to 130,000 PSI/896 MPa
• Hardness: – As Deposited: 93 Rb – Work hardened: Up to 35 Rc
• Elongation: 30%
• Machinability: Excellent
• Heat Resistance: Good
• Corrosion Resistance: Good
• Current: DCEP (DC+) or AC

Technical Specifications

Item#:	EG10030000
Welding Process	Stick
Type	Electrode
Diameter	5/32 "
Tensile Strength	130,000 PSI
Elongation	30 %
Hardness	35 HRC
Polarity	DCEP
UNSPSC #:	23271810
TAA Compliant:	Yes
Weight:	5.9 lb
