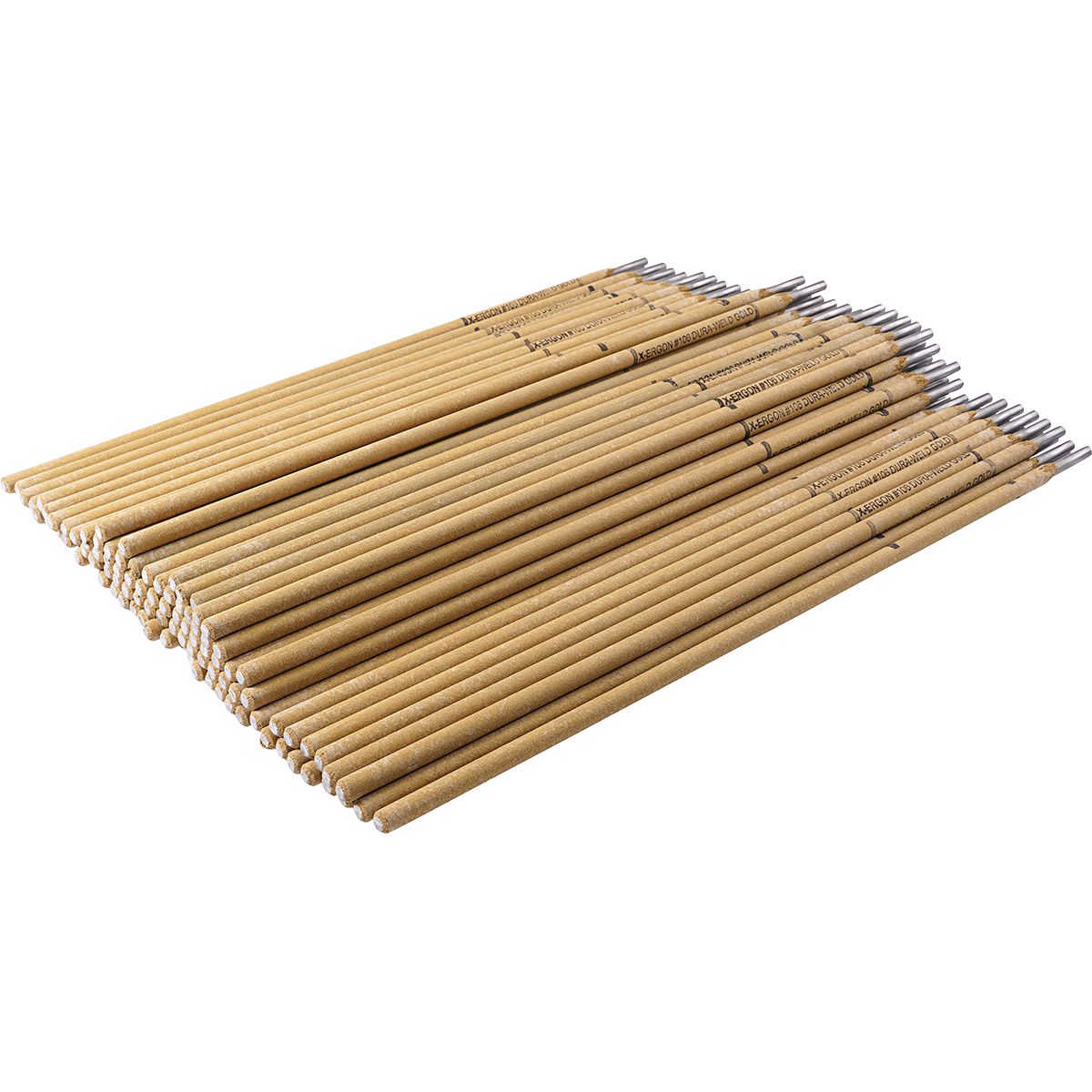

106 Mild Steel All Purpose Electrode
(Pack of
2.0)
Dura-Weld Gold has a special Chem-A-Tized2 flux coating that provides the best all-position performance of any steel electrode and allows it to operate at lower amperages. The flux has cleaning agents that remove oxides and contaminates from the weld, including rust, grease and paint… it even welds through water.
• Moisture proof flux – guaranteed to never go bad when stored
• Superior all-position weldability with the exclusive Chem-A-Tized2 process
• Welds contaminated steel – less pre-cleaning and weld clean-up
• Very easy to use – practically welds by itself with little or no-spatter
• Tensile strength: Up to 83,000 psi/572 Mpa
• Yield strength: 69,000 psi/476 Mpa
• Elongation: 25%
• Machinability: Excellent
• Hardness: 85 Rb
• Impact: 20 ft-lbs.
• Current: DC or AC
Remove cracked or fatigued metal by grinding or gouging with Arc-Prep #161 electrode. Bevel heavy sections before welding. Use AC or DC current. Use a contact or a minimum arc length with a weave or stringer bead technique. Pass-over-pass can be used without chipping slag in multi-pass welds. Allow to cool slowly.
Frequently Bought Together
331 Mild and Carbon Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
Solid Solder 1/32"
Couldn't load pickup availability
Oxy Acetylene Fuel Gas Single Replacement Flint
Couldn't load pickup availability
333 Dissimilar Steel TIG Wire 1/16"
Couldn't load pickup availability
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
163 Arc-Cut Synthetic Carbon Arc Electrode
Couldn't load pickup availability
Product Description
Dura-Weld Gold has a special Chem-A-Tized2 flux coating that provides the best all-position performance of any steel electrode and allows it to operate at lower amperages. The flux has cleaning agents that remove oxides and contaminates from the weld, including rust, grease and paint… it even welds through water.• Moisture proof flux – guaranteed to never go bad when stored
• Superior all-position weldability with the exclusive Chem-A-Tized2 process
• Welds contaminated steel – less pre-cleaning and weld clean-up
• Very easy to use – practically welds by itself with little or no-spatter
• Tensile strength: Up to 83,000 psi/572 Mpa
• Yield strength: 69,000 psi/476 Mpa
• Elongation: 25%
• Machinability: Excellent
• Hardness: 85 Rb
• Impact: 20 ft-lbs.
• Current: DC or AC
Remove cracked or fatigued metal by grinding or gouging with Arc-Prep #161 electrode. Bevel heavy sections before welding. Use AC or DC current. Use a contact or a minimum arc length with a weave or stringer bead technique. Pass-over-pass can be used without chipping slag in multi-pass welds. Allow to cool slowly.
Technical Specifications
| Item#: | EG10694002 |
|---|---|
| Welding Process | Stick |
| Type | Stick |
| Tensile Strength | 83,000 PSI |
| Yield Strength | 69,000 PSI |
| Base Metal | Mild & Carbon Steel |
| Hardness | 85 HRB |
| Polarity | 25 % |
| Total | 2 lb |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 13.93 lb |
Product Restrictions
