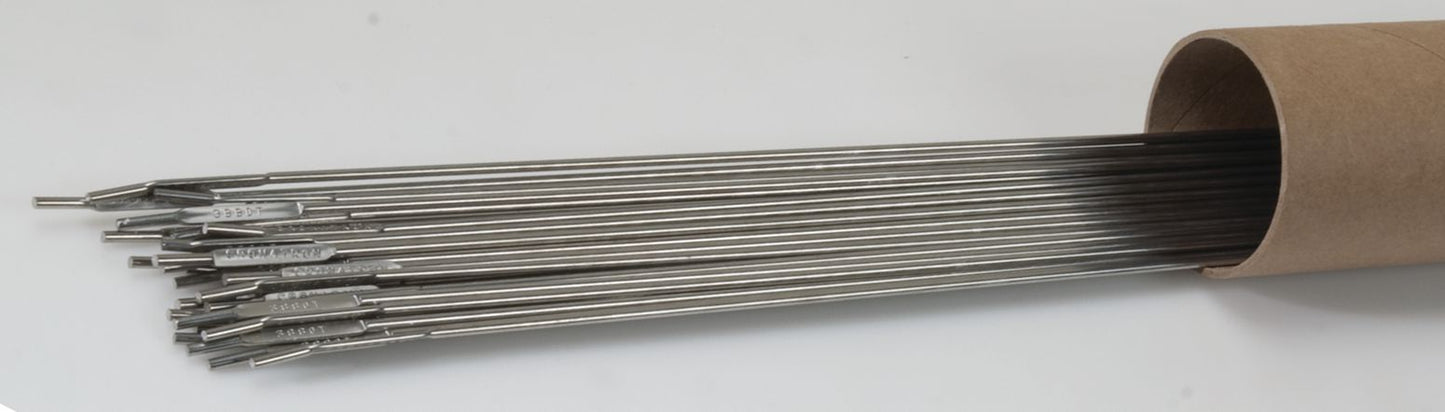

3880 Stainless Steel TIG Wire, 100% Ar Shielding Gas, 42% Elongation, DCSP Polarity, 36" Length, 3/32"
(Pack of
2)
SKU:CW1022 Item#: CW1022
X-ray quality welds, smooth-running in all positions for joining the most common grades of stainless steels including 303, 304, 307, 308, 309, 316, 317 and the low carbon “L” version of these alloys.
Superior Advantages
• Minimal carbide precipitation
• Excellent resistance to corrosion and heat
• All-position welding reduces the need to dismantle equipment
• Easy slag removal saves time
Extra Low Carbon
Tensile Strength: 90,000 PSI
Elongation: Up to 42%
Polarity: DC Straight
Gas: 100% Ar
Typical Applications
• Piping and tubing
• Food and medical processing equipment
• Housings and impellers
• Tanks and vats
Frequently Bought Together
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
E316L-16 Stainless Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
383 Stainless Steel TIG Wire 3/32"
Couldn't load pickup availability
382 Stainless Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
Rosin Core Solder 0.032"
Couldn't load pickup availability
338 Mild/Carbon Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
Rosin Core Solder 1/16"
Couldn't load pickup availability
510 Aluminum MIG Welding Wire 0.035"
Couldn't load pickup availability
331 Mild and Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
333 Dissimilar Steel TIG Wire 3/32"
Couldn't load pickup availability
Product Description
X-ray quality welds, smooth-running in all positions for joining the most common grades of stainless steels including 303, 304, 307, 308, 309, 316, 317 and the low carbon “L” version of these alloys.Superior Advantages
• Minimal carbide precipitation
• Excellent resistance to corrosion and heat
• All-position welding reduces the need to dismantle equipment
• Easy slag removal saves time
Extra Low Carbon
Tensile Strength: 90,000 PSI
Elongation: Up to 42%
Polarity: DC Straight
Gas: 100% Ar
Typical Applications
• Piping and tubing
• Food and medical processing equipment
• Housings and impellers
• Tanks and vats
Technical Specifications
| Item#: | CW1022 |
|---|---|
| Welding Process | TIG |
| Type | Solid |
| Diameter | 3/32 " |
| Length | 36 " |
| Tensile Strength | 90,000 PSI |
| Elongation | 42 % |
| Base Metal | Stainless Steel |
| Shielding Gas | 100% Ar |
| Polarity | DCSP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | No |
| Weight: | 0.5 lb |
