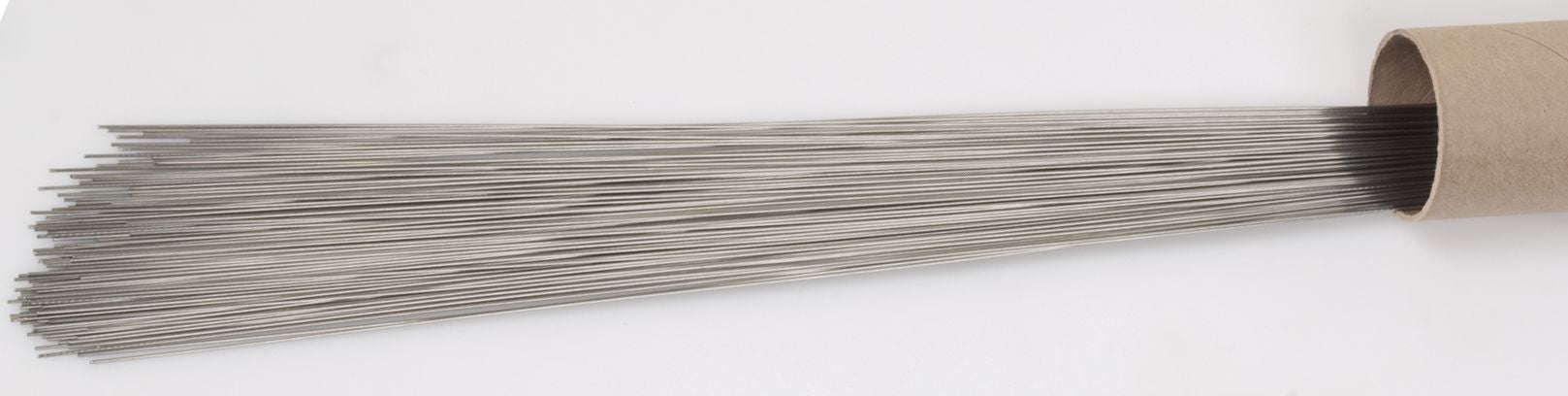

383 Stainless Steel TIG Wire, 100% Ar Shielding Gas, 35% Elongation, DCSP Polarity, 36" Length, 1/16"
(Pack of
2)
SKU:CW5175 Item#: CW5175
Smooth-running, all-position alloys for joining the most common 200 and 300 Series stainless steel. Joins dissimilar grades of stainless including Series 200, 301, 302, 303, 304, 305 and 308 stainless, and CF-8, CF-3, CF-20 and HF castings.
Superior Advantages
• Minimal carbide precipitation
• Excellent corrosion and heat resistance
• All-position welding reduces the need to dismantle equipment
• Easy slag removal saves time
Tensile Strength: 80,000 PSIElongation: 35%Polarity: DC StraightGas: 100% Ar
Typical Applications
• Piping and tubing
• Food and medical processing equipment
• Housings and impellers
• Tanks and vats
Frequently Bought Together
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
3880 Stainless Steel TIG Wire 0.035"
Couldn't load pickup availability
ER308L Stainless Steel MIG Welding Wire 0.045"
Couldn't load pickup availability
3880 Stainless Steel Stick Rod Electrode 1/16"
Couldn't load pickup availability
Rosin Core Solder 1/16"
Couldn't load pickup availability
Oxygen Safety Cap Heavy Duty
Couldn't load pickup availability
Round Soapstone 1/4 x 5"
Couldn't load pickup availability
331 Mild and Carbon Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
106 Mild Steel All Purpose Electrode
Couldn't load pickup availability
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
Product Description
Smooth-running, all-position alloys for joining the most common 200 and 300 Series stainless steel. Joins dissimilar grades of stainless including Series 200, 301, 302, 303, 304, 305 and 308 stainless, and CF-8, CF-3, CF-20 and HF castings.Superior Advantages
• Minimal carbide precipitation
• Excellent corrosion and heat resistance
• All-position welding reduces the need to dismantle equipment
• Easy slag removal saves time
Tensile Strength: 80,000 PSIElongation: 35%Polarity: DC StraightGas: 100% Ar
Typical Applications
• Piping and tubing
• Food and medical processing equipment
• Housings and impellers
• Tanks and vats
Technical Specifications
| Item#: | CW5175 |
|---|---|
| Welding Process | TIG |
| Type | Solid |
| Diameter | 1/16 " |
| Length | 36 " |
| Tensile Strength | 80,000 PSI |
| Elongation | 35 % |
| Base Metal | Stainless Steel |
| Shielding Gas | 100% Ar |
| Polarity | DCSP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | No |
| Weight: | 2.5 lb |
Product Restrictions
