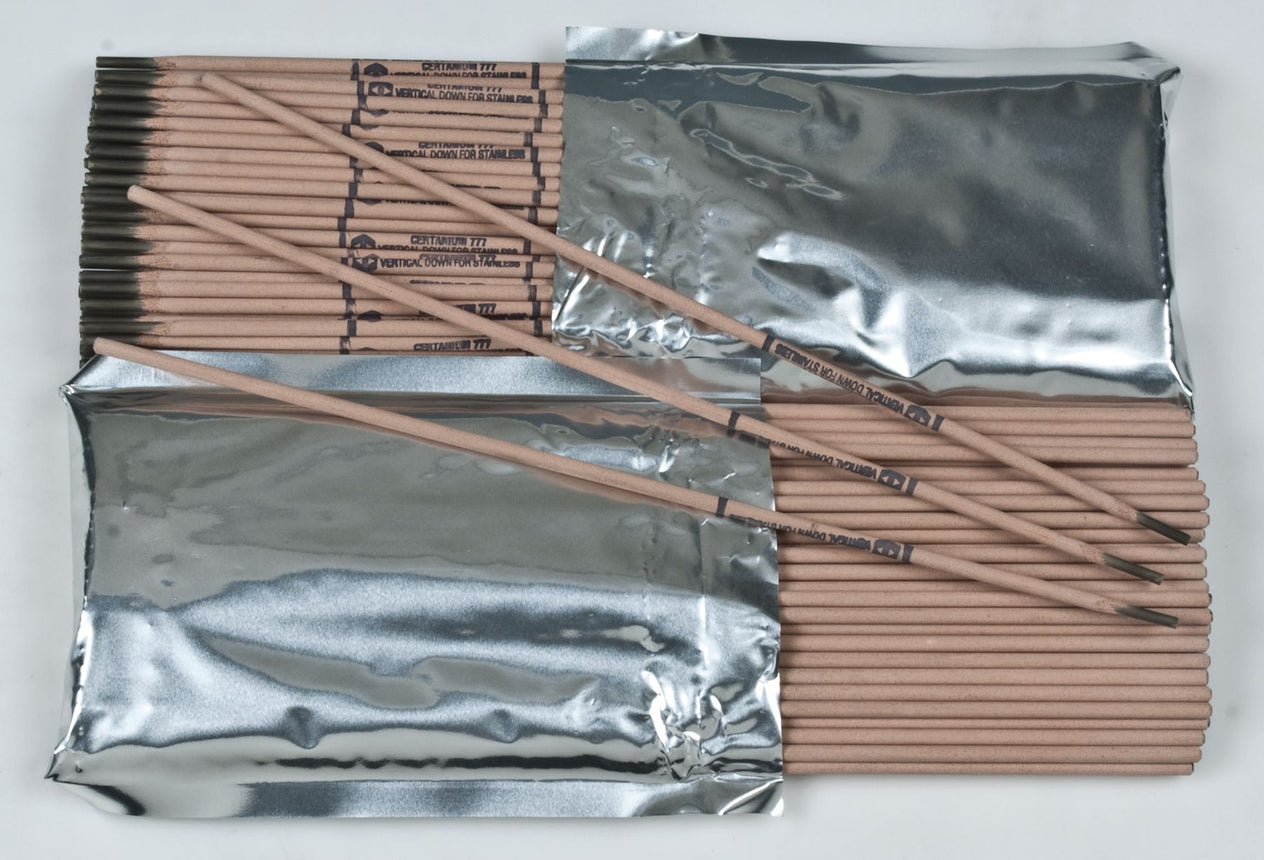

777 Stainless Steel Stick Rod Electrode, 90 to 110 Amps, DCRP/AC Polarity, Excellent Resistance to Corrosion and Heat, 1/8"
(Pack of
10)
SKU:P14079 Item#: P14079
X-ray quality welds, smooth-running in all positions for joining the most common grades of stainless steels including 303, 304, 307, 308, 309, 316, 317 and the low carbon “L” version of these alloys.
Superior Advantages
• Minimal carbide precipitation
• Excellent resistance to corrosion and heat
• All-position welding reduces the need to dismantle equipment
• Easy slag removal saves time
Superior Vertical-down Performance
Tensile Strength: 80,000 PSIYield Strength: 56,000 PSIElongation: 42%Polarity: AC or DC Reverse
Applications
• Piping and tubing
• Food and medical processing equipment
• Housings and impellers
• Tanks and vats
Usage ProcedureUse AC or DC reverse polarity with normal maintenance welding procedures. Surface area should be clean and dry, however, CERTANIUM 777 is manufactured with special cleansing and fluxing agents to promote sound welds under most conditions. For vertical-down welding, hold a short arc and tilt the electrode 10° in the direction of travel, using a stringer bead technique.
Frequently Bought Together
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Cable Tie 11.41" Black
Couldn't load pickup availability
383 Stainless Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
777 Stainless Steel Stick Rod Electrode 3/32"
Couldn't load pickup availability
184T High Nickel Molybendum Multi-Purpose Super Alloy Stick Electrode
Couldn't load pickup availability
TIG Welding Electrode 3/32"
Couldn't load pickup availability
Dissimilar Steel Stick Rod Electrode Kit
Couldn't load pickup availability
X-Tractalloy Extracting Welding Electrode Non-Conductive Flux 3/32
Couldn't load pickup availability
109 High Strength Electrode 1/8
Couldn't load pickup availability
163 Arc-Cut Synthetic Carbon Arc Electrode
Couldn't load pickup availability
E6011 Mild/Carbon Steel Stick Electrode 5/32"
Couldn't load pickup availability
Product Description
X-ray quality welds, smooth-running in all positions for joining the most common grades of stainless steels including 303, 304, 307, 308, 309, 316, 317 and the low carbon “L” version of these alloys.Superior Advantages
• Minimal carbide precipitation
• Excellent resistance to corrosion and heat
• All-position welding reduces the need to dismantle equipment
• Easy slag removal saves time
Superior Vertical-down Performance
Tensile Strength: 80,000 PSIYield Strength: 56,000 PSIElongation: 42%Polarity: AC or DC Reverse
Applications
• Piping and tubing
• Food and medical processing equipment
• Housings and impellers
• Tanks and vats
Usage ProcedureUse AC or DC reverse polarity with normal maintenance welding procedures. Surface area should be clean and dry, however, CERTANIUM 777 is manufactured with special cleansing and fluxing agents to promote sound welds under most conditions. For vertical-down welding, hold a short arc and tilt the electrode 10° in the direction of travel, using a stringer bead technique.
Technical Specifications
| Item#: | P14079 |
|---|---|
| Welding Process | Stick |
| Diameter | 1/8 " |
| Base Metal | Stainless Steel |
| Polarity | DCRP/AC |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 10.5 lb |
