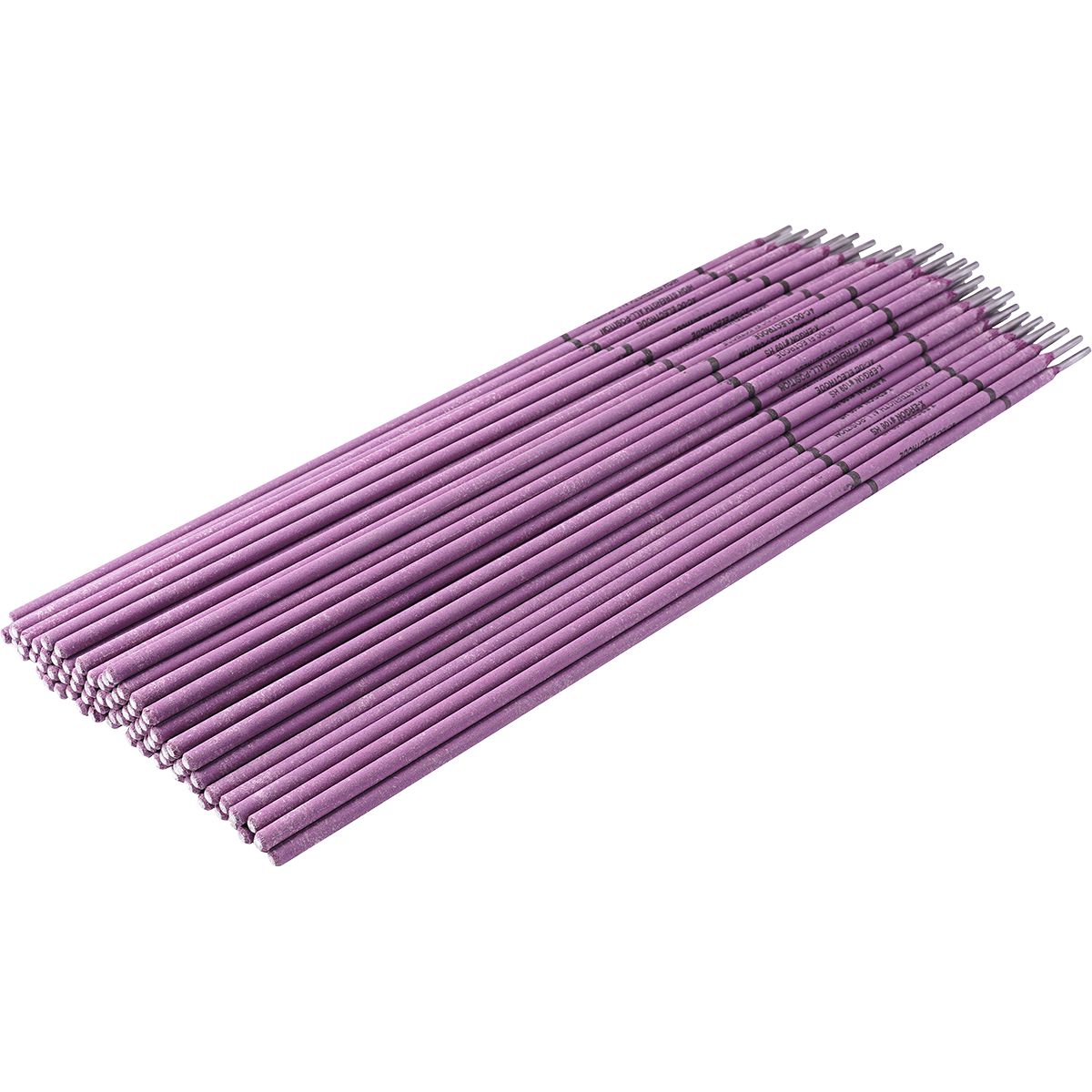

109Hs All Position/Minimal Pre Cleaning/ High Strength/ Polarity Dc/Ac 13%Elongation / Tensile 103000
(Pack of
5)
SKU:EG10940000 Item#: EG10940000
Excellent for thick-to-thin joints with superior all-position welding characteristics when compared to most alloy steel electrodes.
• Minimal Precleaning – Welds through grease, rust, paint, and even steels that have moisture on them
• Dual-Phase – Welding characteristics will change depending on the current used, allowing the welder complete control over the joining process
• Excellent for small AC machines
• Penetrating arc on DC, but soft on AC
• Easy slag removal
• Tensile Strength: 103,000 PSI/710 Mpa
• Yield Strength: 87,000 PSI/600 Mpa
• Hardness: 96 Rb
• Elongation: 13%
• Current: DC or AC
• Machinability: Good
Remove cracked or fatigued metal by grinding or gouging with Arc-Prep #161 electrode. Bevel heavy sections before welding. Use AC or DC current. Use a contact or a minimum arc length with a weave or stringer bead technique. Pass-over-pass can be used without chipping slag in multi-pass welds. Allow to cool slowly.
Frequently Bought Together
106 Mild Steel All Purpose Electrode 1/16
Couldn't load pickup availability
664 Self Shielding Mild Steel Flux Core Mig Wire .035X10LB
Couldn't load pickup availability
660 Mild Steel Flux Core Low Hydrogen Mig Wire 1/16X33Lb
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 5/16-18
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
106 Mild Steel All Purpose Electrode
Couldn't load pickup availability
E7018 Mild/Carbon Steel Stick Electrode 5/32"
Couldn't load pickup availability
606 Duraweld M Mig Wire Maintenance Grade Mild Steel Solid Mig Wire
Couldn't load pickup availability
331 Mild and Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
102 Tuff Plus High Strength Mild Steel Electrode 1/8
Couldn't load pickup availability
Product Description
Excellent for thick-to-thin joints with superior all-position welding characteristics when compared to most alloy steel electrodes.• Minimal Precleaning – Welds through grease, rust, paint, and even steels that have moisture on them
• Dual-Phase – Welding characteristics will change depending on the current used, allowing the welder complete control over the joining process
• Excellent for small AC machines
• Penetrating arc on DC, but soft on AC
• Easy slag removal
• Tensile Strength: 103,000 PSI/710 Mpa
• Yield Strength: 87,000 PSI/600 Mpa
• Hardness: 96 Rb
• Elongation: 13%
• Current: DC or AC
• Machinability: Good
Remove cracked or fatigued metal by grinding or gouging with Arc-Prep #161 electrode. Bevel heavy sections before welding. Use AC or DC current. Use a contact or a minimum arc length with a weave or stringer bead technique. Pass-over-pass can be used without chipping slag in multi-pass welds. Allow to cool slowly.
Technical Specifications
| Item#: | EG10940000 |
|---|---|
| Welding Process | Stick |
| Type | Stick |
| Diameter | 1/8 " |
| Tensile Strength | 103,000 PSI |
| Elongation | 13 % |
| Base Metal | Mild And Medium Carbon Steel |
| Hardness | 96 HRB |
| Polarity | DCRP/AC |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 6.26 lb |
