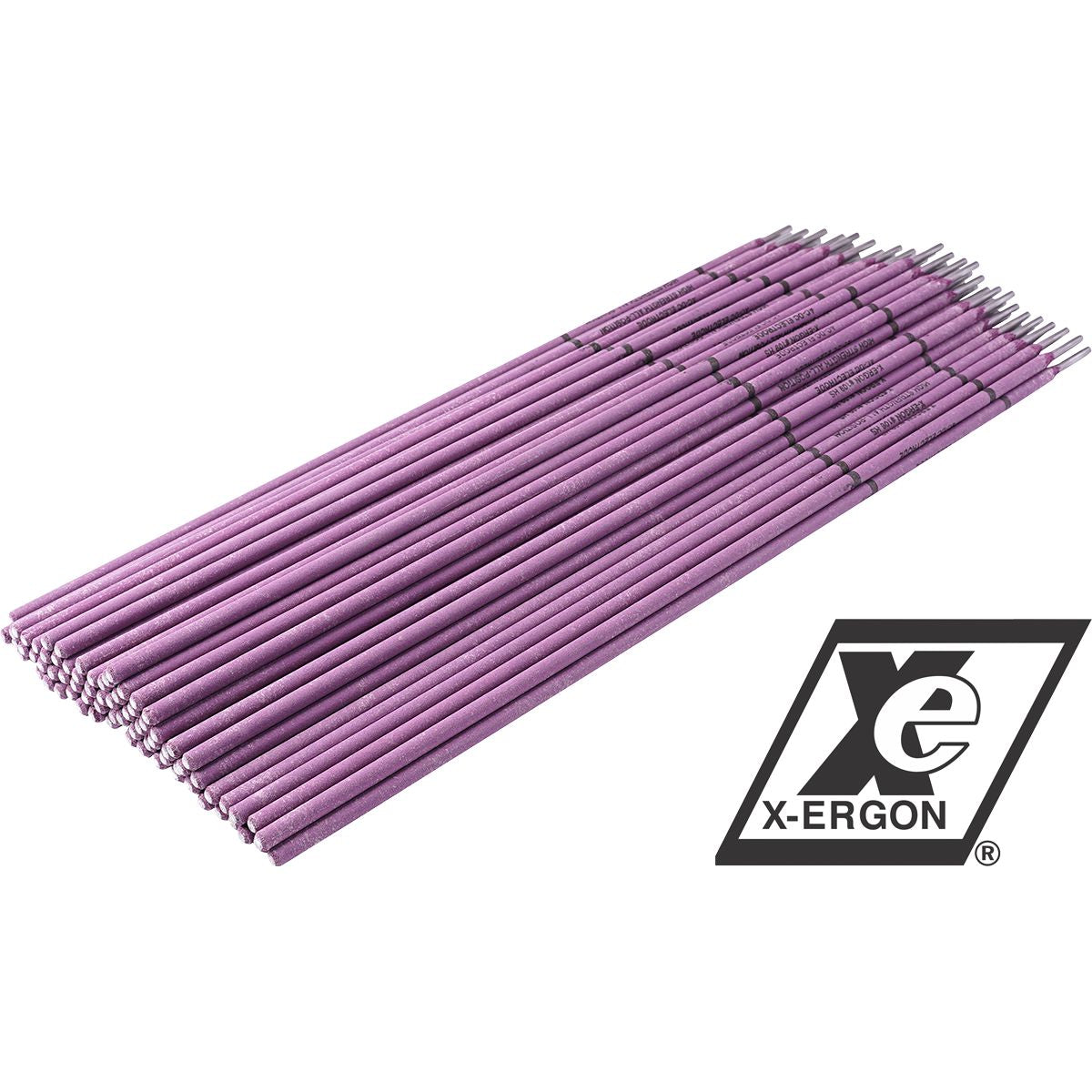

109Hs All Position/Minimal Pre Cleaning/ High Strength/ Polarity Dc/Ac 13%Elongation / Tensile 103000
(Pack of
5)
Excellent for thick-to-thin joints with superior all-position welding characteristics when compared to most alloy steel electrodes.
• Minimal Precleaning – Welds through grease, rust, paint, and even steels that have moisture on them
• Dual-Phase – Welding characteristics will change depending on the current used, allowing the welder complete control over the joining process
• Excellent for small AC machines
• Penetrating arc on DC, but soft on AC
• Easy slag removal
• Tensile Strength: 103,000 PSI/710 Mpa
• Yield Strength: 87,000 PSI/600 Mpa
• Hardness: 96 Rb
• Elongation: 13%
• Current: DC or AC
• Machinability: Good
Remove cracked or fatigued metal by grinding or gouging with Arc-Prep #161 electrode. Bevel heavy sections before welding. Use AC or DC current. Use a contact or a minimum arc length with a weave or stringer bead technique. Pass-over-pass can be used without chipping slag in multi-pass welds. Allow to cool slowly.
Frequently Bought Together
102 High Strength Steel Electrode 1/4
Couldn't load pickup availability
103 The Ultimate Low Hydrogen Mild Steel Electrode 5/32
Couldn't load pickup availability
107 Mild Steel High Penetration Low Alloy Electrode 1/8"
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
345 Tool Steel TIG Wire 3/32"
Couldn't load pickup availability
510 Aluminum TIG Wire 1/16"
Couldn't load pickup availability
X-Tractalloy Welding Electrode Non-Conductive Flux 3/32 5/64
Couldn't load pickup availability
338 Mild/Carbon Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
E6010 Mild/Carbon Steel Stick Electrode 1/8"
Couldn't load pickup availability
3880 Stainless Steel TIG Wire 3/32"
Couldn't load pickup availability
Product Description
Excellent for thick-to-thin joints with superior all-position welding characteristics when compared to most alloy steel electrodes.• Minimal Precleaning – Welds through grease, rust, paint, and even steels that have moisture on them
• Dual-Phase – Welding characteristics will change depending on the current used, allowing the welder complete control over the joining process
• Excellent for small AC machines
• Penetrating arc on DC, but soft on AC
• Easy slag removal
• Tensile Strength: 103,000 PSI/710 Mpa
• Yield Strength: 87,000 PSI/600 Mpa
• Hardness: 96 Rb
• Elongation: 13%
• Current: DC or AC
• Machinability: Good
Remove cracked or fatigued metal by grinding or gouging with Arc-Prep #161 electrode. Bevel heavy sections before welding. Use AC or DC current. Use a contact or a minimum arc length with a weave or stringer bead technique. Pass-over-pass can be used without chipping slag in multi-pass welds. Allow to cool slowly.
Technical Specifications
| Item#: | EG10950000 |
|---|---|
| Welding Process | Stick |
| Type | Stick |
| Diameter | 3/32 " |
| Tensile Strength | 103,000 PSI |
| Elongation | 13 % |
| Base Metal | Mild And Medium Carbon Steel |
| Hardness | 96 HRB |
| Polarity | DCRP/AC |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 6.0 lb |
