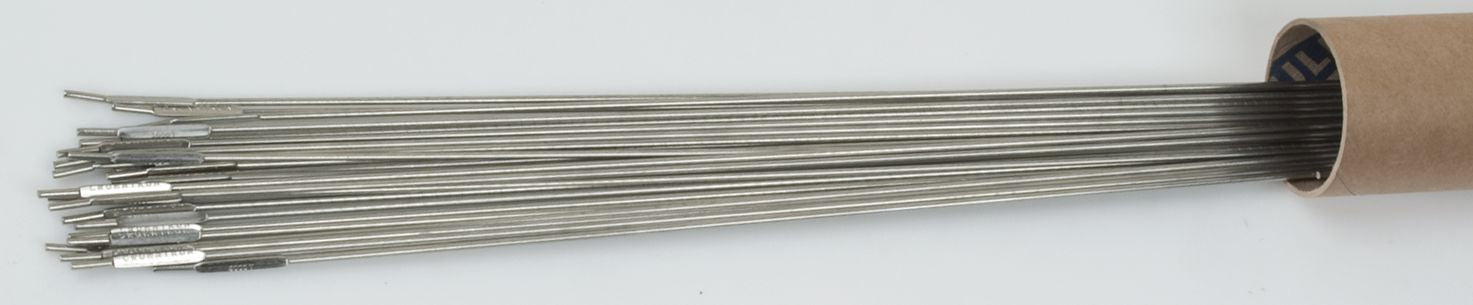

383 Stainless Steel TIG Wire, 100% Ar Shielding Gas, 35% Elongation, DCSP Polarity, 36" Length, 3/32"
(Pack of
2)
SKU:CW5176 Item#: CW5176
Smooth-running, all-position alloys for joining the most common 200 and 300 Series stainless steel. Joins dissimilar grades of stainless including Series 200, 301, 302, 303, 304, 305 and 308 stainless, and CF-8, CF-3, CF-20 and HF castings.
Superior Advantages
• Minimal carbide precipitation
• Excellent corrosion and heat resistance
• All-position welding reduces the need to dismantle equipment
• Easy slag removal saves time
Tensile Strength: 80,000 PSI
Elongation: 35%
Polarity: DC Straight
Gas: 100% Ar
Typical Applications
• Piping and tubing
• Food and medical processing equipment
• Housings and impellers
• Tanks and vats
Frequently Bought Together
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
184T High Nickel Molybendum Multi-Purpose Super Alloy Stick Electrode
Couldn't load pickup availability
184T High Nickel Molybendum Tig Wire 5/32X36
Couldn't load pickup availability
3000 Nickel Stick Rod Electrode 3/32"
Couldn't load pickup availability
Round Soapstone Holder Heavy Duty
Couldn't load pickup availability
Round Soapstone 1/4 x 5"
Couldn't load pickup availability
510 Aluminum Stick Rod Electrode 1/8"
Couldn't load pickup availability
333 Dissimilar Steel TIG Wire 1/8"
Couldn't load pickup availability
344 Tool Steel TIG Wire 1/16"
Couldn't load pickup availability
Dissimilar Steel Stick Rod Electrode Kit
Couldn't load pickup availability
Product Description
Smooth-running, all-position alloys for joining the most common 200 and 300 Series stainless steel. Joins dissimilar grades of stainless including Series 200, 301, 302, 303, 304, 305 and 308 stainless, and CF-8, CF-3, CF-20 and HF castings.Superior Advantages
• Minimal carbide precipitation
• Excellent corrosion and heat resistance
• All-position welding reduces the need to dismantle equipment
• Easy slag removal saves time
Tensile Strength: 80,000 PSI
Elongation: 35%
Polarity: DC Straight
Gas: 100% Ar
Typical Applications
• Piping and tubing
• Food and medical processing equipment
• Housings and impellers
• Tanks and vats
Technical Specifications
| Item#: | CW5176 |
|---|---|
| Welding Process | TIG |
| Type | Solid |
| Diameter | 3/32 " |
| Length | 36 " |
| Tensile Strength | 80,000 PSI |
| Elongation | 35 % |
| Base Metal | Stainless Steel |
| Shielding Gas | 100% Ar |
| Polarity | DCSP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | No |
| Weight: | 2.5 lb |
