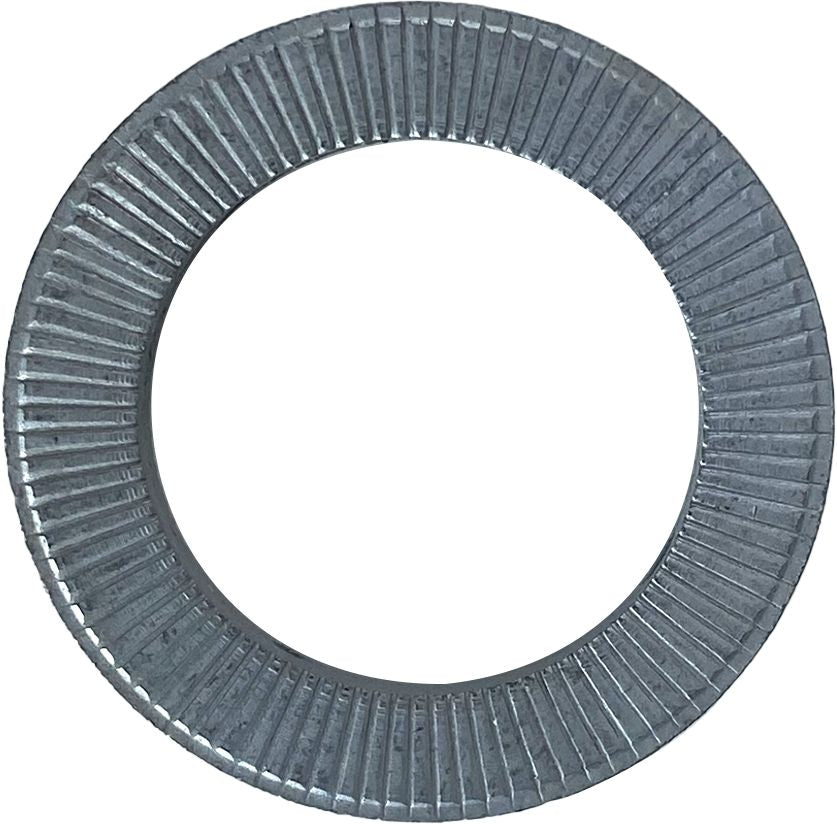

7/8 22mm Standard Anti-Vibration Serated Self Lock Washer
(Pack of
4)
SKU:DY03683500 Item#: DY03683500
• Self-locking design creates a wedge under the bolt head or nut that maintains clamp load, prevents unintentional loosening, and secures bolted joints even when exposed to dynamic loads and severe vibration
• Vibration proof according to MIL-STD-1312-7/NASM-1312-7
• Resists loosening due to vibration more effectively than split lock washers or nylon insert lock nuts
• Pre-assembled glued pairs are easy to use and can be installed and removed with standard tools
• Extremely versatile - can be used with blind, through and counterbore holes
• Special Delta Protekt® coating is RoHS compliant and provides better corrosion resistance than traditional zinc
• For use with up to Grade 8, Class 12.9 fasteners
Frequently Bought Together
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
Lock Washer Alloy Steel 1/2"
Couldn't load pickup availability
Jacketed Parallel Primary Wire 14 AWG 2C 100'
Couldn't load pickup availability
Jacketed Parallel Primary Wire 16 AWG 2C 100'
Couldn't load pickup availability
Cross Linked Primary Wire 16 AWG 100' Black
Couldn't load pickup availability
Nylon Cable Tie 8" Black
Couldn't load pickup availability
Nylon Cable Tie 15.25" Black
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Comfort Grip Ergonomic Jumbo Awl, 4 pc Hook & Pick Set
Couldn't load pickup availability
11Pc Lock and Load Hammer Set
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Comfort Grip Ergonomic Jumbo Awl, 4 pc Hook & Pick Set
Couldn't load pickup availability
11Pc Lock and Load Hammer Set
Couldn't load pickup availability
Product Description
• Self-locking design creates a wedge under the bolt head or nut that maintains clamp load, prevents unintentional loosening, and secures bolted joints even when exposed to dynamic loads and severe vibration• Vibration proof according to MIL-STD-1312-7/NASM-1312-7
• Resists loosening due to vibration more effectively than split lock washers or nylon insert lock nuts
• Pre-assembled glued pairs are easy to use and can be installed and removed with standard tools
• Extremely versatile - can be used with blind, through and counterbore holes
• Special Delta Protekt® coating is RoHS compliant and provides better corrosion resistance than traditional zinc
• For use with up to Grade 8, Class 12.9 fasteners
Technical Specifications
| Item#: | DY03683500 |
|---|---|
| Nominal Size | 7/8" (M22) |
| Type | Self-Locking Lock Washer |
| Material | Carbon Steel |
| I.D. | 0.92 " |
| O.D. | 1.36 " |
| Finish | Delta Protekt® |
| Thickness | 0.13 " |
| Quantity Per Package | 4.0000 |
| UNSPSC #: | 31161801 |
| TAA Compliant: | No |
| Weight: | 0.15 lb |
