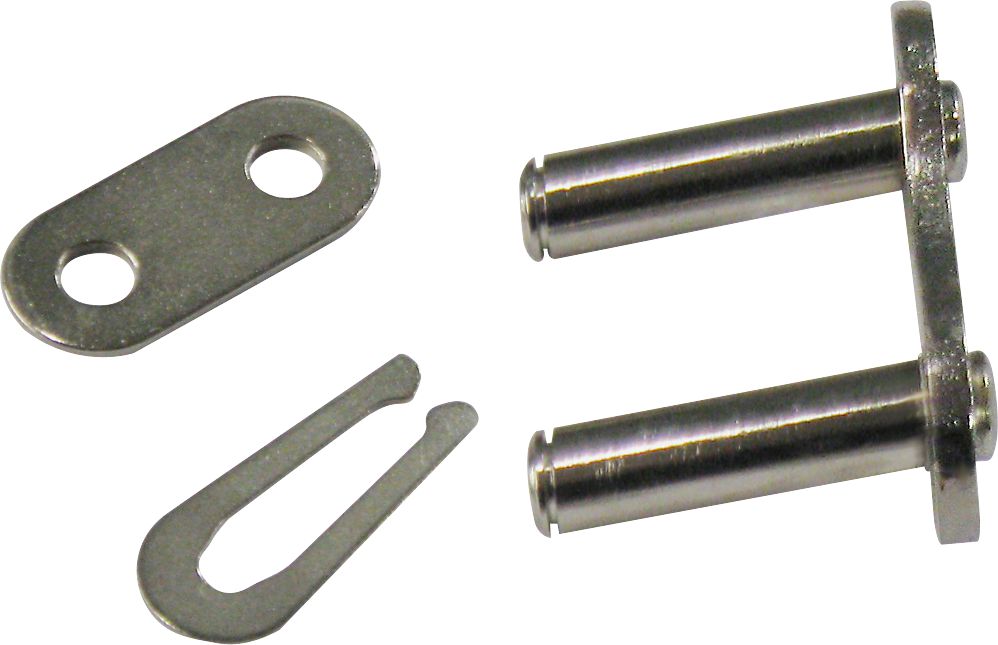

Connecting Link, Single Strand, Steel, Nickel Plated, Industry No. 40
(Pack of
5)
Nickel-plated chain provides increased corrosion resistance. In applications where chain is exposed to the possibility of hydrogen brittlement caused by acid vapor or salty environment, nickel plating delays the corrosive effect on the chain.
Frequently Bought Together
Connecting Link, Double Pitch-Conveyor, Steel, Industry No. C2050
Item#: 1443604
Couldn't load pickup availability
Connecting Link, Single Strand, Steel, Industry No. 25
Item#: 1593441
Couldn't load pickup availability
Offset Link (Half Link), Single Strand, Sintered Bushing, Steel, Indus
Item#: 1443478
Couldn't load pickup availability
Wire Rope, Steel, Vinyl Coated, 7x7, 1/16", 480 lbs Breaking Strength
Item#: 1439135
Couldn't load pickup availability
Wire Rope, Steel, Bare, 7x7, 1/16", 480 lbs Breaking Strength
Item#: 1439713
Couldn't load pickup availability
Wire Rope, Steel, Nylon Coated, 7x7, 1/16", 480 lbs Breaking Strength
Item#: 1439061
Couldn't load pickup availability
Roller Chain, Single Strand, Steel, Industry No. 80
Item#: 85359
Couldn't load pickup availability
Roller Chain, Single Strand, Steel, Industry No. 35
Item#: 85354
Couldn't load pickup availability
Roller Chain, Single Strand, Sintered Bushing, Steel, Industry No. 60
Item#: 1443432
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Item#: 84931
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Item#: 2539
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Item#: A530
Couldn't load pickup availability
Product Description
Nickel-plated chain provides increased corrosion resistance. In applications where chain is exposed to the possibility of hydrogen brittlement caused by acid vapor or salty environment, nickel plating delays the corrosive effect on the chain.Technical Specifications
| Item#: | 1443368 |
|---|---|
| Configuration | Connecting Link |
| Type | Single Strand |
| Style | Standard |
| Material | Steel |
| Finish | Nickel Plate |
| Industry Number | 40 |
| Pitch | 1/2 " |
| Roller Width | 0.313 " |
| Roller Diameter | 0.312 " |
| Plate Thickness | 0.059 " |
| Plate Height | 0.472 " |
| Minimum Tensile Strength | 3,520 lb |
| Average Tensile Strength | 4,290 lb |
| Maximum Load | 836 lb |
| UNSPSC #: | 31163027 |
| TAA Compliant: | Yes |
| Weight: | 0.1 lb |
