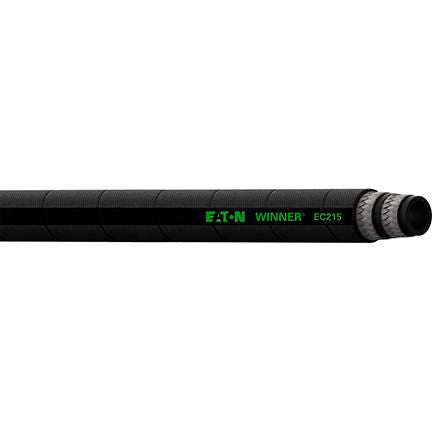

EC215 Winner Hydraulic Hose, Synthetic Rubber, 2-Steel Braided, 3/8" ID, 0.69" OD, 50' Length, 4800PSI, EN 857 Type 2SC
(Pack of
50)
SKU:1561377 Item#: 1561377
• Agency Ratings: Meets EN 857 2SC
• Fittings Certified: Z-Series
• Agency Approval: MSHA, USCG and DNV
• Construction:
– Inner Tube: Nitrile
– Reinforcement: Two steel braids
– Cover: Nitrile
• Operating Temperature Range: –40°F to +212°F (–40°C to +100°C)
• Application Notes: Hydraulic system service with petroleum and water-based fluids, for general industrial service.
Frequently Bought Together
Kurt Tuff Xtra-Flex High Pressure Hydraulic Hose, 50 Foot
Couldn't load pickup availability
Kurt Tuff Xtra-Flex High Pressure Hydraulic Hose, 50 Foot
Couldn't load pickup availability
Weatherhead H290 Hydraulic Hose 0.75" x 250'
Couldn't load pickup availability
KH Series Crimp-On Coupling 1/2" x 1-1/16-12
Couldn't load pickup availability
Hydraulic Cap Nut, 1-5/16-12"(16) Female JIC SAE 37 Degree Flare
Couldn't load pickup availability
Face Seal O-Ring Buna-N 0.364 x 0.07"
Couldn't load pickup availability
DOT Elbow Male Nylon 1/4 x 1/4-18
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/4-18
Couldn't load pickup availability
Pipe Street Elbow Brass 45° 3/8-18 x 3/8-18
Couldn't load pickup availability
SAE R2S Hydraulic Hose Rubber 1.15" x 220'
Couldn't load pickup availability
EC215 Winner Hydraulic Hose Rubber 0.94" x 50'
Couldn't load pickup availability
Weatherhead H290 Hydraulic Hose 0.88" x 250'
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 5/16-18
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Product Description
• Agency Ratings: Meets EN 857 2SC• Fittings Certified: Z-Series
• Agency Approval: MSHA, USCG and DNV
• Construction:
– Inner Tube: Nitrile
– Reinforcement: Two steel braids
– Cover: Nitrile
• Operating Temperature Range: –40°F to +212°F (–40°C to +100°C)
• Application Notes: Hydraulic system service with petroleum and water-based fluids, for general industrial service.
Technical Specifications
| Item#: | 1561377 |
|---|---|
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Industry Rating 1 | EN 857 2SC |
| Industry Rating | MSHA, USCG and DNV |
| Manufacturer Series Number | EC215 |
| I.D. | 3/8 (-6) " |
| Hose O.D. | 0.69 " |
| Working Pressure | 5,000 PSI |
| Burst Pressure | 20,000 PSI |
| Fitting Series | Z Series |
| Bend Radius | 2.56 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 2 Steel Braids |
| Hose Cover Material | Nitrile |
| Minimum Temperature | -40 F |
| Maximum Temperature | 212 F |
| Length | 50 ft |
| Dash Size | -6 |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
| Weight: | 15.0 lb |
Product Restrictions
